Woom Woom NOW 5 (Gen. C) | Urban Lifestyle Bike | Ages 7-11

Information

The bike revolution by woom – our fully equipped urban lifestyle bike with a front rack and innovative frame design (20″ front wheel, 24″ rear wheel) for riders aged seven and up.

Frame

• Frame material: lightweight, high-quality 6061 aluminium with butted tubes
• Wheel size: 20″ front, 24″ rear
• Agile handling: The low centre of gravity created by the smaller front wheel and the upright riding position ensure great balance, stable and confident handling, good vision on the road and a fun ride (even when loaded with a heavy school bag up front)

Rack

• Specially developed, frame-mounted aluminium front rack engineered for stable handling, even when heavily loaded
• Integrated strap with easy-to-use clasp
• Maximum steering clearance thanks to the special bracket that pushes any tall luggage forwards
• Removable soft plastic inlay keeps loose straps away from the wheel
• Lower section that can be folded up
• Mounts for two accessories (one on either side), e.g. bottle cage or folding bike lock
• Maximum load 10 kg (22 lbs)
• Dimensions: depth 203 mm x width 274 mm x height 291 mm (Not to be understood as maximum permissible laden weight. When loaded correctly, these figures can be exceeded – especially in terms of height, providing the rider has checked they have sufficient steering clearance before riding.)

Equipped for the urban environment

• Bar-mounted twist-grip bike bell lets you keep your hand safely on the bars

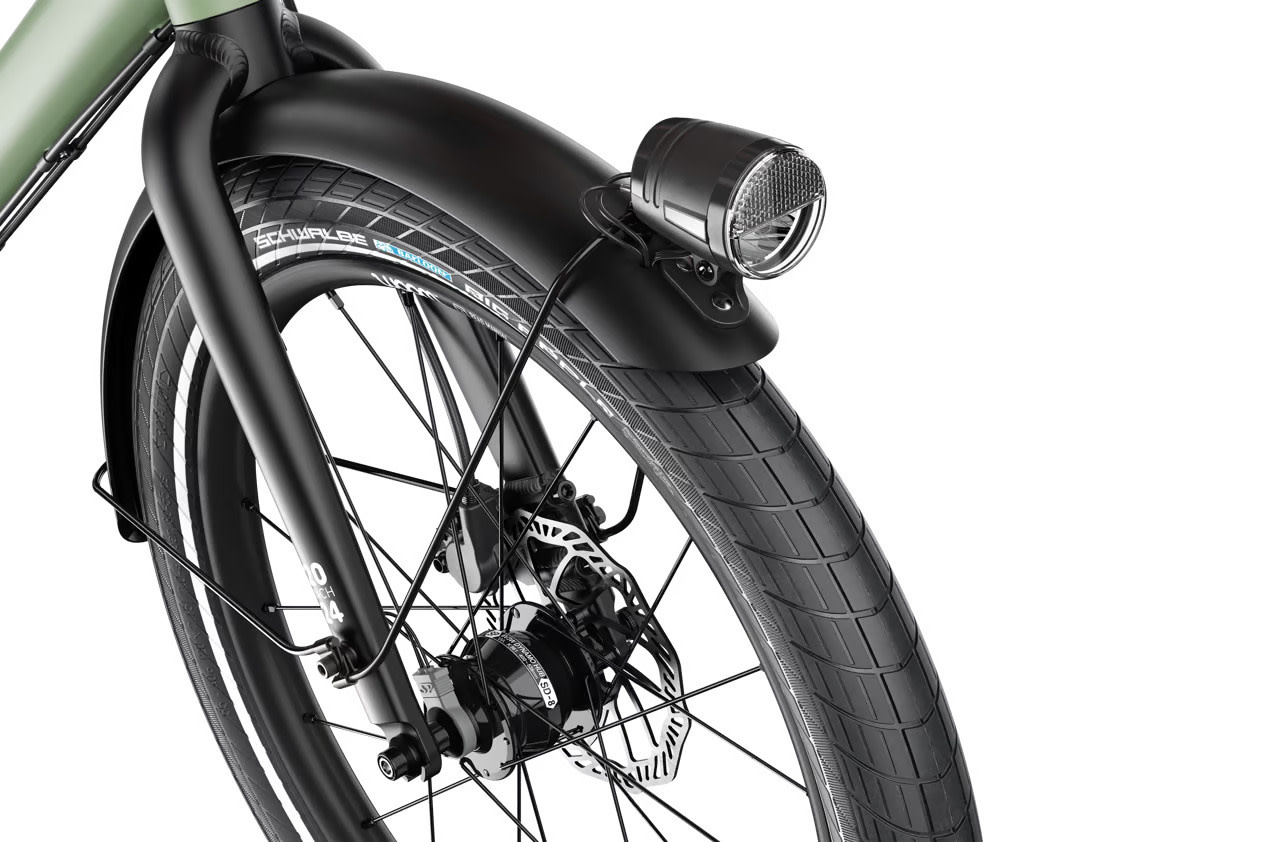

• Non-removable, powerful LED lights (white front, red rear) powered by premium Shutter Precision SD-8 hub dynamo
• Integrated reflectors in both front and rear lights with excellent reflectivity values

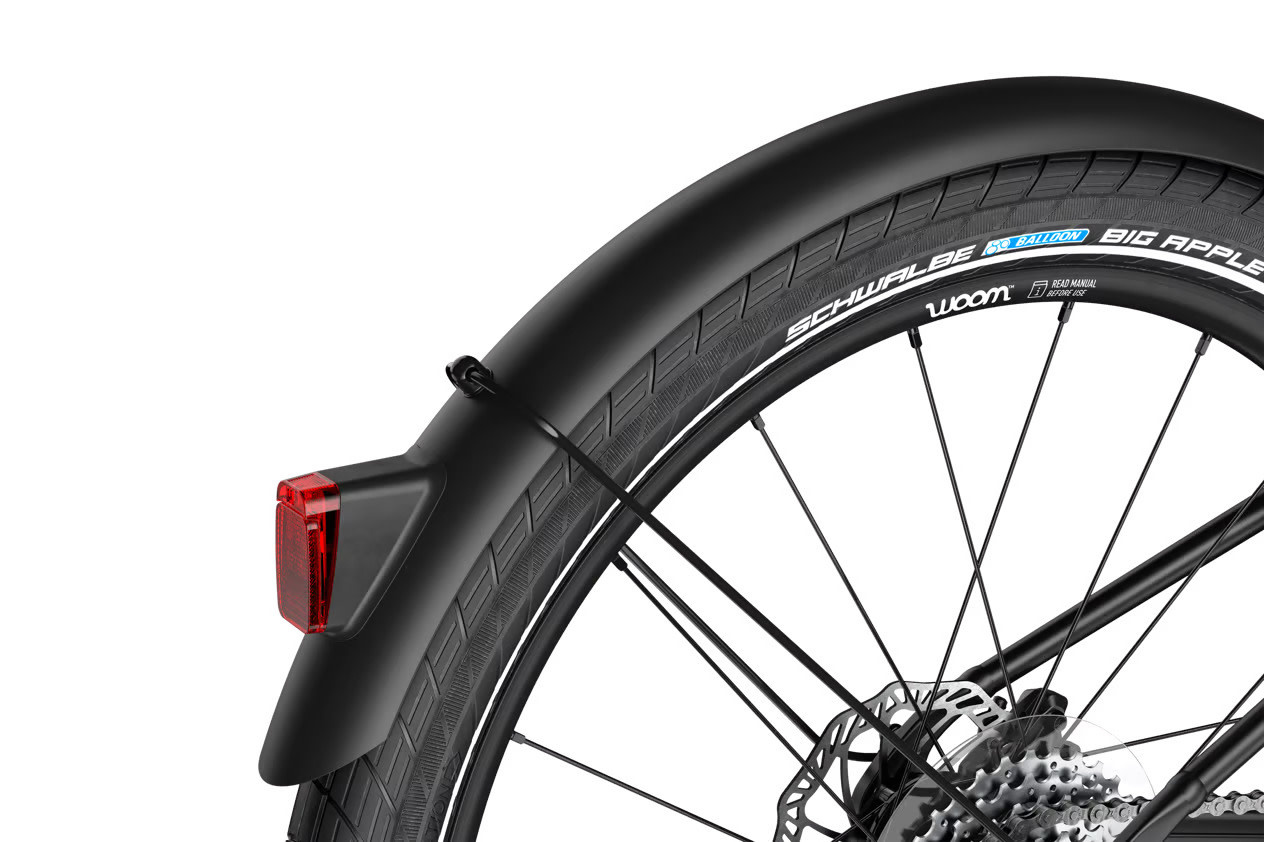

• Wide, durable mudguards with hard-wearing stainless steel stays for dependable protection against dirt and road spray
• Anti-slip plastic platform pedals with integrated yellow reflectors

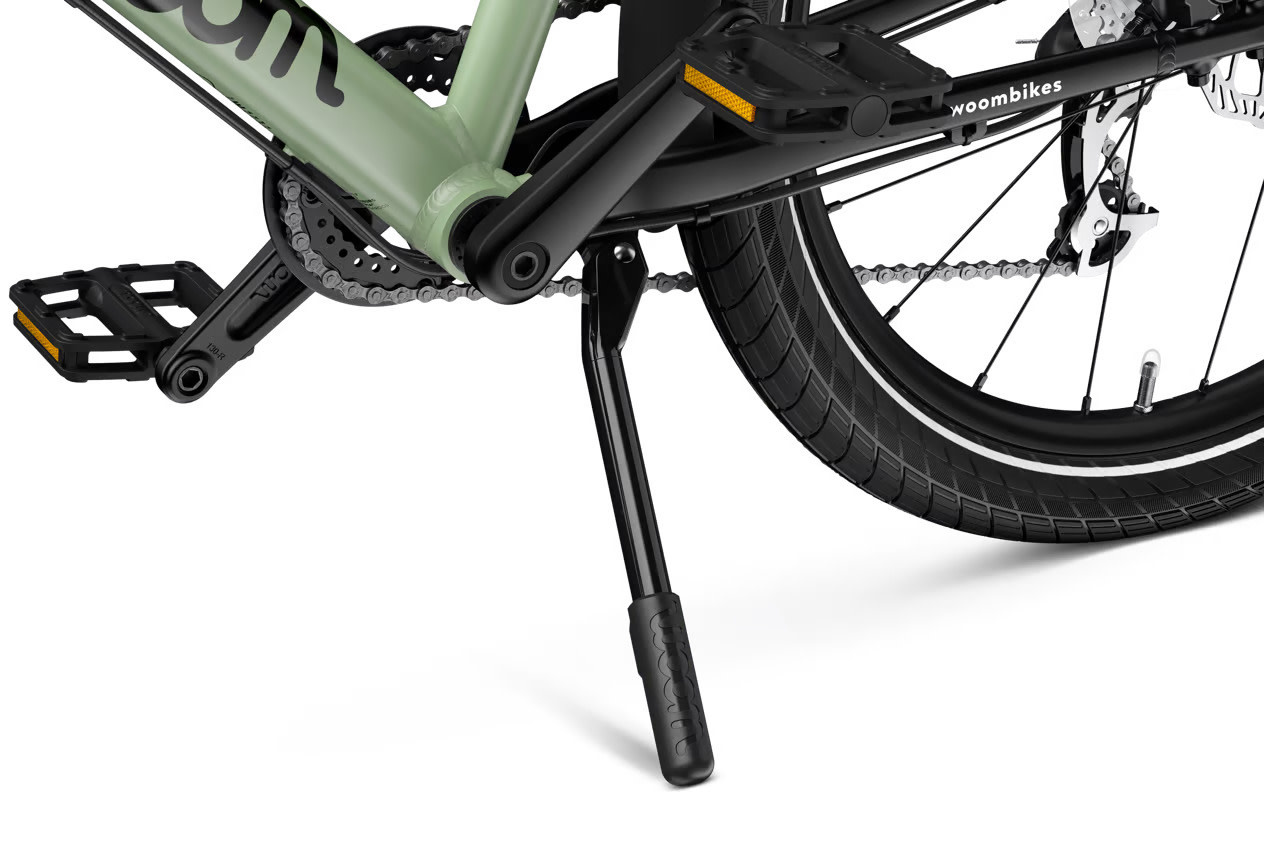

• Robust, mid-mounted, easy-to-use aluminium kickstand

Gears

• 8 speeds
• microSHIFT DS85-8 twist shifter
• microSHIFT M26S rear derailleur

Fork

• Lightweight aluminium unicrown fork
• 1 1/8″ steerer tube
• Optimised trail angle for agile handling with a heavy load
• Flat mount for disc brake

Wheels

• Lightweight aluminium rims
• Front: Shutter Precision SD-8 hub dynamo, bolt-on skewer to prevent theft
• Rear: aluminium hub with sealed industrial-grade bearings
• 20 stainless steel spokes on the front and rear wheel, double-crossed spoking

Headset

• Integrated 1 1/8″ headset
• Sealed industrial-grade bearings
• Integrated Ahead plug

Tyres

• Schwalbe Big Apple balloon tyres with RaceGuard puncture protection
• 20″ x 2.15″ folding tyre at the front/24″ x 2.15″ folding tyre at the rear
• Premium, extra-wide tyres with natural cushioning due to the large volume air cushion
• Car-type valves allow the tyres to be pumped up at petrol stations (where permitted)
• Reflective stripes on the sides of the tyres for optimal visibility even in low-light conditions

Stem

• Superlight stem made out of forged aluminium
• 40 mm/+15°
• The recessed clamp bolts and the sleek, rounded design make the stem extremely knee-friendly
• Two hexagon socket bolts attaching handlebars to stem
• With star nut and locking bolt

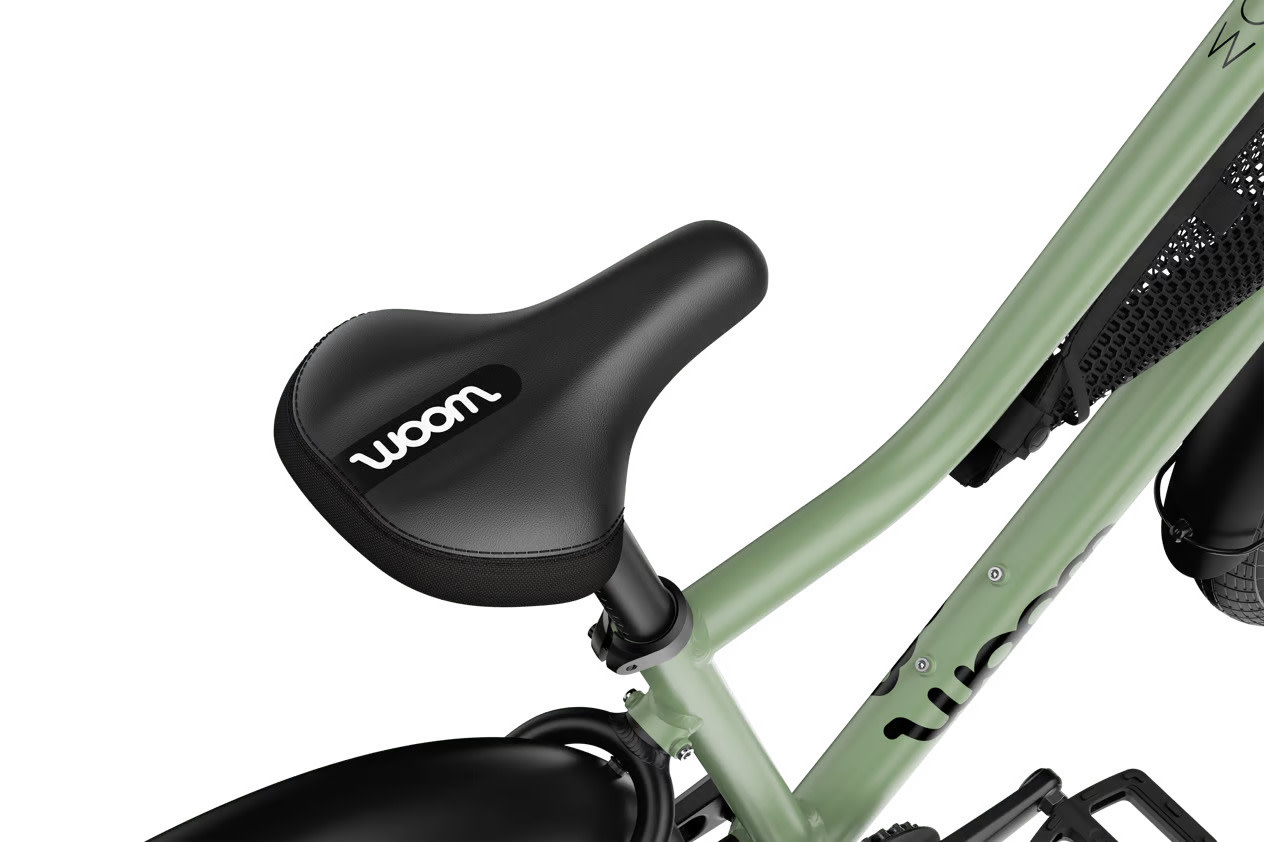

Saddle

• Ultra-comfy
• Ergonomically shaped for kids
• No sponge effect
• Anti-abrasion material on the sides

Handlebars

• Wide, ergonomic and lightweight aluminium bars with 15° backsweep for control and a comfy, natural-feeling arm position -
• Sandblasted and anodised in black
• Width: 600 mm
• Rise: 34 mm

Seatpost

• Anodised aluminium seatpost with insertion marks that indicate the minimum insertion depth and current saddle position

Grips

• woom Ergogrips with a small, child-friendly diameter
• Ergonomically shaped
• Handlebar ends with extra-large diameter for greater protection
• Lock-on design for secure attachment to the handlebar

Seatpost clamp

• Aluminium bolt-on seatpost clamp to stop the saddle being stolen
• No risk of turning and/or twisting

Drive

• Lightweight, forged 130 mm aluminium cranks with narrow tread (Q-factor)
• Narrow-wide chainring with 28 teeth
• Cassette with 11–32 teeth
• Narrow plastic platform pedals with integrated yellow reflectors
• Sealed cartridge bearings

Brakes

• Flat mount hydraulic disc brakes from Promax or similar (depending on availability)
• Disc diameter front/back: 140/140 mm
• Ergonomic brake lever designed for children's hands
• Rear disc brakes well protected within the frame to prevent unwitting damage from knocks and bumps when on a busy bike stand or leaning against objects

Enclosed tools

• Hex keys (3 mm, 4 mm, 5 mm) for stem, seatpost, wheels etc.
• 15 mm spanner for pedals
