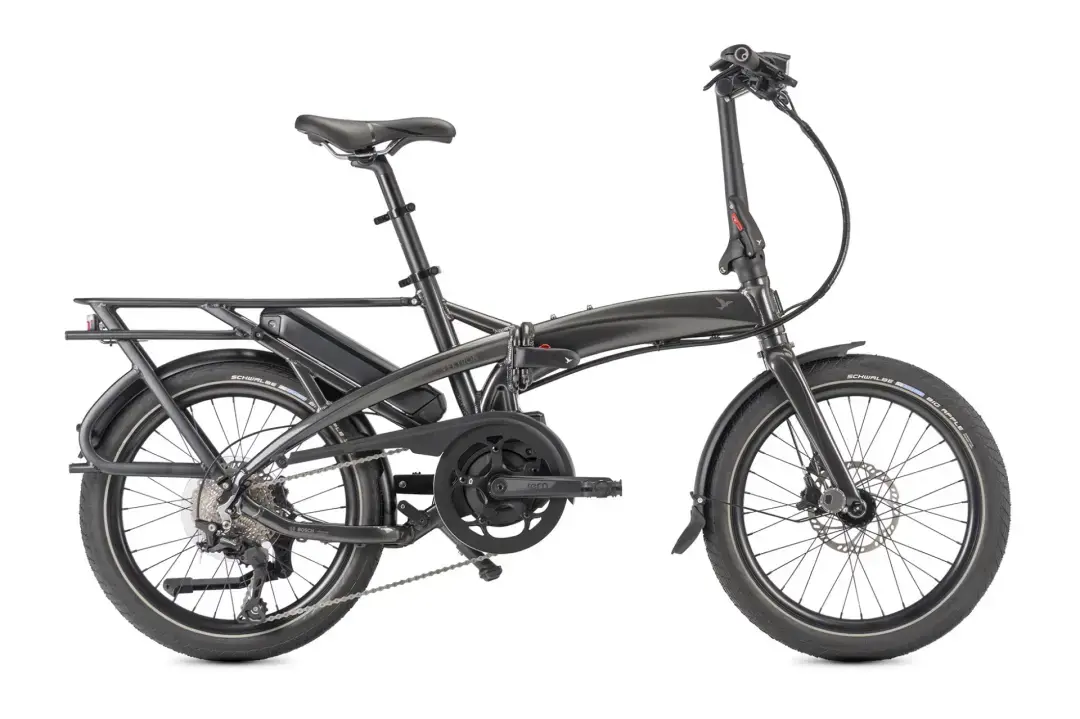

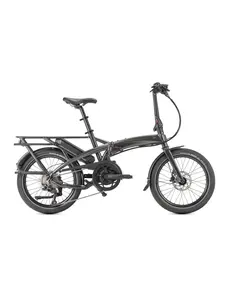

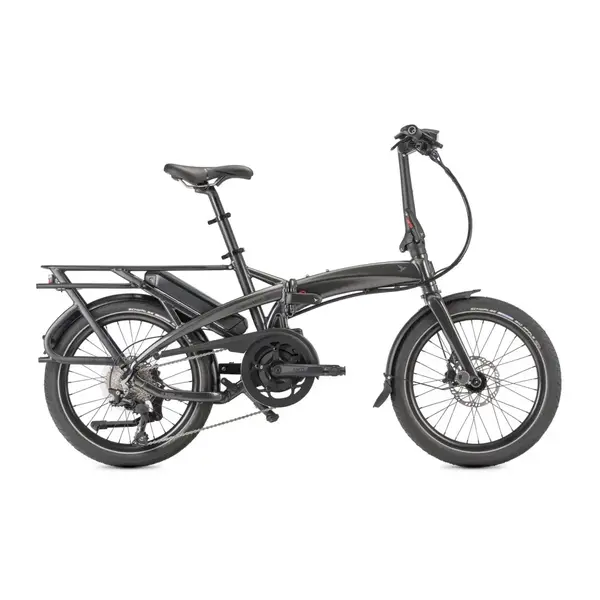

Tern Vektron P10 Electric Folding Bike Cosmic Black
Information
With a rigid frame and handlepost that minimize flex, dialed-in geometry, and best-in-class Bosch drivetrain, the Vektron delivers exceptional ride quality that's hard to match among folding bikes—confident, stable, and effortlessly smooth. Meanwhile, those seeking a quieter, cleaner ride with less upkeep will appreciate the belt drive and internal gear hub options.
Frame: Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork: Tern Tarsus, 6061-Al, hydroformed
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar: Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
Seatpost: Tern Telescope, 34.9/30.9 mm
Seatpost Clamp: Tern Collar
Front Brake: Magura MT4, hydraulic disc
Rear Brake: Magura MT4, hydraulic disc
Brake Levers: Magura, hydraulic disc
Brake Cable & Housing: Magura, hydraulic disc
Front Hub: Novatec, sealed cartridge bearing, disc
Rear Hub: Novatec, sealed cartridge bearing, disc
Spokes & Nipples: Stainless steel, double-butted
Rims: Kinetix Comp, for disc
Tires: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Shifter: Shimano Deore, 1 x 10 spd
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern custom, forged 6061-AL crankarm
Cassette/Freewheel: Shimano 11-36T, 10 spd
Bottom Bracket: Motor integrated
Chain: 10 spd, DHT for eBike, GST corrosion resistant coating
Pedals: MKS EZY
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Motor: Bosch Performance, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack
Display: Bosch Purion 200, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Range: 545 Wh: 55-120 km (34-75 mi) 400 Wh: 40-87 km (25-54 mi)
Charger: 100-240V, 2A
Chainguard: SKS Chainblade
Kickstand: URSUS, rear mount
Clip System: Magnetix 3.0
Luggage Socket: Yes
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans H-Trace, for eBike
Fenders: SplashGuard, stainless hardware
Rack: Atlas V Rack, integrated 8 point mounting, 27 kg capacity
