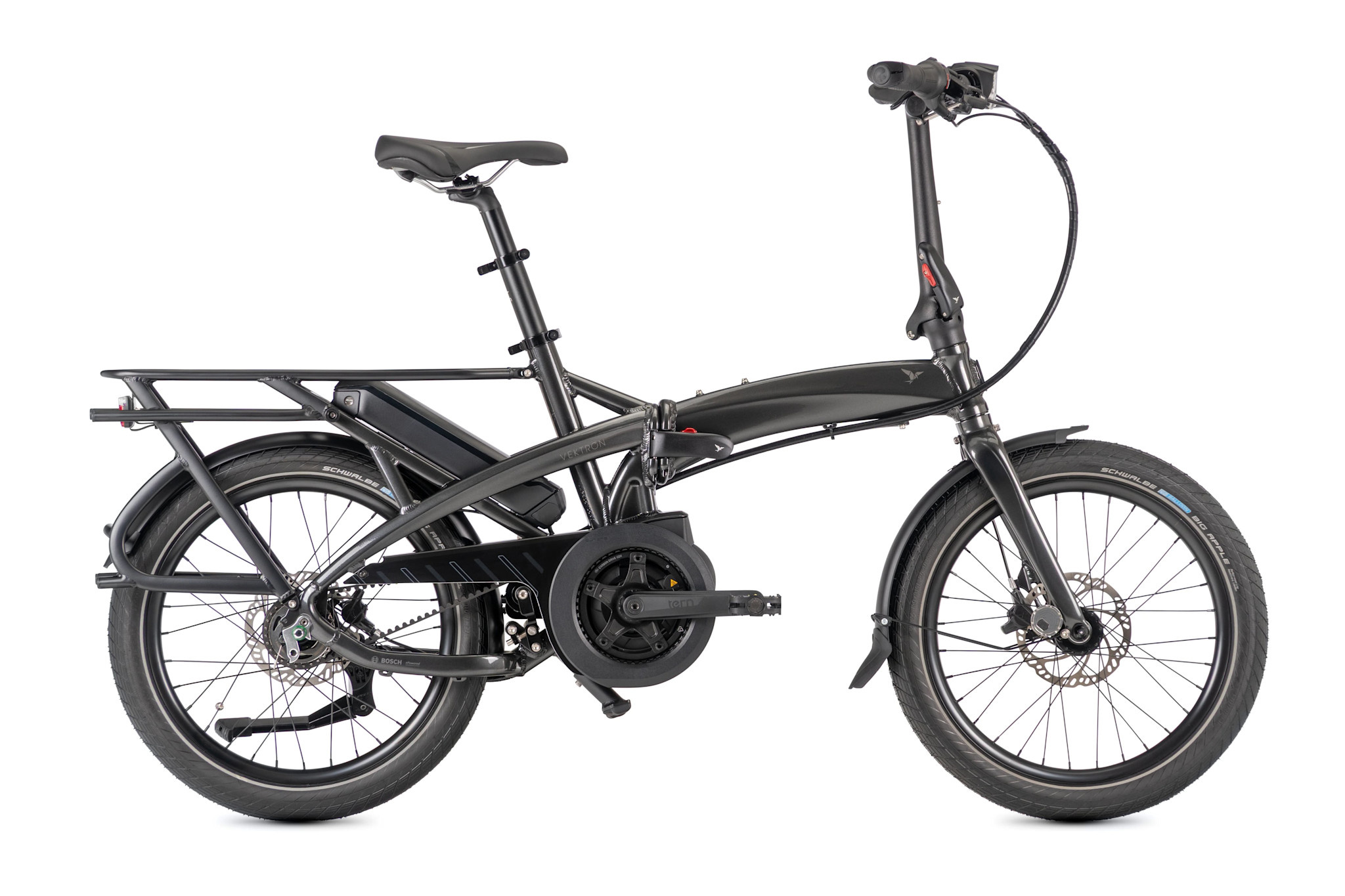

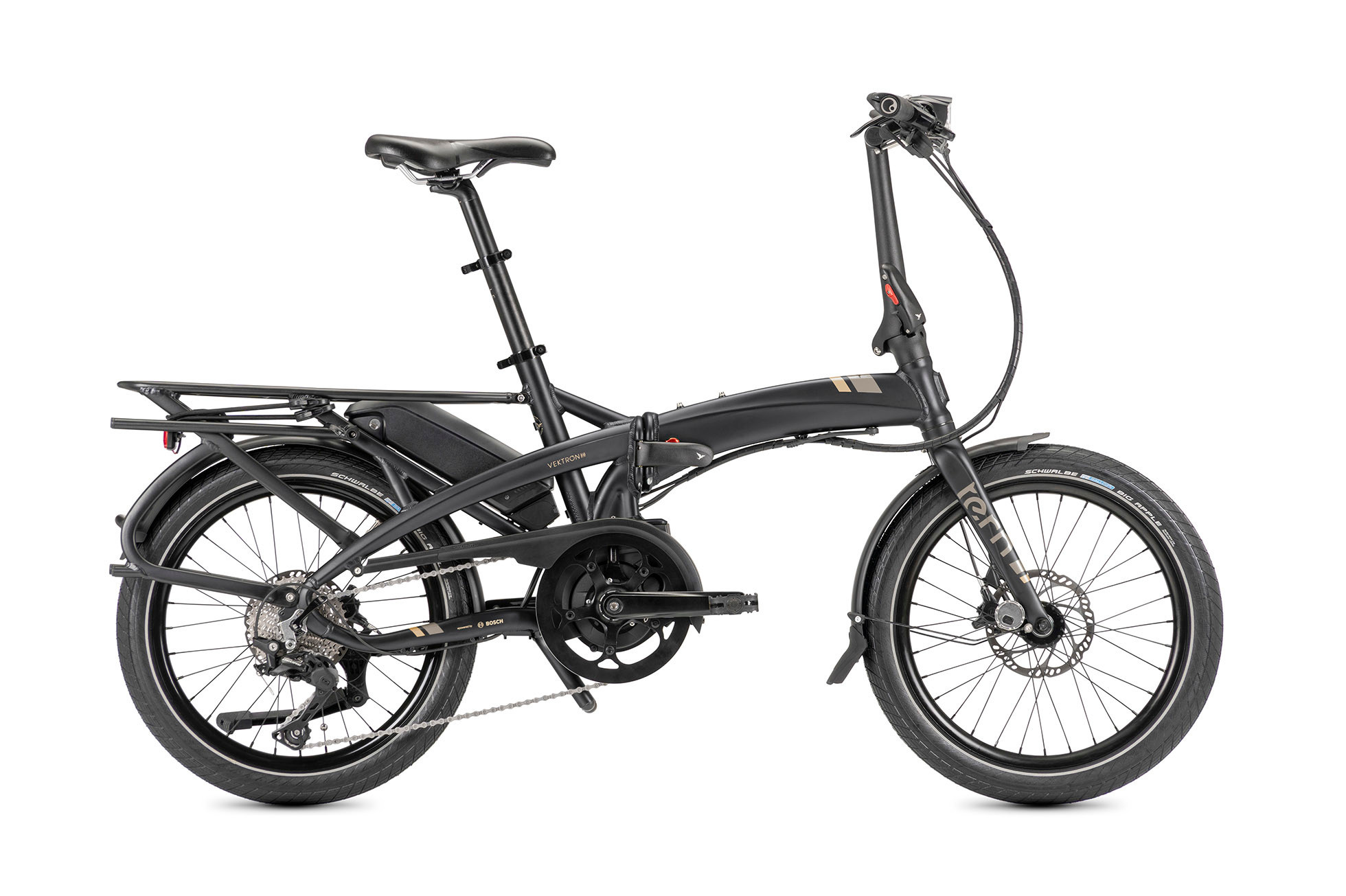

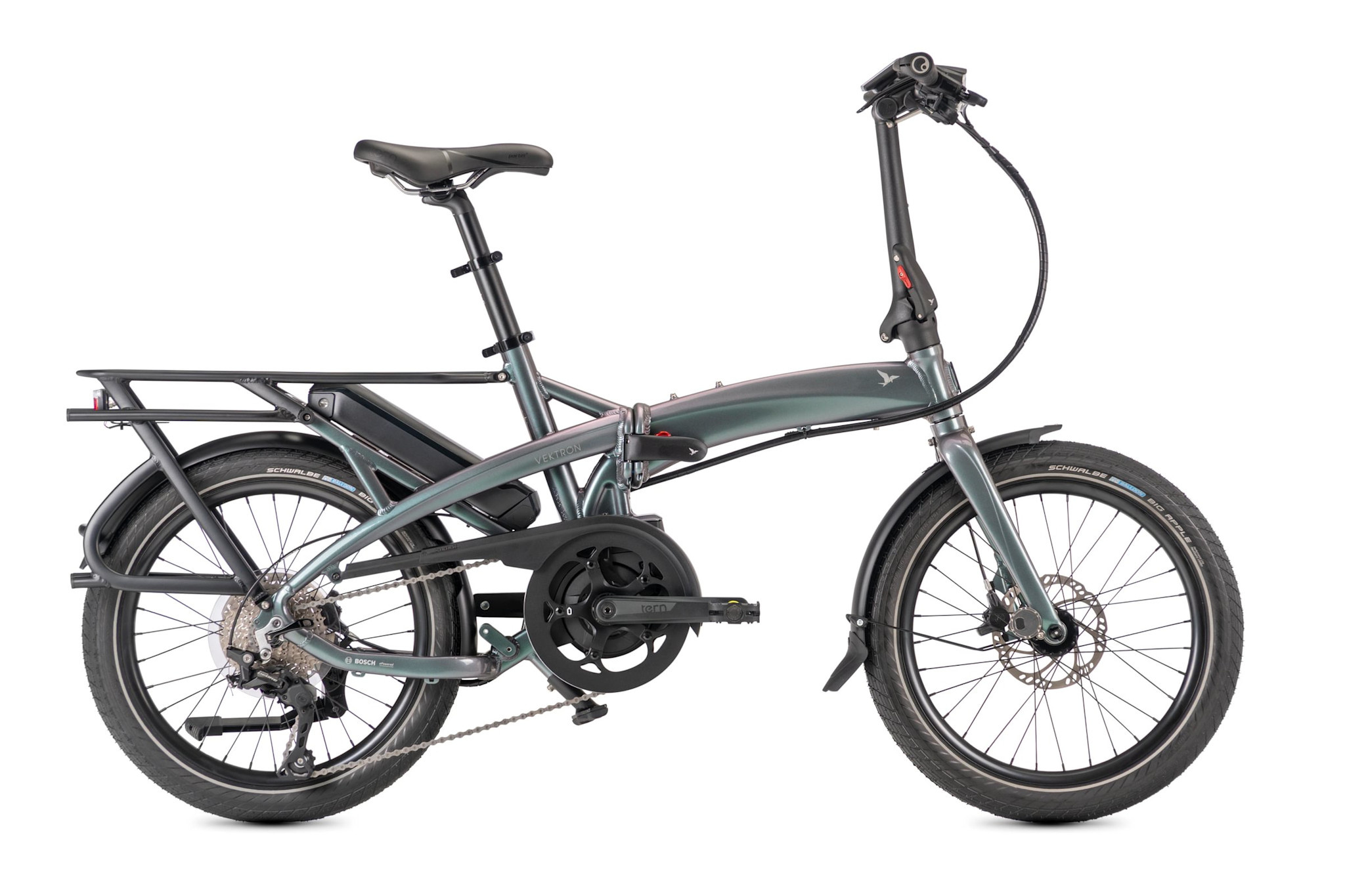

TERN Tern Vektron Gen3 Electric Folding Bike

Information

Powerful Bosch Performance motor provides up to 75 Nm of torque and 340% support. Intuvia 100 display and LED Remote offer clear info and easy control at your thumb. PowerPack 400 Wh battery lets you ride up to 87 km (54 mi) on a single charge.

General Info
Speeds:
1 x 5
Weight:
21.4 kg (47.2 lb)
Gear Inches:
34" - 90" (2.75 - 7.22 m)
Frame Sizes:
One size
Folding Size:
42 × 85 × 69 cm (16.5 × 33.5 × 27.2 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal:
67 - 110 cm (26.4 - 43.3 in)
Suggested Rider Height:
147 - 195 cm (57.9 - 76.8 in)
Max Gross Vehicle Weight:
125 kg (275.6 lb)
Max Rider Weight:
105 kg (231.5 lb)

Frame
Frame:
Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern Upright by Velo
Seatpost:
Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar

Brakes
Front Brake:
Magura MT4, hydraulic disc
Rear Brake:
Magura MT4, hydraulic disc
Brake Levers:
Magura, hydraulic disc
Brake Cable & Housing:
Magura, hydraulic disc

Wheels
Front Hub:
Disc, aluminum
Rear Hub:
Shimano Nexus 5
Spokes & Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tyres:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex

Transmission
Shifter(s):
Shimano Nexus, 5 spd
Crankset:
Tern custom, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Chain:
Gates Carbon Drive CDC belt
Pedals:
MKS EZY
Shifter Cable & Housing:
Shimano

E-System
Motor:
Bosch Performance, max speed 25 kph (EU)
Battery:
Bosch PowerPack
Display:
Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Range:
400 Wh: 40-87 km (25-54 mi)
Charger:
100-240V, 2A

Bells & Whistles
Chainguard:
Tern Custom, full chain cover
Kickstand:
URSUS, rear mount
Clip System:
Magnetix 3.0
Luggage Socket:
Yes
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans
Fenders:
SplashGuard, stainless hardware
Rack(s):
Atlas V Rack, integrated 8 point mounting, 27 kg capacity
