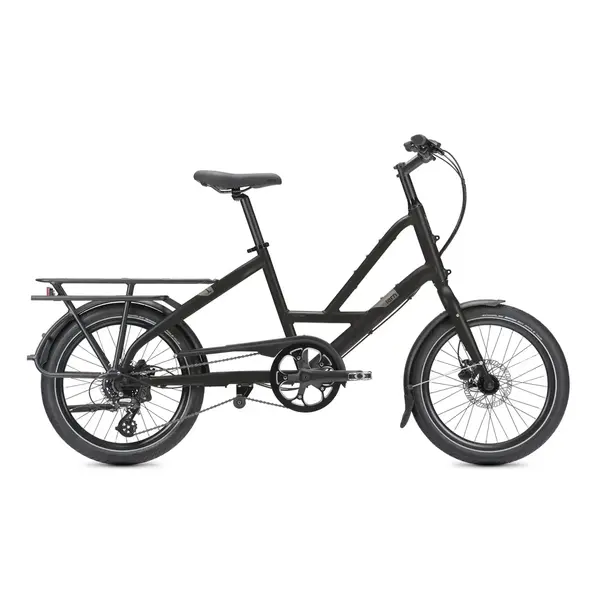

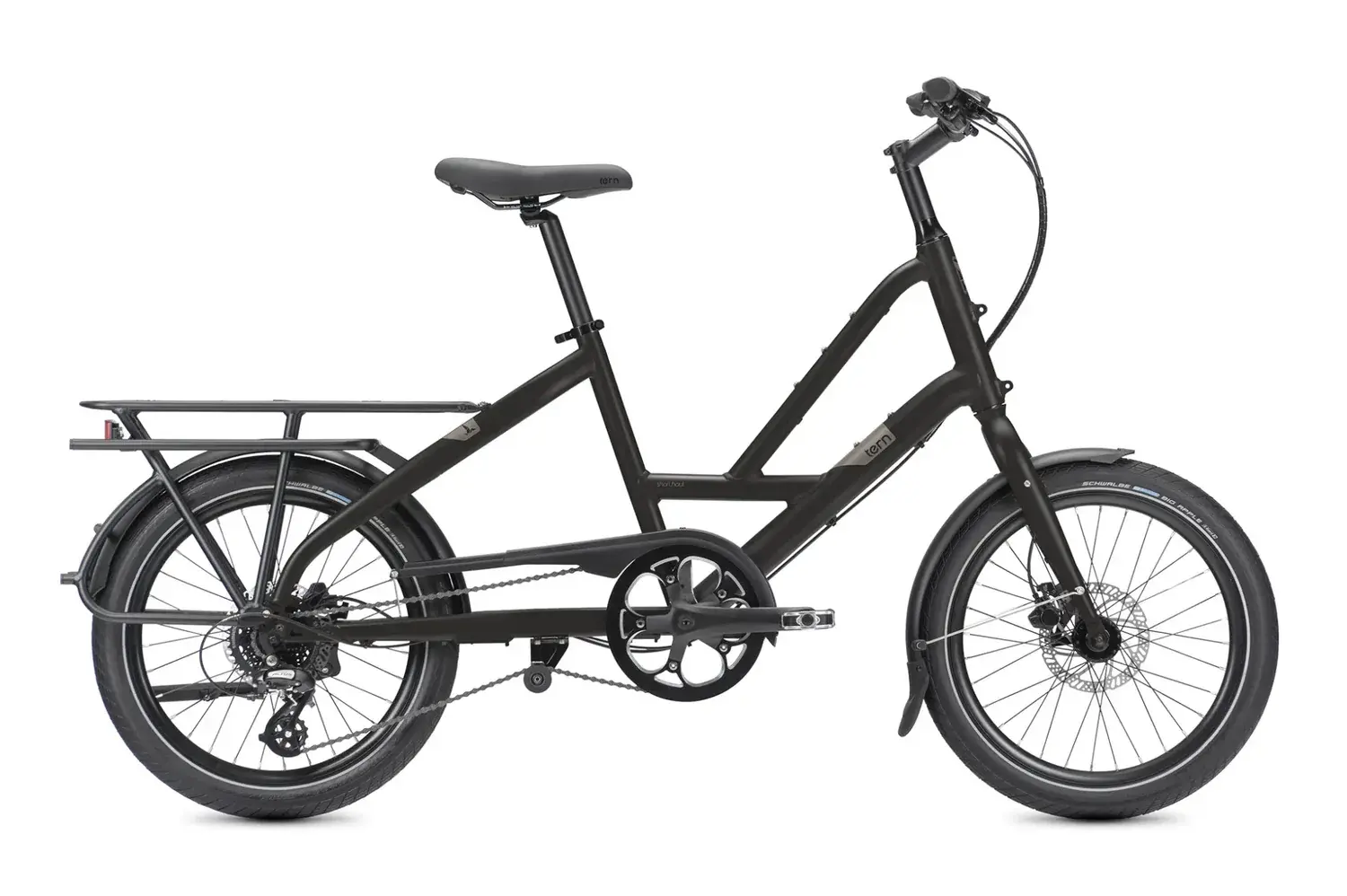

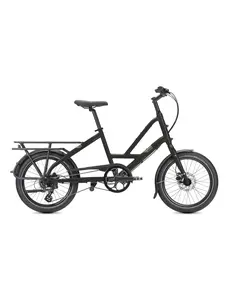

TERN Tern Short Haul Cargo Bikes

Information

Compact cargo bike that carries up to 50 kg on the rear rack, plus an additional 20 kg with optional front rack. Create your ideal setup with different accessory options to carry your child, your stuff, or even your dog. Proven safe and reliable: frame and fork are EFBE-tested up to the 140 kg (308 lb) Maximum Gross Vehicle Weight.

General Info
Speeds:
1 x 8
Weight:
16.1 kg (35.5 lb)
Gear Inches:
31" - 95" (2.45 - 7.57 m)
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
62 - 110 cm (24.4 - 43.3 in)
Suggested Rider Height:
147 - 190 cm (57.9 - 74.8 in)
Max Gross Vehicle Weight:
140 kg (308.6 lb)
Max Rider Weight:
120 kg (264.6 lb)

Frame
Frame:
Tern Short Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 140 kg
Fork:
Steel, EFBE approved: 140 kg

Cockpit
Stem:
Forged, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar

Brakes
Front Brake:
Hydraulic disc
Rear Brake:
Hydraulic disc
Brake Levers:
Hydraulic disc
Brake Cable & Housing:
Hydraulic disc

Wheels
Front Hub:
Disc, aluminum
Rear Hub:
8 spd, disc, aluminum
Spokes & Nipples:
Stainless steel
Rims:
Doublewall, for disc
Tyres:
Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission
Shifter(s):
1 x 8 spd, trigger
Rear Derailleur:
Shimano Altus
Crankset:
Forged 6061-AL crankarm
Cassette/Freewheel:
11-34T, 8 spd
Bottom Bracket:
FSA, Cartridge, sealed bearings
Chain:
KMC, 8 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP

Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Pletscher design, rear mount
Luggage Socket:
Combo Mount
Fenders:
SplashGuard, stainless hardware
Rack(s):
Atlas Q Rack, 6 point mounting, Vertical Parking, 50 kg capacity
