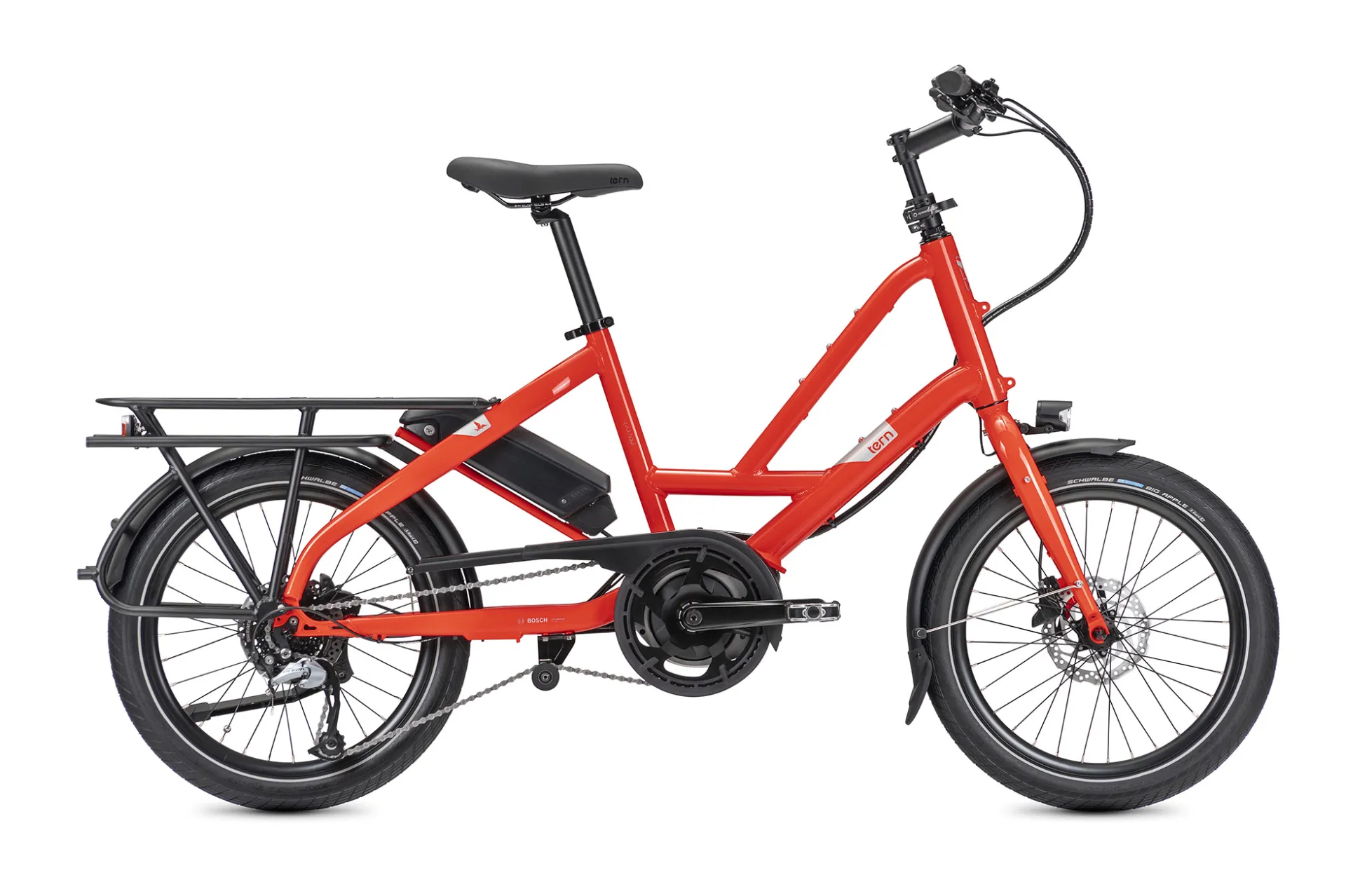

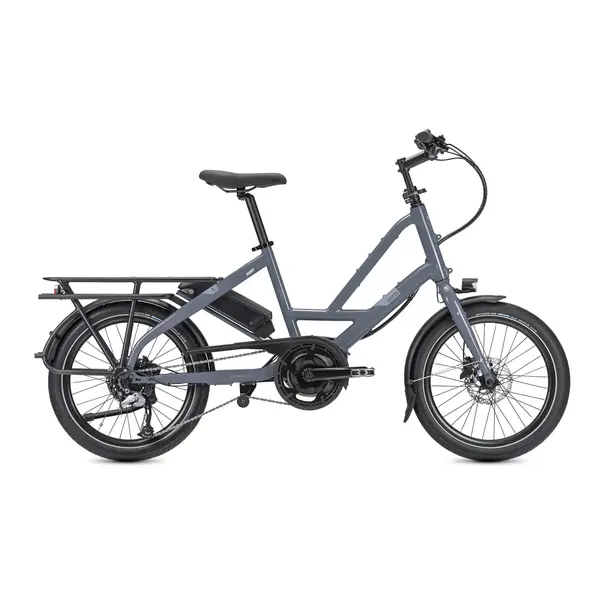

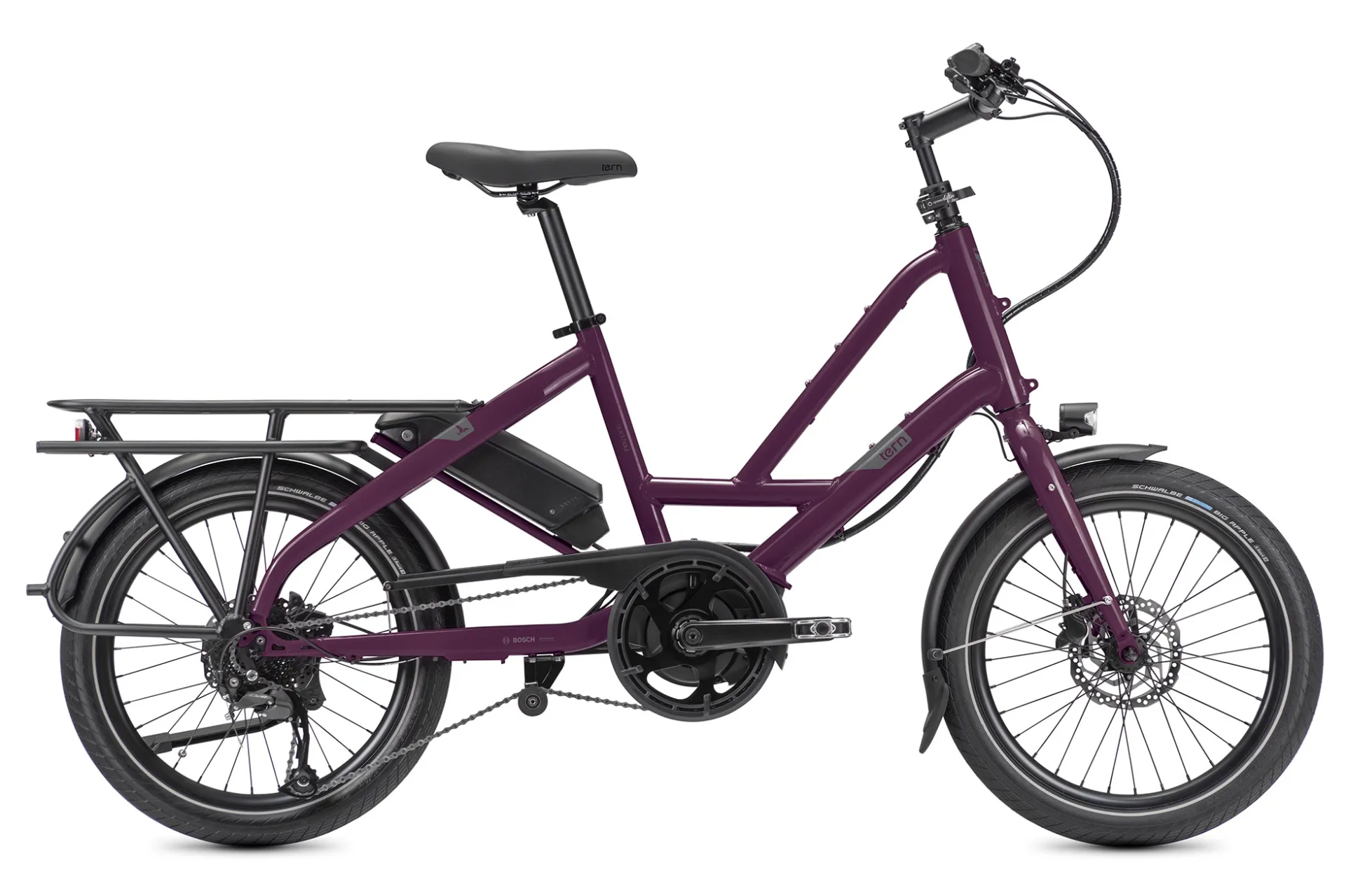

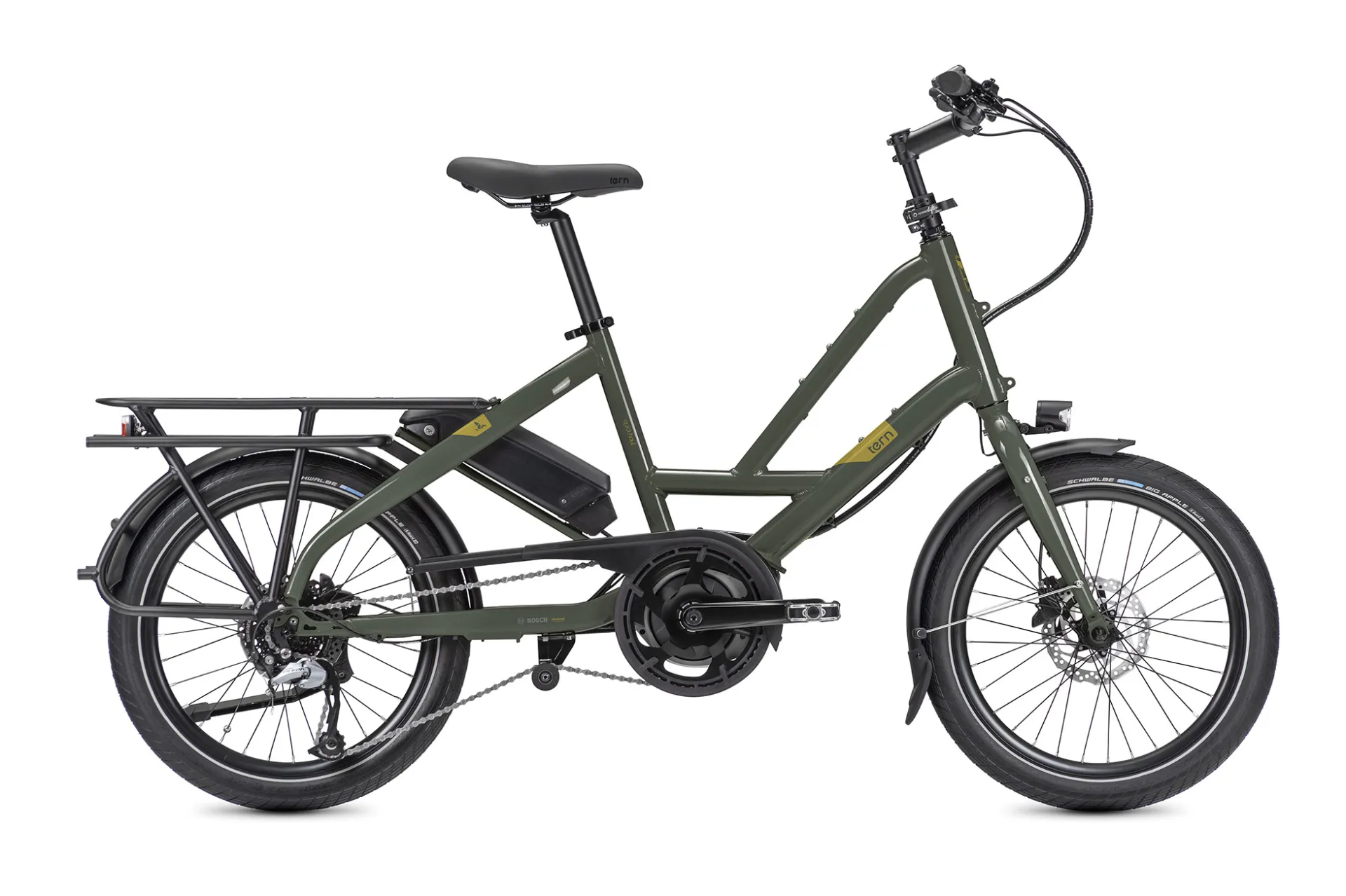

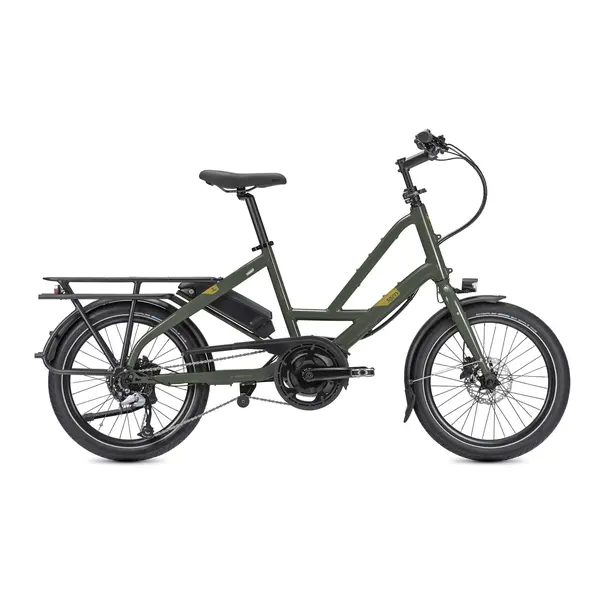

Tern Quick Haul P9 Electric Cargo Bike
€3.690,00
In stock (1)
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse. Read more
Information
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.
Frame
Frame: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork: Cargo, steel, EFBE approved: 150 kg
Cockpit
Stem: Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset: TH, cartridge bearings
Handlebar: Low riser, 31.8, 6061-AL
Grips/Bar Tape: Velo ergonomic, lock-on
Saddle: Velo Comfort
Seatpost: 31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Shimano, hydraulic disc
Rear Brake: Shimano, hydraulic disc
Brake Levers: Shimano, hydraulic disc
Brake Cable & Housing: Shimano, hydraulic disc
Wheels
Front Hub: Shimano disc
Rear Hub: Shimano disc
Spokes & Nipples: Stainless steel
Rims: Kinetix Comp, for disc
Tires: Schwalbe Motion Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter: Shimano Alivio, 1 x 9 spd, trigger
Rear Derailleur: Shimano Alivio Shadow
Crankset: Tern custom, forged 6061-AL crankarm
Cassette/Freewheel: Shimano 11-34T, 9 spd
Bottom Bracket: Motor integrated
Chain: KMC for eBike, 9 spd
Pedals: Urban with non-slip surface
Shifter Cable & Housing: SP
E-System
Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 400
Display: Bosch Purion
Range: 400 Wh: 53 - 105 km (32.9 - 65.2 mi)
Charger: Compact Charger, 100-240V, 2A
Bells & Whistles
Bell: Aluminum
Chainguard: SKS Chainblade
Kickstand: Pletscher design, rear mount
Luggage Socket: Combo Mount
Front Light: Herrmans, 120 lumens
Rear Light: Herrmans
Fenders: Chromeplastic, stainless hardware
Rack: Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
