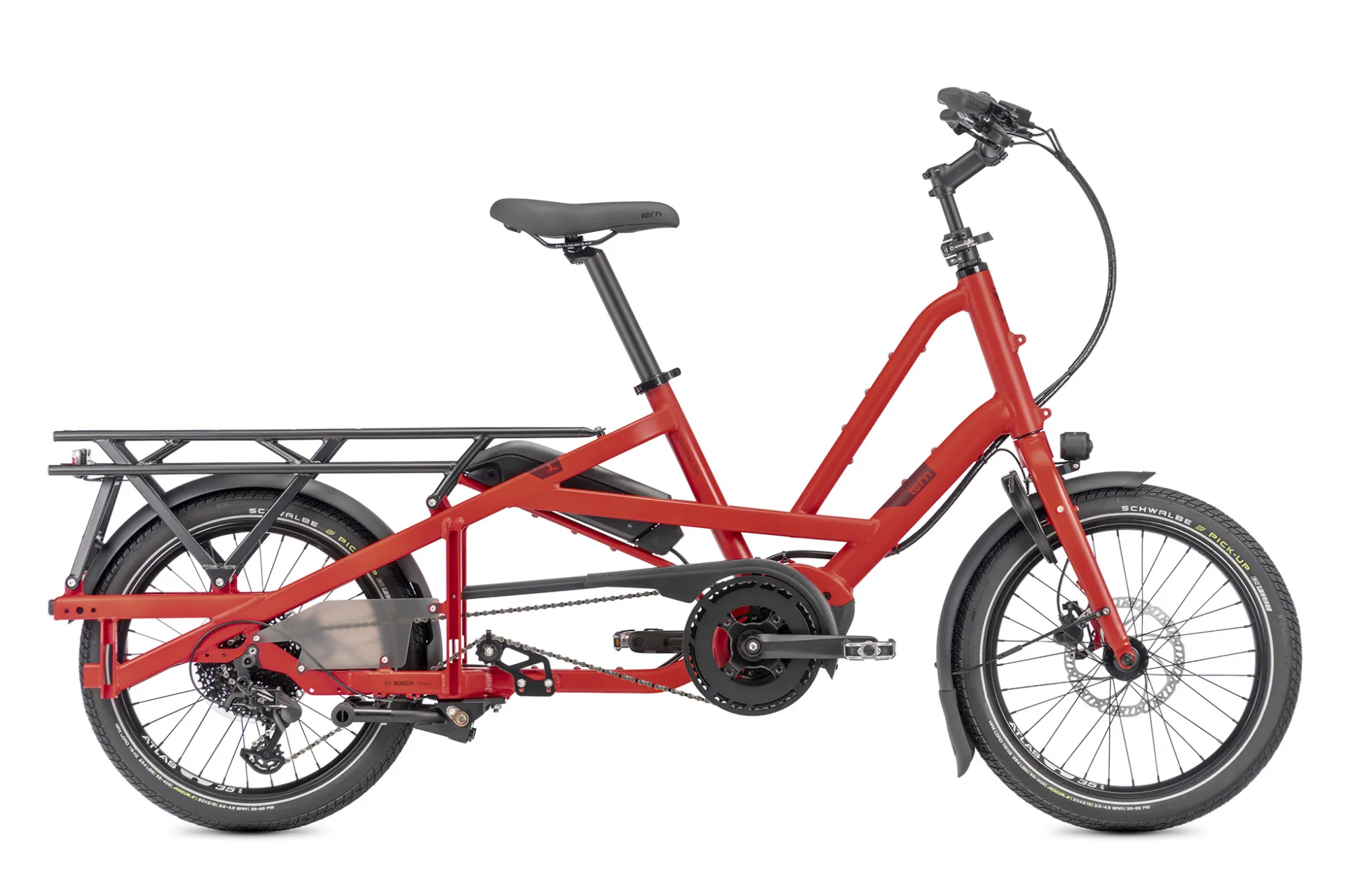

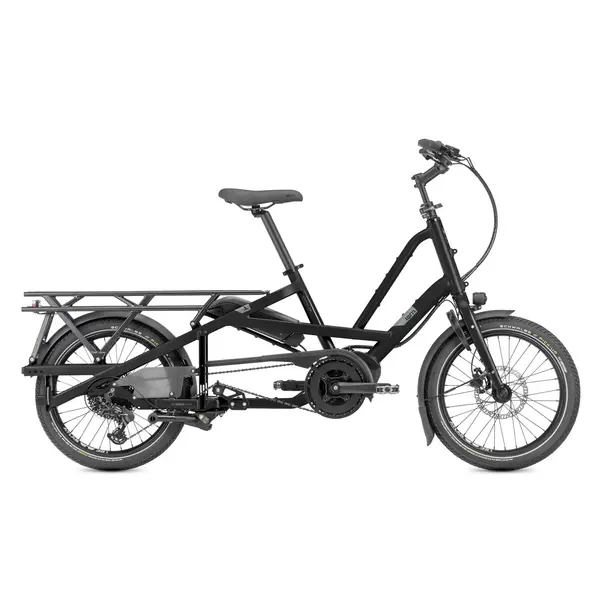

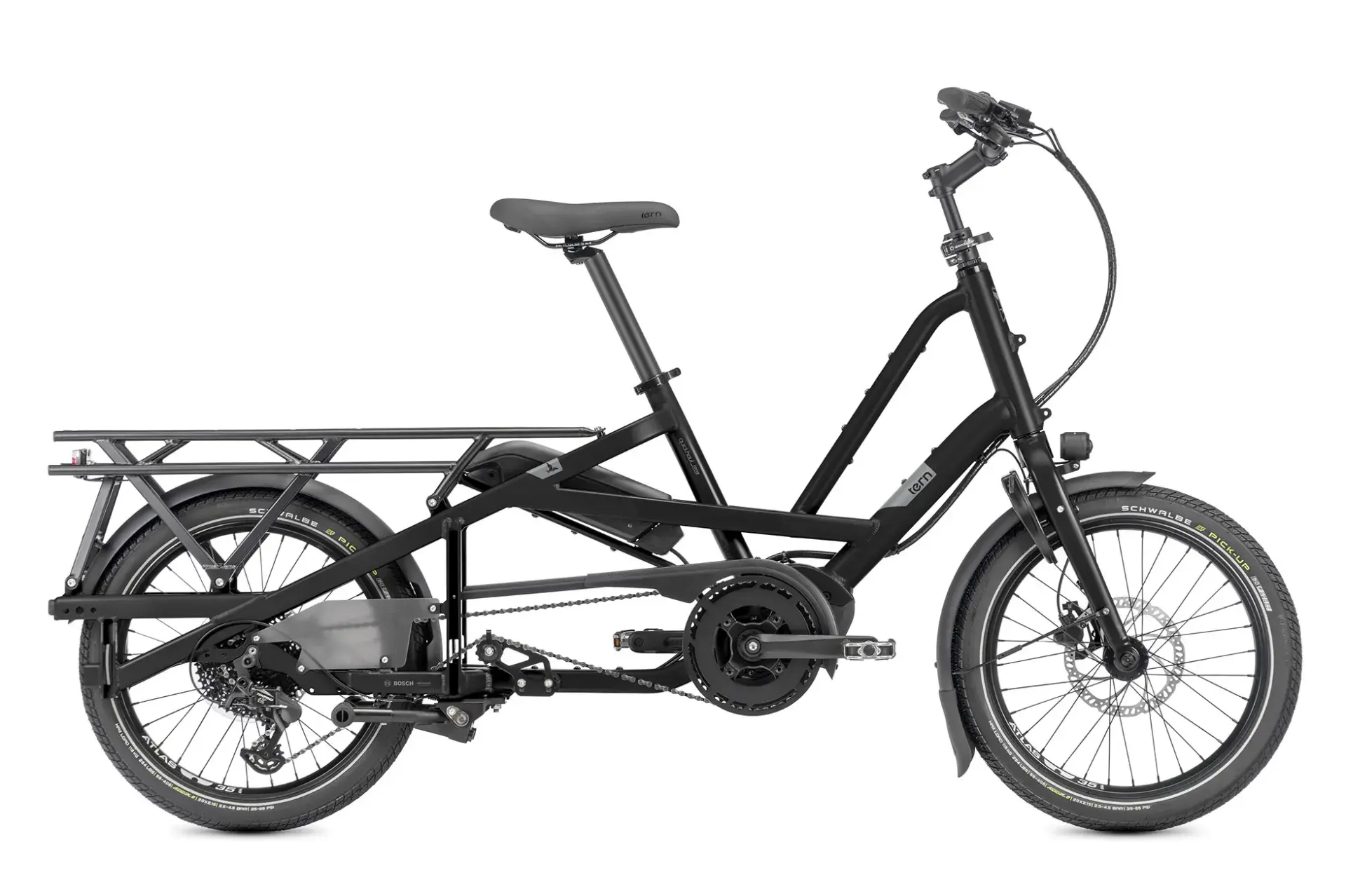

Tern Quick Haul Long D9 Electric Cargo Bike
€4.202,00
Typically ships in 10–15 days
Uncomplicated and incredibly versatile, Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy maneuvering past traffic queues, but built extra tough to safely carry 2 kids or your biggest hauls. Read more
Information
Uncomplicated and incredibly versatile, Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy maneuvering past traffic queues, but built extra tough to safely carry 2 kids or your biggest hauls.
Frame
Frame: Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
Cockpit
Stem: Speedlifter, adjustable, 3D forged stem, 31.8
Headset: TH, cartridge bearings
Handlebar: Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape: Velo ergonomic, lock-on
Saddle: Velo Comfort
Seatpost: 34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Tektro hydraulic disc
Rear Brake: Tektro hydraulic disc
Brake Levers: Tektro hydraulic disc
Wheels
Front Hub: Disc, aluminum
Rear Hub: 9 spd, disc, aluminum, Boost
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, cargo
Tires: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
Transmission
Shifter: Tektro, 1 x 9 spd, trigger
Rear Derailleur: Tektro custom for Tern, 1 x 9 spd
Crankset: Tern custom, forged 6061-AL crankarm, anti-drop chainring
Cassette/Freewheel: Tektro 11-42T, 9 spd
Bottom Bracket: Motor integrated
Chain: KMC for eBike, 9 spd
Pedals: Urban with non-slip surface
Shifter Cable & Housing: SP
E-System
Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 400
Display: Bosch Purion, 4 mode selectable, walk assist
Range: 400 Wh: 42-85 km (26-53 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell: Aluminum
Chainguard: SKS Chainblade
Kickstand: Atlas Kickstand, for cargo
Luggage Socket: Combo Mount
Front Light: 90 lux, StVZO approved
Rear Light: Herrmans
Fenders: SplashGuard, stainless hardware
Rack: Atlas L, 90 kg (198 lb) capacity
Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
