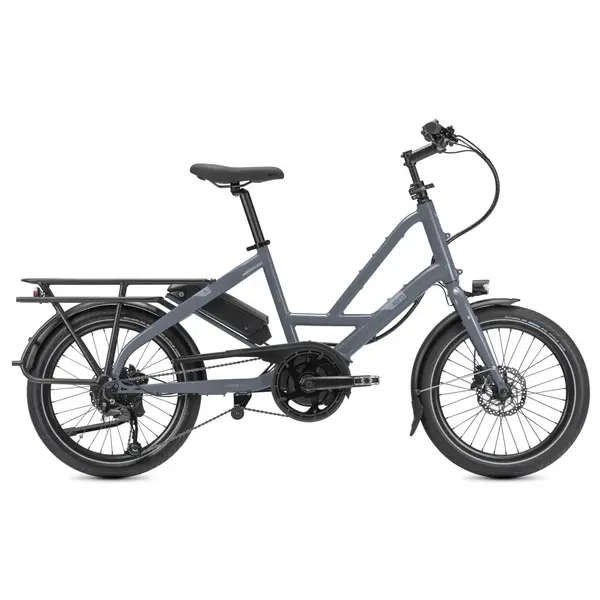

Tern Quick Haul D8 Electric Cargo Bike

Information

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support. 1x8-speed Shimano Altus groupset with trigger shifter.

Frame
Frame:
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork:
Cargo, steel, EFBE approved: 150 kg

Cockpit
Stem:
Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar

Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic disc

Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes & Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tires:
Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission
Shifter:
Shimano Altus, 1 x 8 spd, trigger
Rear Derailleur:
Shimano Altus Shadow
Crankset:
Tern custom, forged 6061-AL crankarm
Cassette/Freewheel:
Shimano 11-34T, 8 spd
Bottom Bracket:
Motor integrated
Chain:
KMC for eBike, 8 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP

E-System
Motor:
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Purion
Range:
400 Wh: 54 - 105 km (33.6 - 65.2 mi)
Charger:
Compact Charger, 100-240V, 2A

Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Pletscher design, rear mount
Luggage Socket:
Combo Mount
Front Light:
Herrmans, 120 lumens
Rear Light:
Herrmans
Fenders:
Chromeplastic, stainless hardware
Rack:
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
