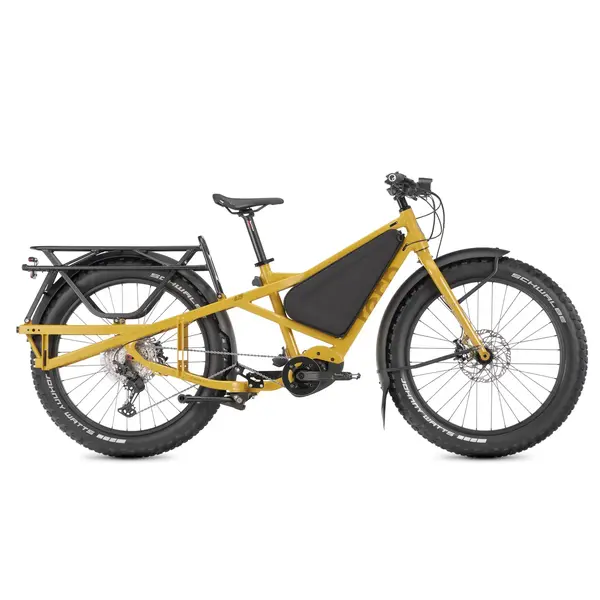

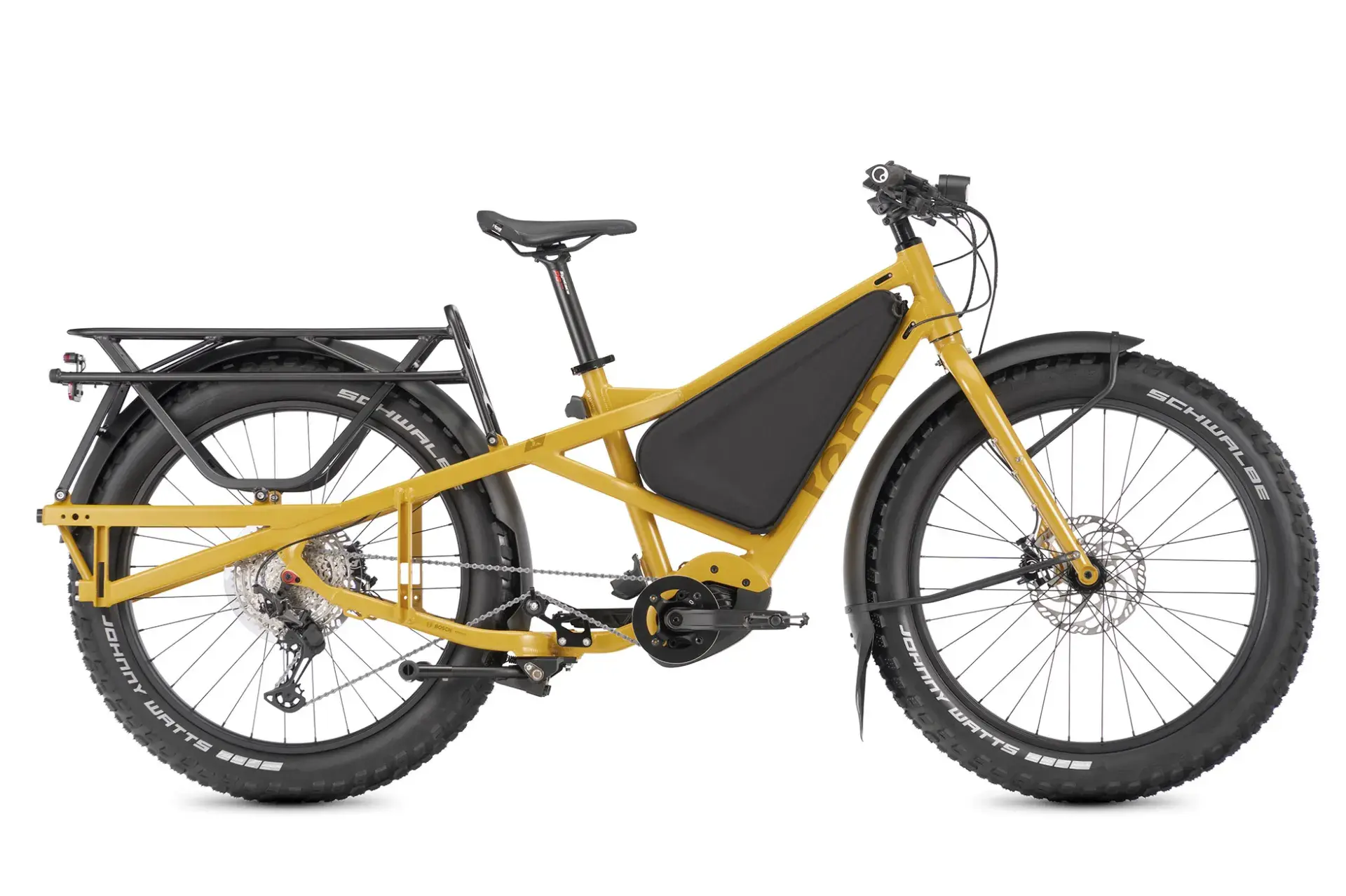

Tern Orox S12 27.5 Electric Cargo Bike WOB
€6.969,00
Typically ships in 10–15 days
The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. This tenacious trooper packs up to two XL batteries to power you through extended off-grid explorations Read more
Information
The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. This tenacious trooper packs up to two XL batteries to power you through extended off-grid explorations, and redefines what’s possible by bike with a massive Max Gross Vehicle Weight of up to 210 kg (462 lb) for best-in-class cargo capacity.
Frame: Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork: Atlas X, butted chromoly steel, EFBE tested and approved
Stem: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Headset: FSA, 1.5", angular contact bearings
Handlebar: Level Nine, AL-7050, 800 mm, riser, eMTB approved
Grips/Bar Tape: Ergon
Saddle: Ergon SM, E-Mountain Sport, CrMo Rail
Seatpost: Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Seatpost Clamp: Tern Collar
Front Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Rear Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Brake Levers: Magura MT5, hydraulic
Brake Cable & Housing: Magura, hydraulic
Front Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
Rear Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
Rear Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples: Stainless steel
Rims: Tern Atlas X, custom doublewall construction
Tires: Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"
Shifter: Shimano Deore, 1 x 12 spd
Rear Derailleur: Shimano Deore XT Shadow+
Crankset: Tern Orox custom
Cassette/Freewheel: Shimano 10-51T, 12 spd
Bottom Bracket: Motor integrated
Chain: KMC 12 spd, for eBike, EPT corrosion resistant coating
Pedals: MTB, non-slip
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Motor: Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
Battery: 725 Wh or 800 Wh, Bosch Dual Battery pack ready
Display: Bosch Kiox 300 w/ LED remote, electronic bike lock
Range: 725 Wh: 84 - 146 km (52 - 91 mi); 800 Wh: 93 - 161 km (58 -100 mi); 1450 Wh: 168 - 292 km (104 - 181 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Bell: Pitch Plus, brass
Tool: Thru-axle lever, 4/5 mm, Torx 2.5 mm
Chainguard: Custom Bash Guard
Paint Protection: ToughShield film on top and downtube, self-healing
Kickstand: Atlas Kickstand XL Cargo ready
Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light: LED w/ G-Sensed Brake Light
Fenders: Aluminum, heavy duty construction, oversize stays, 27.5"
Rack: Atlas X, 100 kg (220 lb) capacity
