TERN Tern Node Folding Bikes

Information

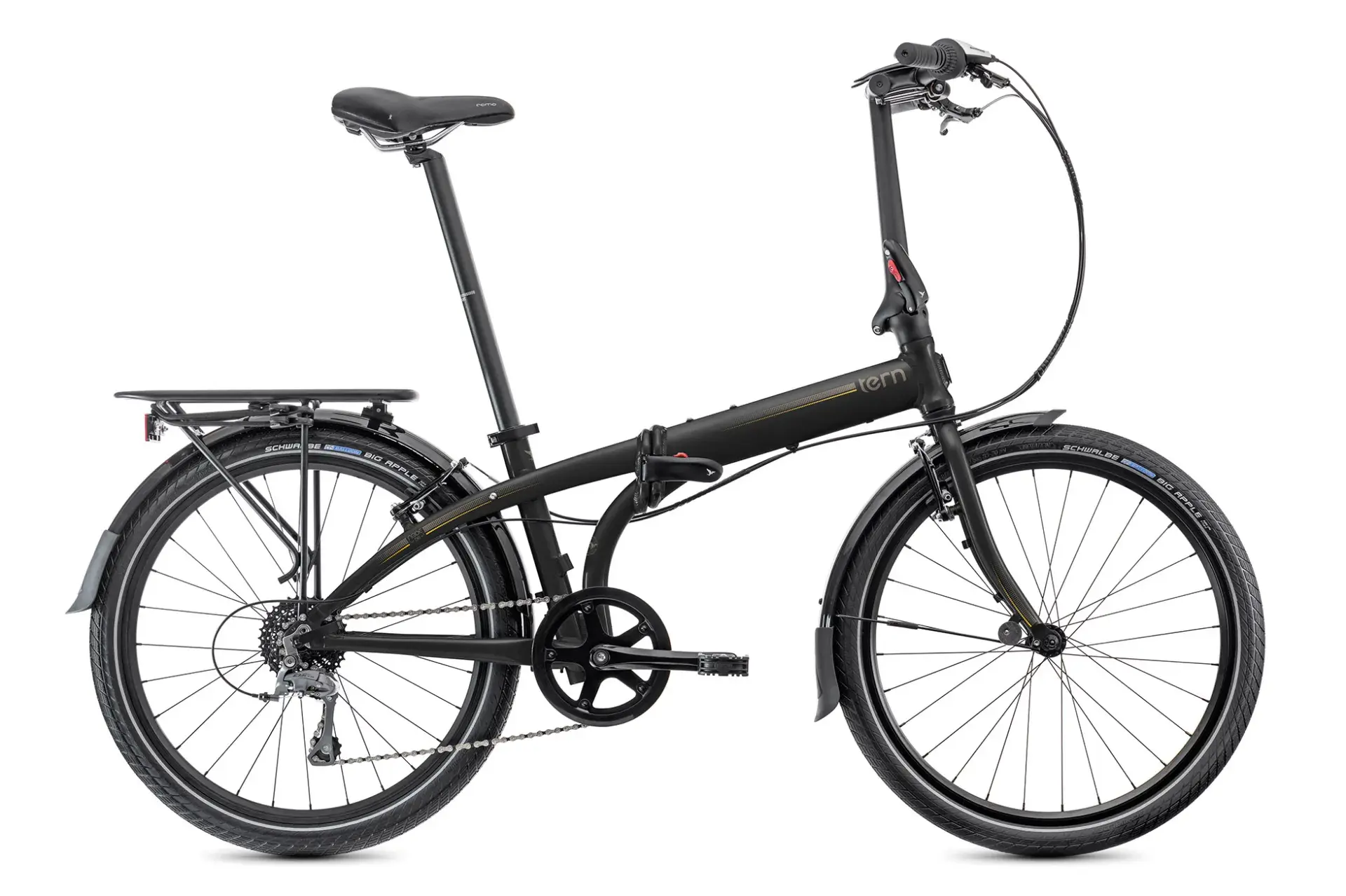

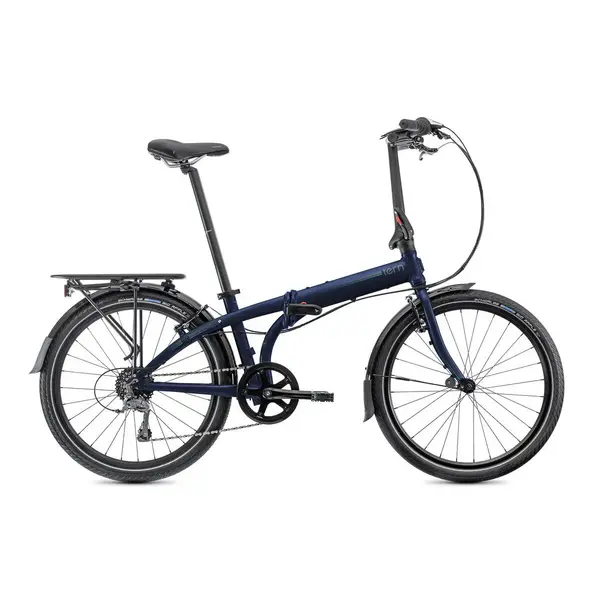

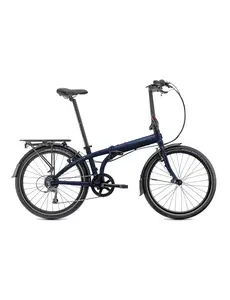

The Node D8 is the workhorse of our Around-Town bike family. With big wheels, comfortable tires, and swept-back handlebars, it’s as comfortable and solid as a Dutch city-bike, but it folds down small—in 10 seconds flat.

General Info
Speeds:
1 x 8
Weight:
13.3 kg (29.3 lb)
Gear Inches:
33" - 96" (2.64 - 7.67 m)
Frame Sizes:
One size
Folding Size:
39 × 86 × 84 cm (15.4 × 33.9 × 33.1 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
67 - 73 cm (26.4 - 28.7 in)
Distance: Saddle to Pedal:
79.5 - 105 cm (31.3 - 41.3 in)
Suggested Rider Height:
148 - 195 cm (58.3 - 76.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Rider Weight:
105 kg (231.5 lb)

Frame
Frame:
Tern Node, aluminum, OCL+ joint, 2 patented technologies
Fork:
Integrated, hi-tensile steel

Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Flux, cartridge bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-Al, Tern Andros butted
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
BioLogic Como DLX
Seatpost:
SuperOversize, 6061-Al, micro-adjust clamp
Seatpost Clamp:
SuperOverize, 6061-Al

Brakes
Front Brake:
V, aluminum, linear spring
Rear Brake:
V, aluminum, linear spring
Brake Levers:
V, aluminum bracket/lever
Brake Cable & Housing:
Anti-compression housing, slick cables

Wheels
Front Hub:
Aluminum; Opt: Shimano 1.5W dynamo
Rear Hub:
Formula, 8 spd cassette, QR
Spokes & Nipples:
Sapim Leader, stainless steel
Rims:
Doublewall aluminum
Tyres:
Schwalbe Big Apple, 50-507, puncture protection, Reflex

Transmission
Shifter(s):
Shimano,1 x 8 spd, trigger
Rear Derailleur:
Shimano Claris
Crankset:
Cold-forged 6061 aluminum crank arms, hand-polished
Cassette/Freewheel:
Shimano, 11-30T, 8 spd
Bottom Bracket:
Cartridge, sealed bearings
Chain:
8 spd
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SP

Bells & Whistles
Bell:
Aluminum
Kickstand:
Deluxe center mount
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Fenders:
Freelance, stainless hardware
Rack(s):
Tern Freight Rack; Max load weight: 25 kg (55 lb)
