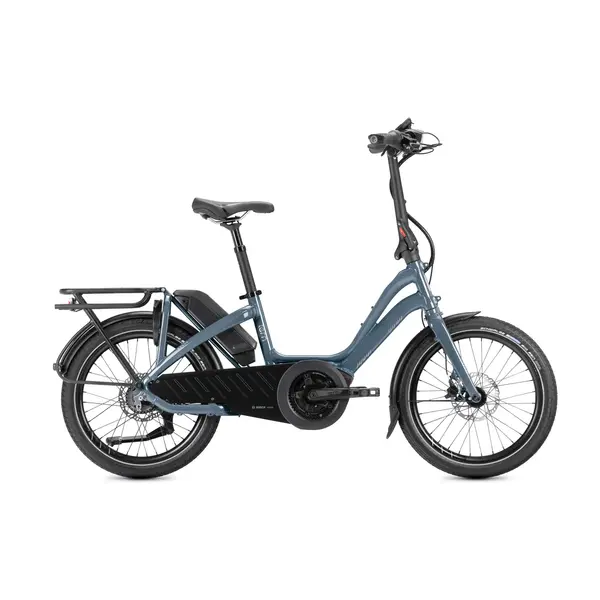

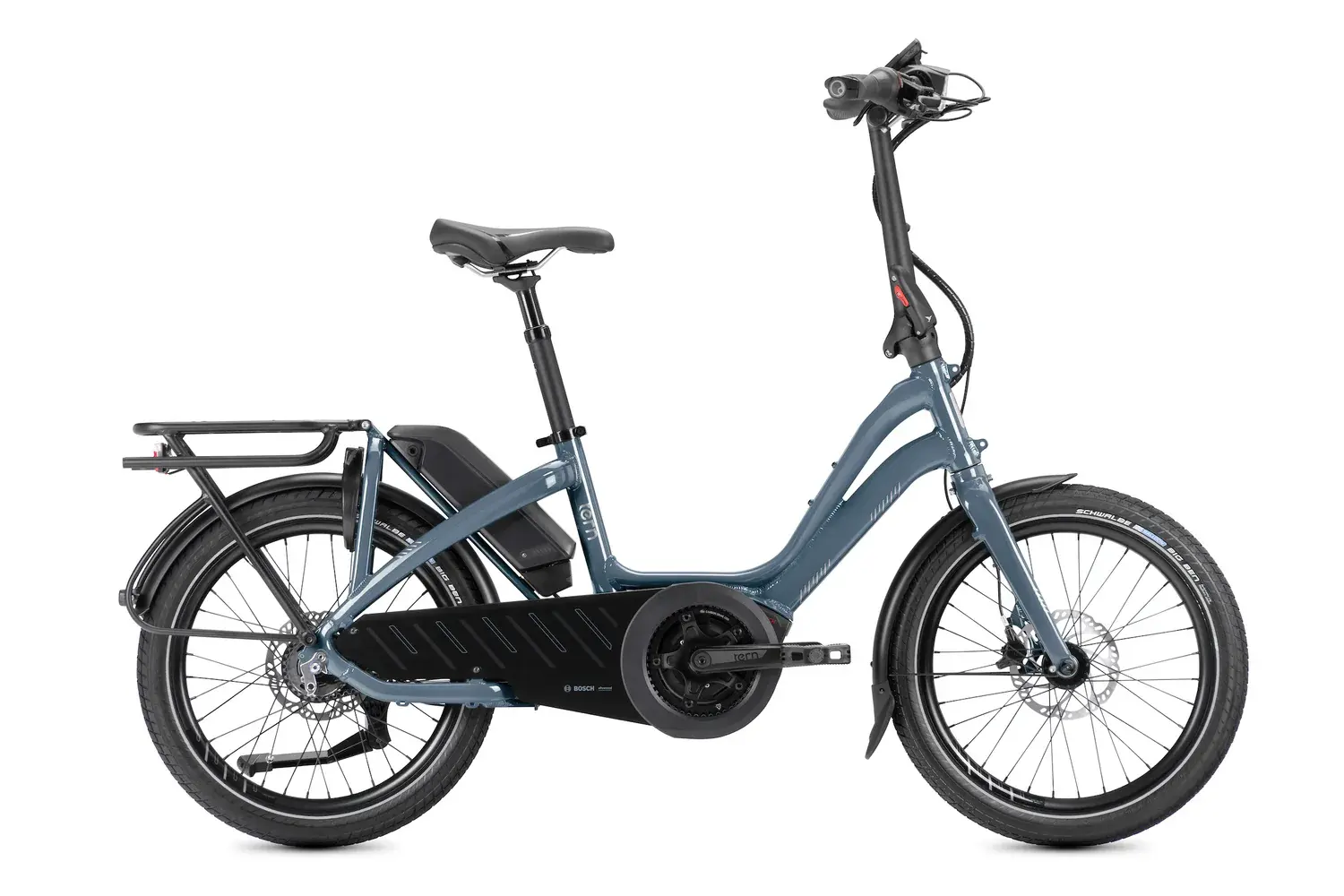

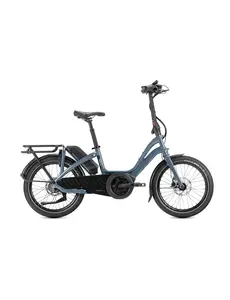

TERN Tern NBD Electric City eBikes

Information

Bosch Performance Line motor provides up to 65 Nm of torque and 300% support. Bosch PowerPack 500 powers longer trips, commutes, and journeys. Gates belt drive for clean, quiet, maintenance-free operation.

General Info
Speeds:
1 x 5
Weight:
23.4 kg (51.6 lb)
Gear Inches:
34" - 90" (2.75 - 7.22 m)
Frame Sizes:
One size
Folding Size:
38 × 156 × 79 cm (15 × 61.4 × 31.1 in)
Folding Time:
5 sec
Distance: Seatpost to Handlebar:
45 - 52 cm (17.7 - 20.5 in)
Distance: Saddle to Pedal:
70 - 100 cm (27.6 - 39.4 in)
Suggested Rider Height:
147 - 190 cm (57.9 - 74.8 in)
Max Gross Vehicle Weight:
140 kg (308.6 lb)
Max Rider Weight:
120 kg (264.6 lb)

Frame
Frame:
Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
Fork:
Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern Upright by Velo
Seatpost:
Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
Seatpost Clamp:
Tern Collar

Brakes
Front Brake:
Magura MT4, hydraulic disc
Rear Brake:
Magura MT4, hydraulic disc
Brake Levers:
Magura, hydraulic
Brake Cable & Housing:
Magura, hydraulic

Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano Nexus INTER-5E
Spokes & Nipples:
Stainless steel
Rims:
Kinetix Comp, for disc
Tyres:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex

Transmission
Shifter(s):
Shimano 5 spd.
Crankset:
Tern NBD custom, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Chain:
Gates Carbon Drive CDX belt
Pedals:
MKS Platform, Tern custom design
Shifter Cable & Housing:
Shimano

E-System
Motor:
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 500
Display:
Bosch Intuvia, 4 mode selectable, walk assist
Range:
51-118 km (32-74 mi)
Charger:
Bosch Standard Charger

Bells & Whistles
Bell:
Aluminum
Chainguard:
Tern Custom, full chain cover
Kickstand:
Ursus, rear mount
Luggage Socket:
Combo Mount
Front Light:
Tern Valo Direct, 190 lumens
Rear Light:
Herrmans
Fenders:
SplashGuard, stainless hardware
Rack(s):
Gaia Rack, 27 kg capacity, Vertical Parking
Frame Lock:
ABUS, keyed-alike with Bosch battery
