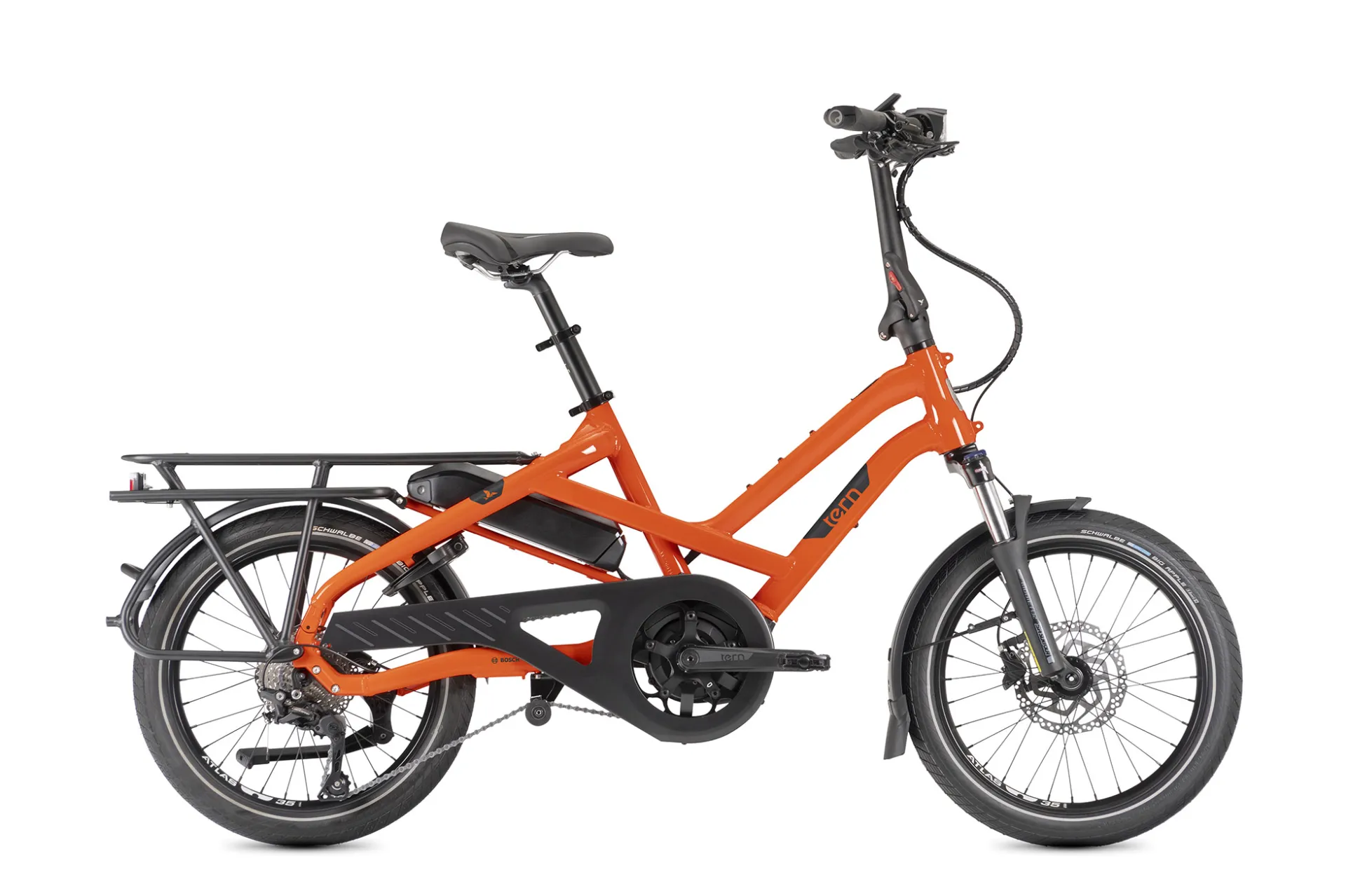

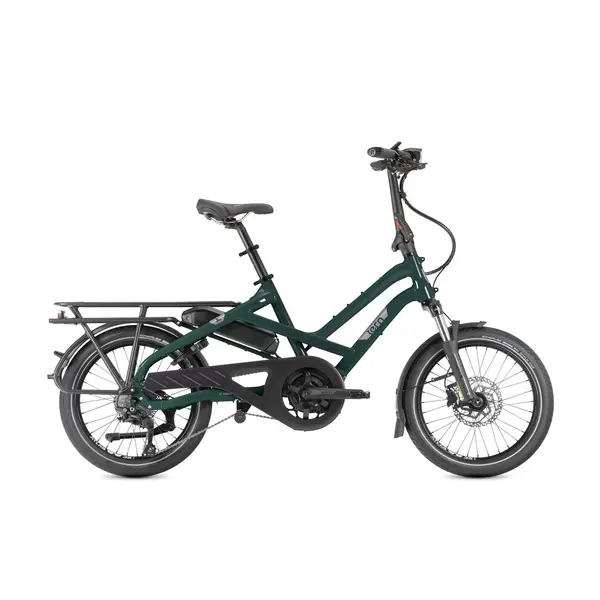

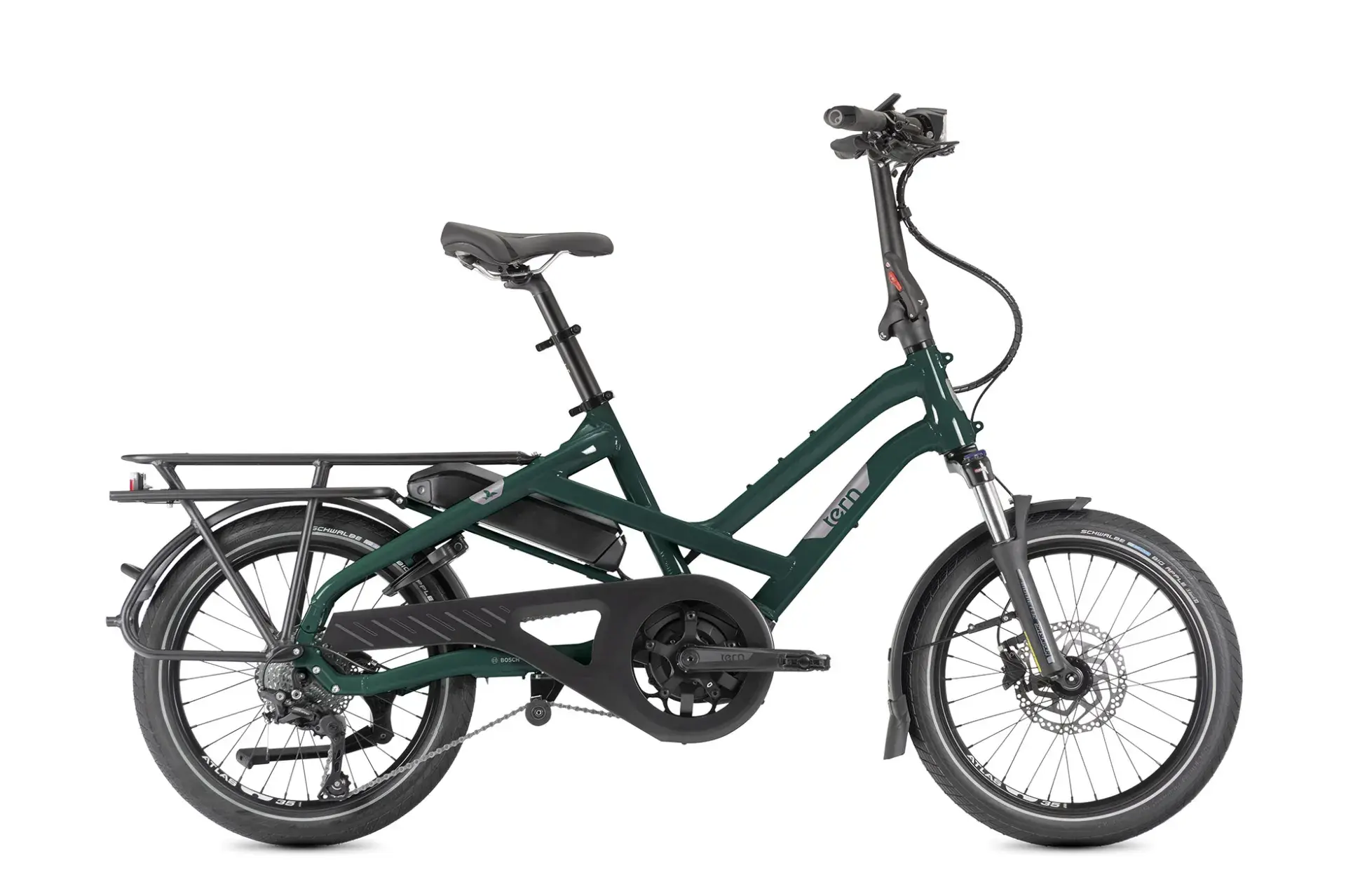

Tern HSD P10 Electric Cargo Bike
€4.714,00
Typically ships in 10–15 days
A compact electric cargo bike that surprises with big-bike capability. The new HSD carries passengers and cargo with exceptional stability, while staying nimble in crowded streets and remaining delightfully easy to ride. Read more
Information
A compact electric cargo bike that surprises with big-bike capability. The new HSD carries passengers and cargo with exceptional stability, while staying nimble in crowded streets and remaining delightfully easy to ride.
Frame: Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Fork: Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern by Velo
Seatpost: Tern VLT 41/34.9mm, with LightAction levers
Seatpost Clamp: Tern Collar
Front Brake: Magura, hydraulic disc, 180 mm rotor
Rear Brake: Magura, hydraulic disc, 180 mm rotor
Brake Levers: Magura, hydraulic disc
Brake Cable & Housing: Magura, hydraulic disc
Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel: Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Novatec, disc, sealed bearings
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, cargo
Tires: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Shifter: TRP E.A.S.I., wireless e-shifter, w/ Bosch eShift
Rear Derailleur: TRP E.A.S.I. A10, w/ Bosch eShift, 10 spd, Built for Tern
Crankset: Tern HSD
Cassette/Freewheel: Shimano CUES, Linkglide 11-39T, 10 spd
Bottom Bracket: Motor integrated
Chain: KMC eGlideS, 10 spd, EPT corrosion resistant coating
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Wireless
Motor: Bosch Performance (BDU34, 340% Assist, 75 Nm Torque, max speed 25 km/h (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 545
Display: Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Range: 545 Wh: 56-107 km (35-67 mi)
Charger: Fast Charging, 220V, 4A (EU); 100-240V, 4A (US)
Bell: Pitch Plus, brass
Chainguard: Tern Custom, full chain cover
Kickstand: Ursus, rear mount
Luggage Socket: Tern Combo Mount
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans LED
Fenders: Aluminum, stainless hardware
Rack: Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
Frame Lock: AXA, keyed-alike with Bosch battery
