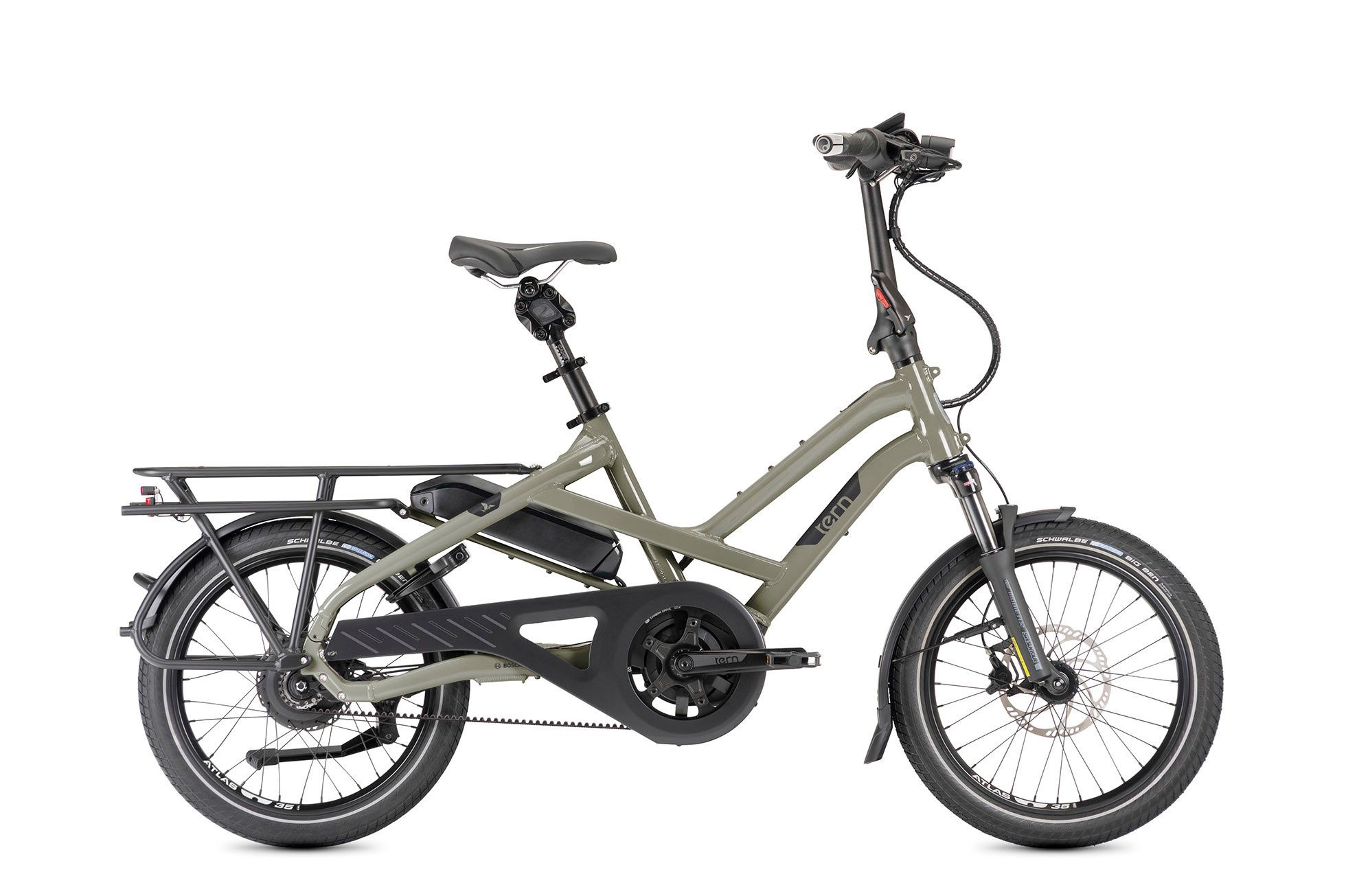

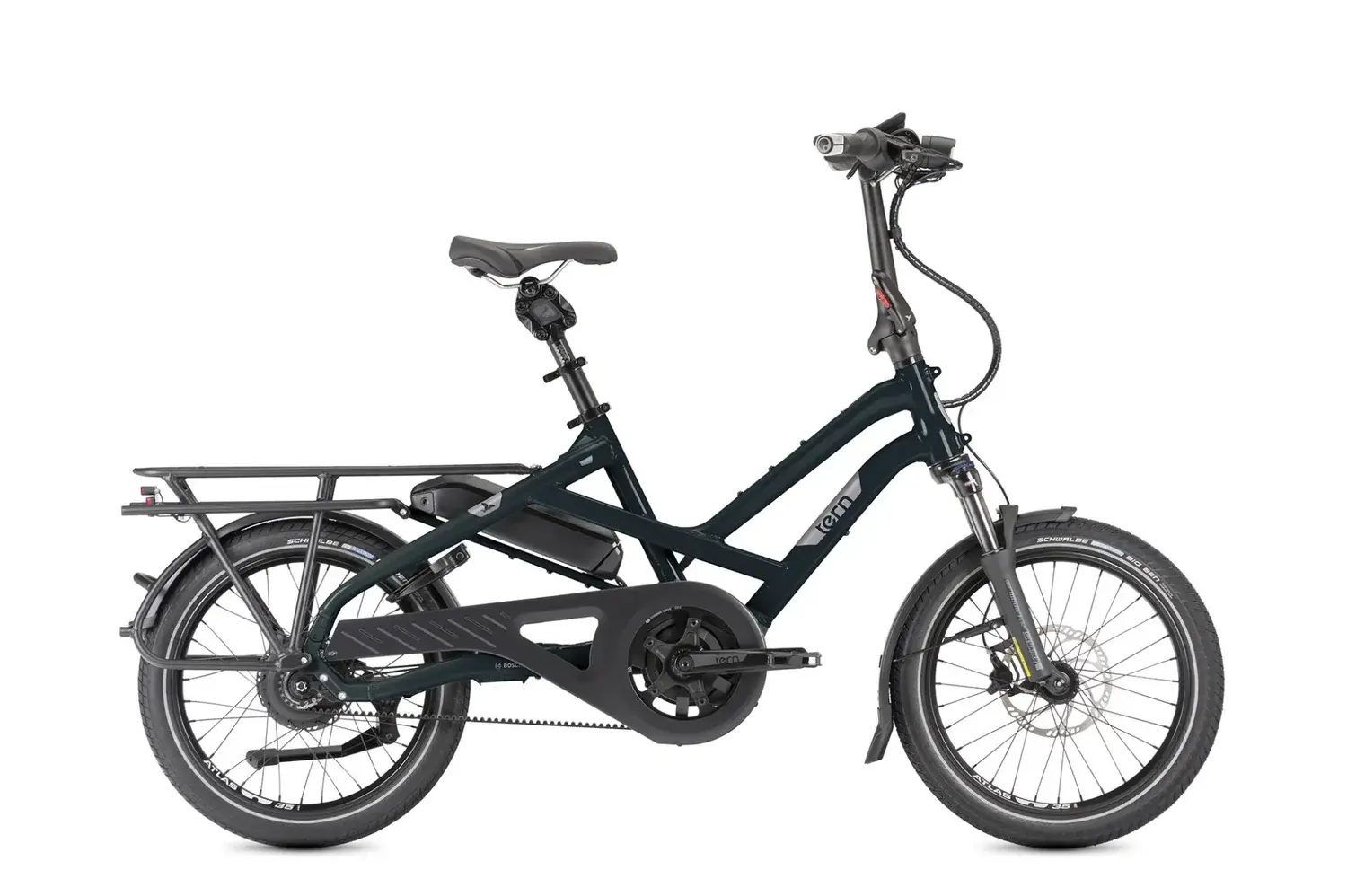

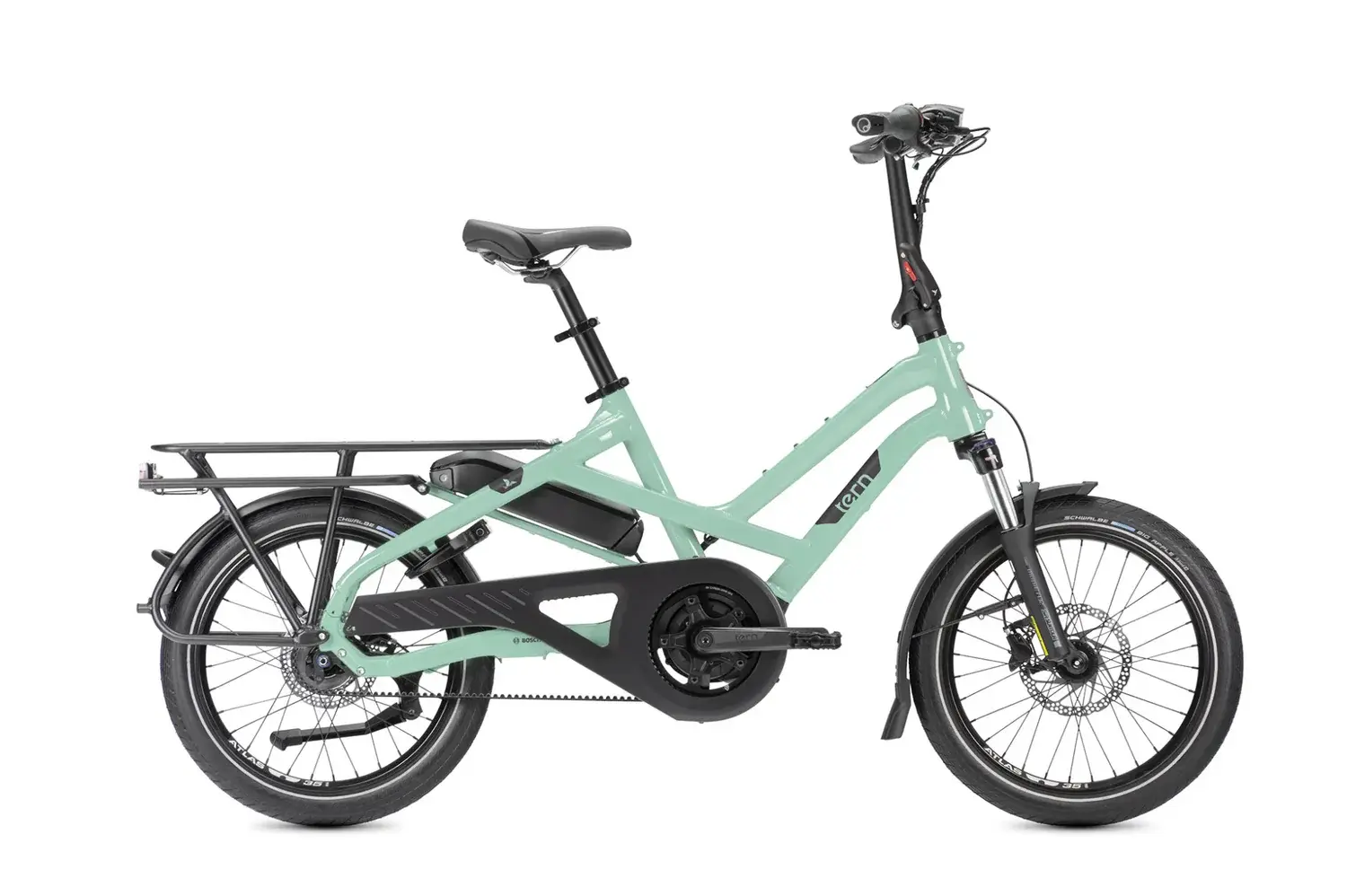

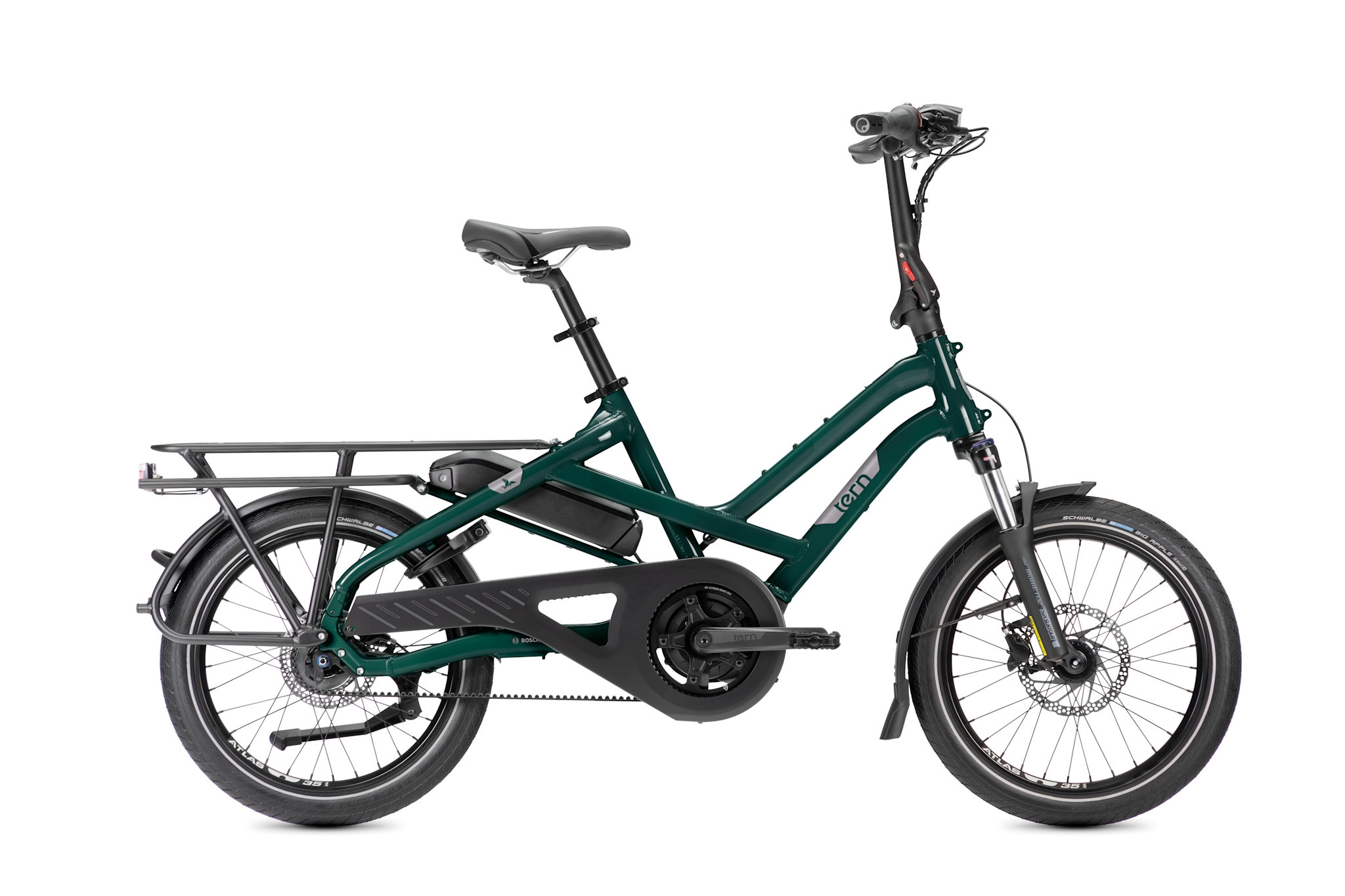

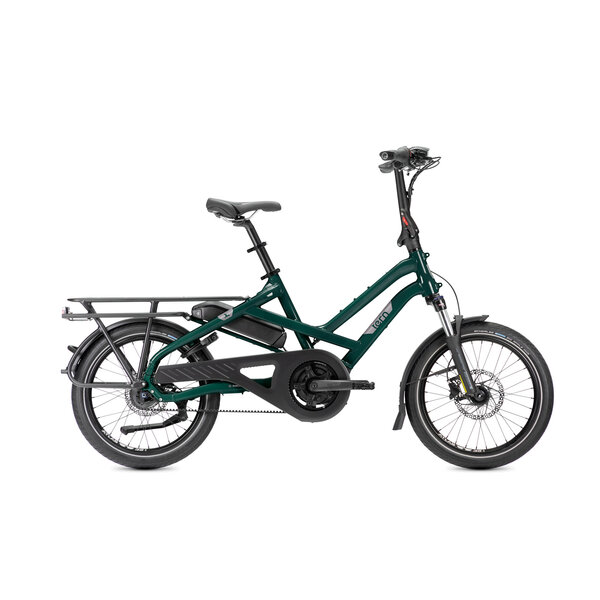

TERN Tern HSD P5i EU Gen 2 Electric Cargo Bike

Information

Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%. Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking. Kiox 300 color display that automatically activates eBike Lock when removed from the bike.

General Info
Speeds:
∞
Weight:
28 kg (61.7 lb)
Gear Inches:
28" - 106" (2.23 - 8.47 m)
Frame Sizes:
One size
Folding Size:
165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
Folding Time:
5 seconds
Distance: Seatpost to Handlebar:
52 - 62.5 cm (20.5 - 24.6 in)
Distance: Saddle to Pedal:
76 - 110 cm (29.9 - 43.3 in)
Suggested Rider Height:
150 - 195 cm (59.1 - 76.8 in)
Max Gross Vehicle Weight:
180 kg (396.8 lb)
Max Rider Weight:
120 kg (264.6 lb)

Frame
Frame:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern Upright by Velo
Seatpost:
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar

Brakes
Front Brake:
Magura MT4, hydraulic disc, 180 mm rotor
Rear Brake:
Magura MT4, hydraulic disc, 160 mm rotor
Brake Levers:
Magura MT4 e-stop, hydraulic, with brake light sensor
Brake Cable & Housing:
Magura, hydraulic

Wheels
Front Wheel:
Tern Atlas H, cargo wheel
Rear Wheel:
Tern Atlas H, cargo wheel
Front Hub:
Novatec, Thru-axle, sealed bearings
Rear Hub:
Enviolo Heavy Duty, 380% continuously variable range
Spokes & Nipples:
Stainless steel, double-butted
Rims:
Tern Atlas H, wide 35 mm
Tyres:
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification

Transmission
Shifter(s):
Enviolo, Twist
Crankset:
Tern HSD custom, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Motor integrated
Chain:
Gates Carbon Drive CDX belt
Pedals:
Urban with non-slip surface, sealed bearings

E-System
Motor:
Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 545
Display:
Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Lock & Alarm:
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Range:
545 Wh: 51-121 km (32-76 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Ursus, rear mount
Luggage Socket:
Combo Mount
Front Light:
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light:
RearStop Brake Light, Always on
Fenders:
SplashGuard, stainless hardware
Rack(s):
Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
Frame Lock:
ABUS, keyed-alike with Bosch battery
