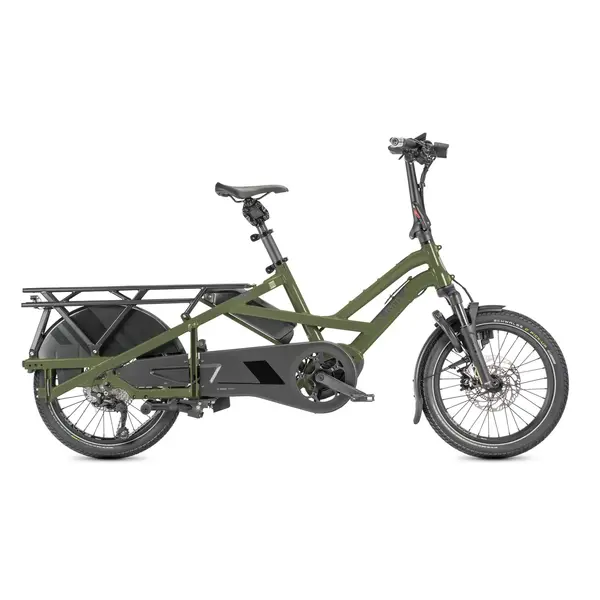

Tern GSD S10 LX Gen 3 Electric Cargo Bike
€7.022,00
Typically ships in 10–15 days
The new GSD takes the family electric cargo bike to a whole ‘nother level. Smarter than ever and packing even more muscle with a re-engineered frame that handles a max gross vehicle weight of 210 kg Read more
Information
The new GSD takes the family electric cargo bike to a whole ‘nother level. Smarter than ever and packing even more muscle with a re-engineered frame that handles a max gross vehicle weight of 210 kg
Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern GSD by Velo
Seatpost: Tern VLT 41/34.9 mm, with Cane Creek suspension and LightAction levers
Seatpost Clamp: Tern Collar
Front Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers: Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing: Magura ABS, hydraulic
Front Wheel: Tern Atlas, heavy duty cargo wheel
Rear Wheel: Tern Atlas, heavy duty cargo wheel
Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples: Stainless steel
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires: Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
Shifter: Shimano Deore, 1 x 10 spd
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern GSD, forged 6061-AL DH crankarm
Cassette/Freewheel: Shimano 11-42T, 10 spd
Bottom Bracket: Motor integrated
Chain: KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Display: Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock
Range: 545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System: Bosch Anti-Lock Braking System, Gen 2
Bell: Pitch Plus, brass
Chainguard: Tern GSD, full chain cover
Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket: Combo Mount
Front Light: Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light: RearStop Brake Light, Always on
Fenders: F: Aluminum R: GSD wheel guard
Rack: Atlas G, 100 kg (220 lb) capacity
Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
On-board Charging: USB-C, 5V/2.4A, 12W max
