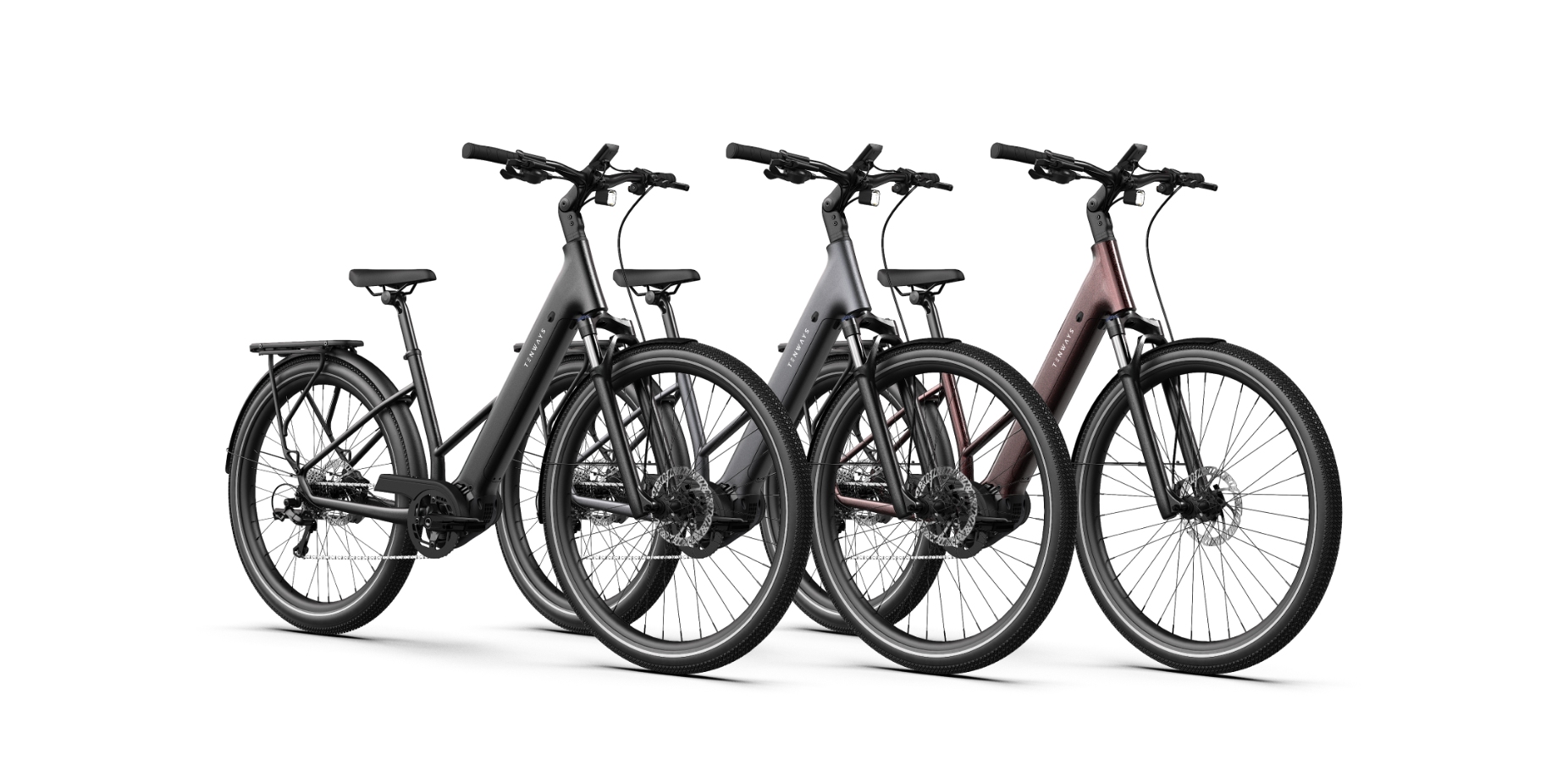

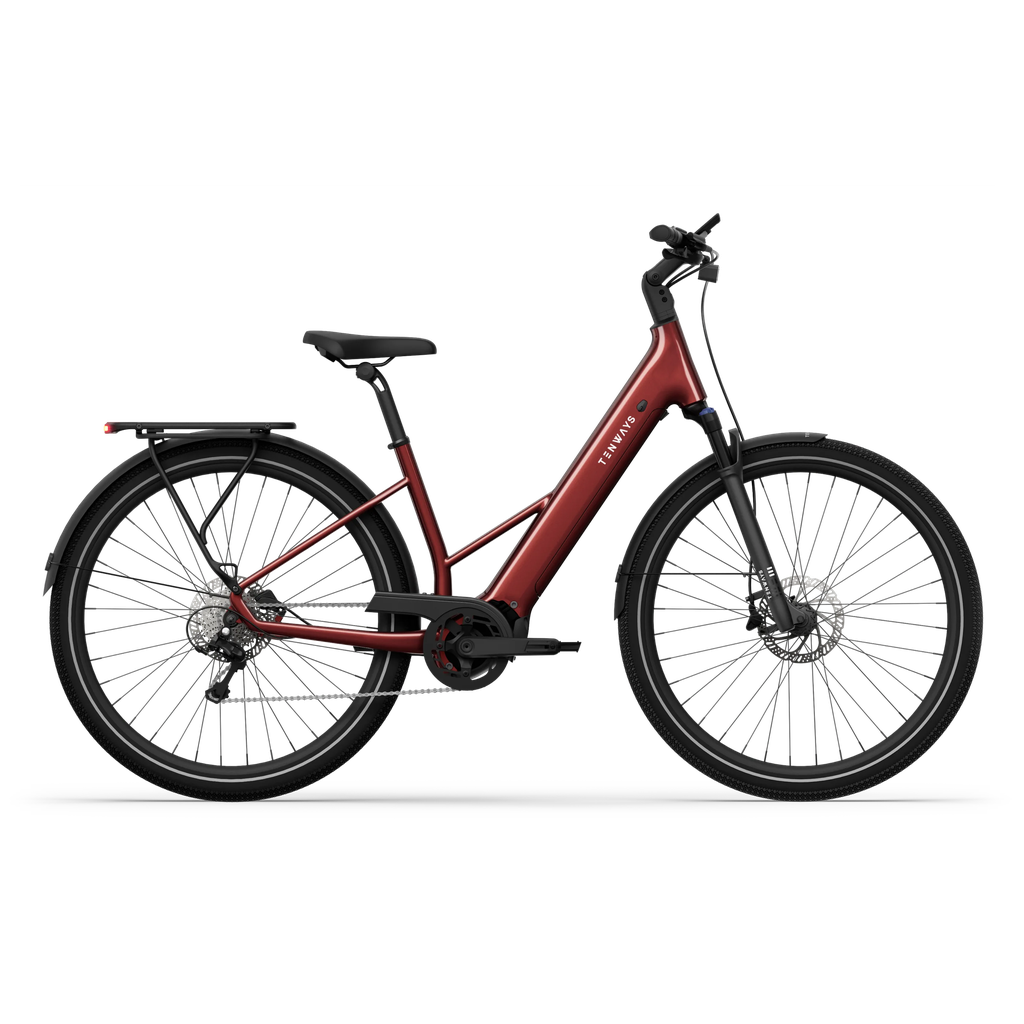

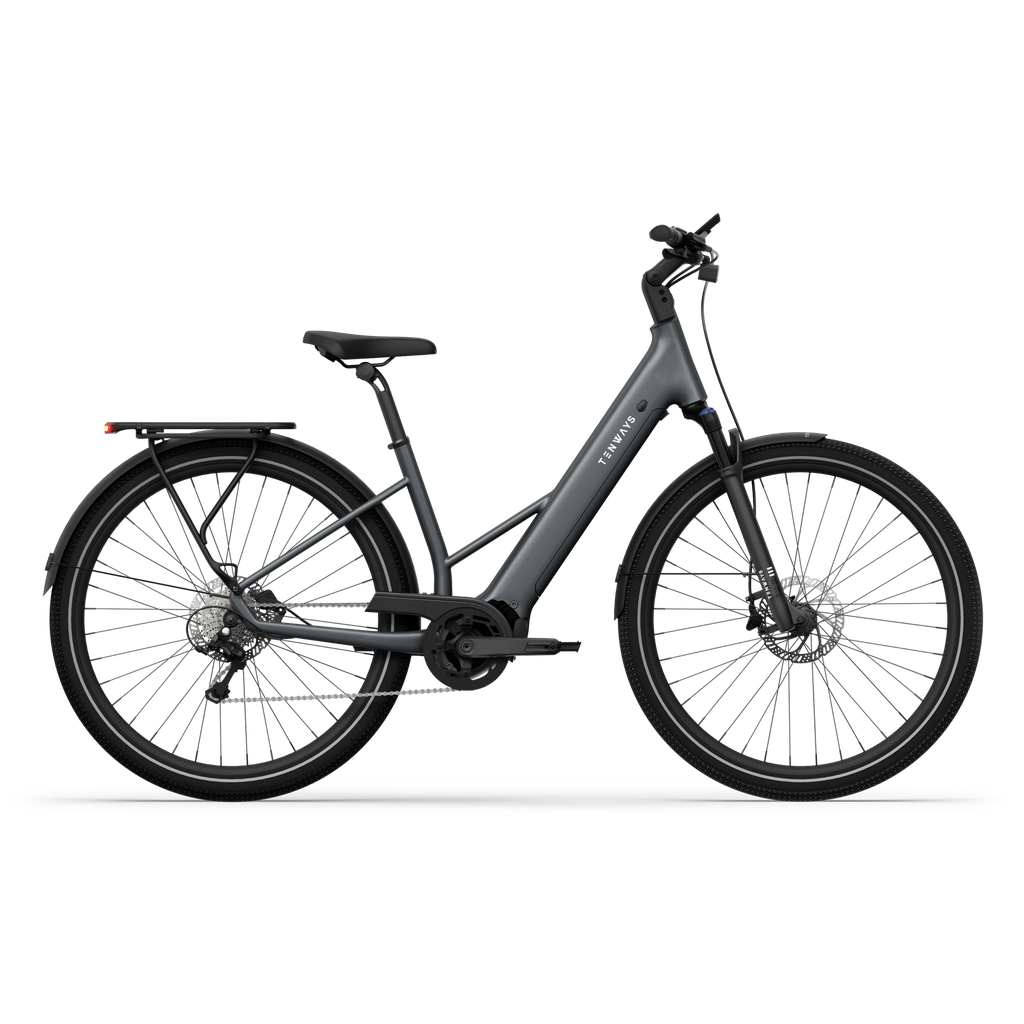

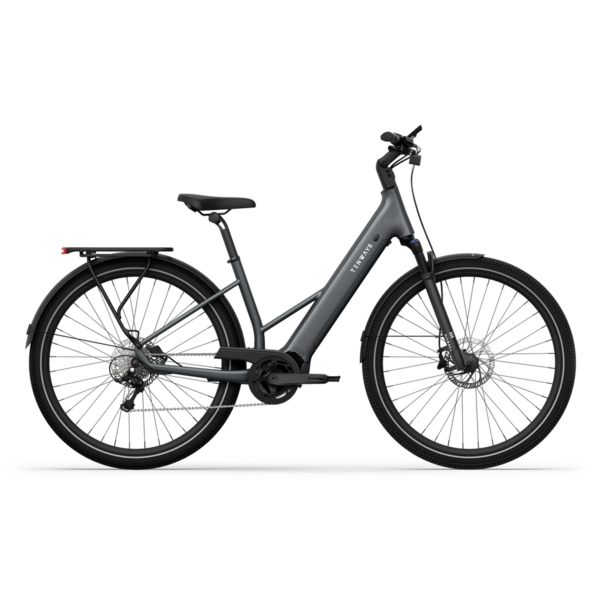

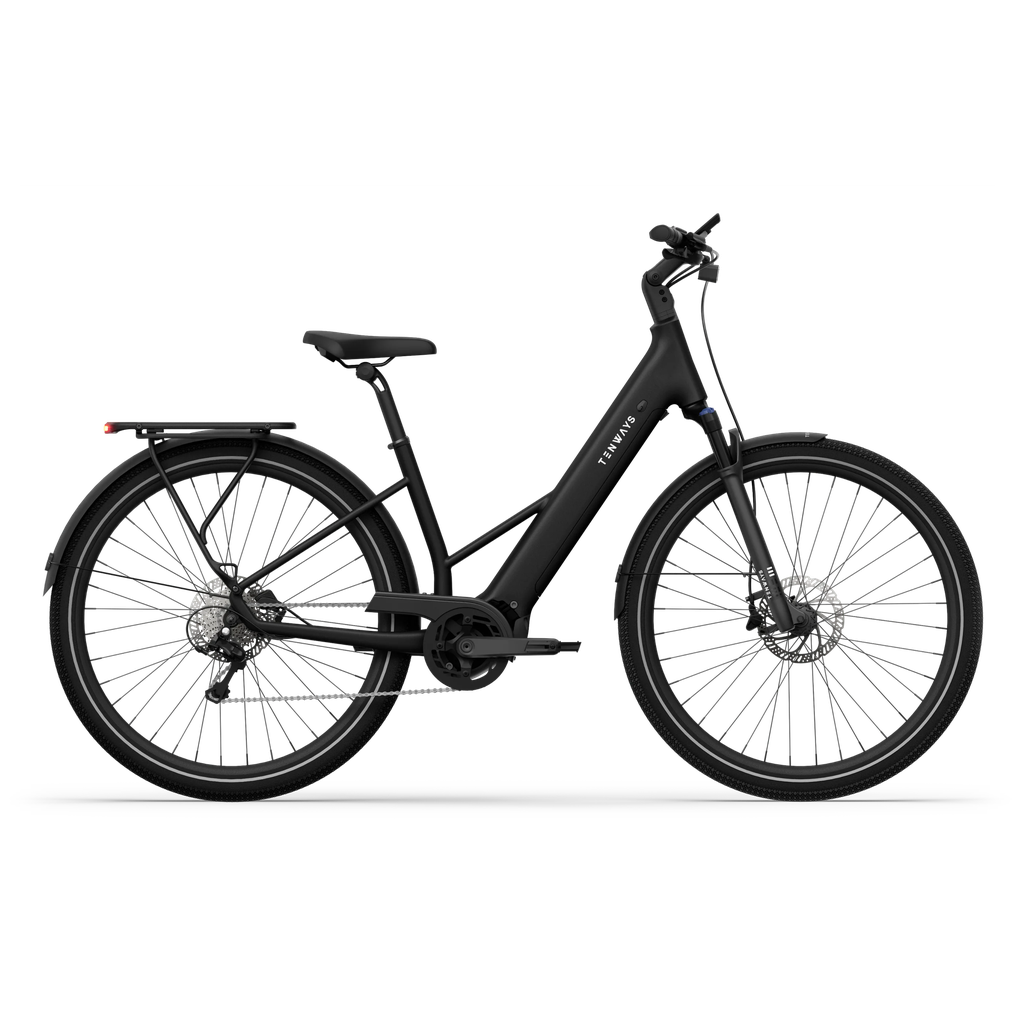

Tenways AGO Air 9 Speed Electric City Bike MY25

Information

• frame : AGO AIR frame,dwg:AT45D19-432,Ebike frame (mid motor),,Grey
• fork: 188NS-700C-HLO,alloy,balck ø24.6*ø28.6*252mm,travel 65mm,SUSPENSION
• fork-suspension-travel: 65
• derailleur: ARDU4000GS，REAR DERAILLEUR, RD-U4000, CUES
• shift-levers: ASLU40009RC SHIFT LEVER, SL-U4000-9R, CUES
• front-derailleur: No
• bidex-gs: GS10
• brakes: Shimano hydraulic disc brake MT200
• brake-front: AMT200JLFPRX095,DISC,BRAKE,ASSEMBLED
• brake-rear: AMT200JRRURX175,DISC,BRAKE,ASSEMBLED
• brake-levers: Aluminium, 4-Finger
• brake-lever-front: Shimano hydraulic disc brake MT200
• brake-lever-rear: Shimano hydraulic disc brake MT200
• brake-disc-front: Tektro, TR160-52
• brake-disc-rear: Tektro, TR160-52
• rims: J24SE double wall MATT Black,A/V
• rim-front: 29""*1.5*14G*36H,height 20.3,inner 24.2,outer 29.8
• rim-rear: 29""*1.5*14G*36H,height 20.3,inner 24.2,outer 29.8
• tires: K1185,rubber,60TPI,black,stab-proof,w/ reflective stripe
• tire-front: 700C*50C,
• tire-rear: 700C*50C,
• hubs: FORMULA
• hub-front: DC-213,2 bearing,disc rotor type,aluminum,anode black
• hub-rear: DC-216,2 bearing,disc rotor type,aluminum,anode black
• spokes: Stainless steel 304 C17,14G,286mm,black,w/ 16mm milling-slot copper cap(light yellow)&284mm,black,w/ 16mm milling-slot copper cap(light yellow)
• handlebar: MHB-A6009BT,aluminum,matt black,riser handlebar,W:700MM,fit with stem φ31.8MM,H=40MM,12°,grip distance≥185MM
• stem: EAS-JD6609-8/0,aluminum,matt black,intergrated,E:100mm,fit for handlebar φ31.8mm,fit for fork tube φ28.6*35mm,angle adjustable:0° to +90°,cover fit for front light hanger inner diameter 10mm,φ6 hole,w/o LOGO,original angle 0°
• headset: H886G inside cable threading head set,hidden toothless head set,aluminum,matt black,Φ28.8*Φ56*Φ39.8
• grips: HL-G170,black,130MM,bi-pass,w/ black plug,aluminum anode black locking ring,black stainless steel screw
• saddle: Saddle A037D,w/satey line,W/o clamp',270*200mm,
• seat-post: ESP-D609,aluminum,matt black,ø30.4*350mm*3.2T,Offset 21mm
• crankset: PROWHEEL alloy 170mm, powder sand black w/o fixing bolt
• drive: SHIMAO 9-Speed+MID Motor+Chain
• sprockets: PROWHEEL Alloy 40T Chainwheel /SHIAMNO 9-SPEED CASSETTE 11-41T
• pedals: 23ZP,copper bearing,aluminum body+TPR edge,black,9/16"",BS/CPSC/DIN standard reflector
• front-light: AGO AIR)DH011,front light,LED,12-48V,w/ 2-core cable length w/ end 150mm
• rear-light: rear light，model COBC,6-36VDC,IPX5
• mudguards: YSHJD58F-700C-003/YSHJD58R-700C-020,AGO AIR,D58,aluminum reinforced,matt black,outer wide 58MM,height 19mm,front & rear U-type black stainless steel adjustable mudguard stay
• motor: M410 mid motor system 250W,700Ｃ,25KM/H,torque 80N.m
• battery: Battery,36V,15.6AH,LG21700 cell 5200MAH,30 pcs cells,4 core charging port female end (HG-Z411AM),6P discharge connector,limitation 15A,BMS/CANBUS(fit for Bafang M410)
• display: BC240+Ｋ31 color display,one-side assembled stand,36V,700C,25KM/H
• charger: LBC045100301,for lithium battery,backflow prevention,36V/42V,3A input voltage 100-240V,charging plug new EU standard EN50604 4 hole 3 pin (HG-Z411,red+
• black-,yellow 5V recognition),AC wire plug small EU standard two core/C type plug
