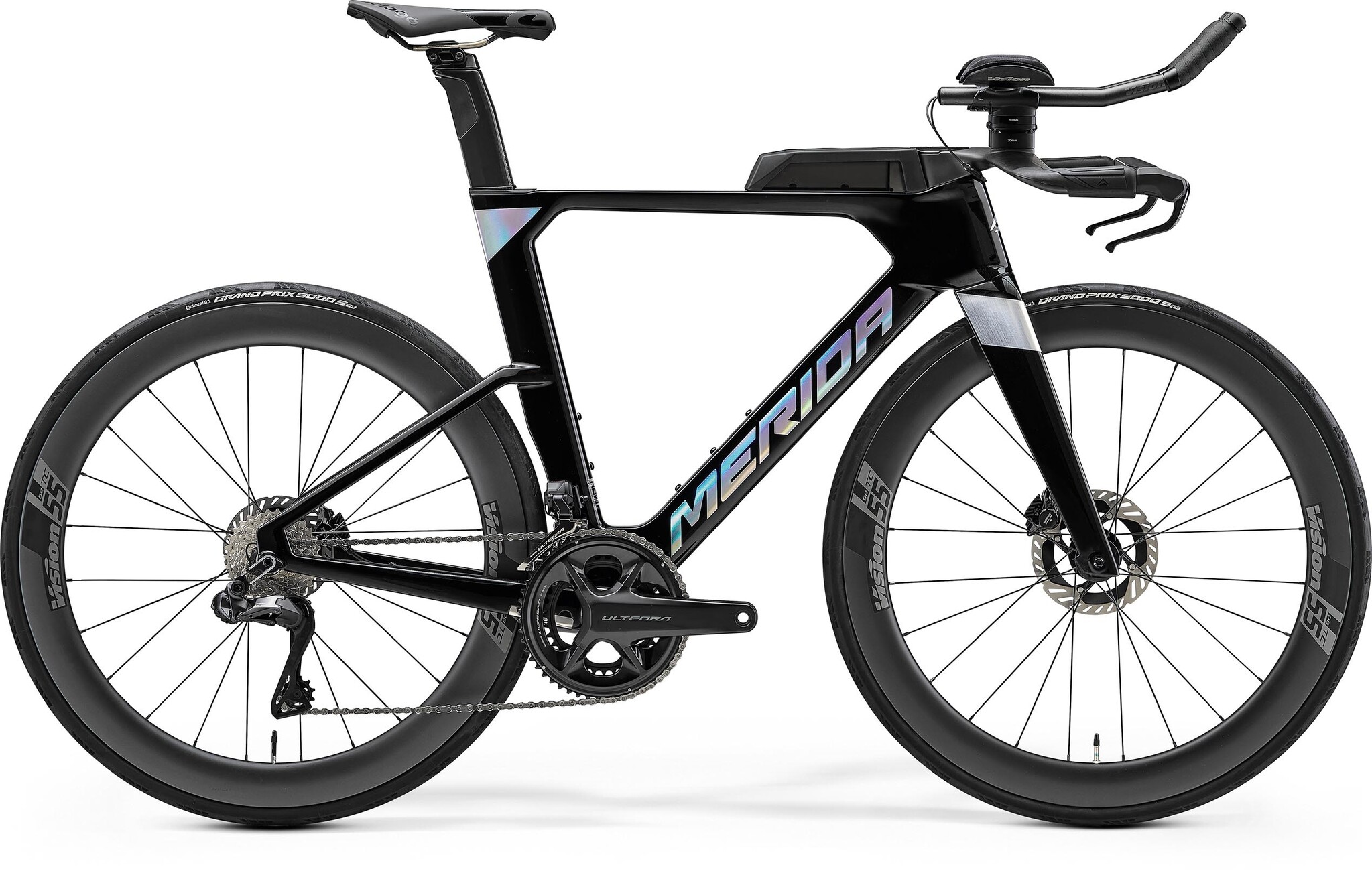

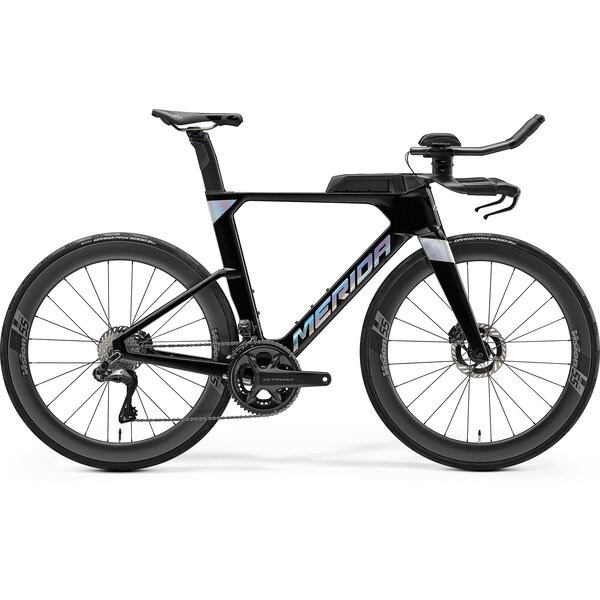

Merida Time Warp Tri Limited Road Bike

Information

A passion project for our legendary R&D Chief Juergen Falke, the Warp Tri drew on many of the aero learnings from the Pro Tour TT bike using a superlight CF5 frame for ultimate performance but incorporated a lot of thinking about comfort and efficiency as Juergen a seasoned Ironman competitor was very aware of the demands of different courses and distances. The Vision Metron S-Bend cockpit allows for multiple position adjustments for a perfect riding position on any course as well as provide outstanding control on even the most demanding of sections.

• Frame: CF5 IV carbon - Premium fibres for lightweight and performance, Internal cable routing, 142 x12mm axle standard, flat mount rear brakes, Pressfit 86.5 BB Standard, Max tyre size - 30c
• Fork: Time-Warp Tri CF5 IV; Full carbon, tapered steerer, Max tyre size: 700 x 30c
• Headset: Meida TIME WARP TT
• Stem: Merida Metron TT; carbon; -17 degree rise
• Handlebar: Merida Metron TT; carbon
• Grip: Merida Expert
• Brake Type: Hydraulic disc
• Front Brake: Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
• Rear Brake: Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 140mm rotor
• Tyres: Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
• Wheel Size: 700c
• Rim: Part of wheelset - Vision TC55; 19mm inner rim width; 55mm rim depth; carbon; Tubeless ready (tubeless tape and valves not included)
• Front Hub: Part of wheelset - Vision TC55; 100 x 12mm; Centerlock
• Rear Hub: Part of wheelset - Vision TC55; 142 x 12mm; Centerlock
• Speeds: 24
• Front Derailleur: Shimano Ultegra Di2; FD-R8150
• Rear Derailleur: Shimano Ultegra Di2; RD-R8150
• Shift Levers: Shimano ST-R9180
• Chain: Shimano CN-M8100-12
• Cassette: Shimano CS-R8101; 11-30 teeth; 12 speed
• Chainset: Shimano Ultegra; 52-36 tooth chainset; Crank length - 170mm (XS), 172.5mm (S/M), 175mm (L)
• Bottom Bracket: SM-BB72-41B, Pressfit 86.5
• Saddle: Prologo Zero Tri PAS Tirox
• Seat Post: Merida Team TT II; Aero shape; Carbon
