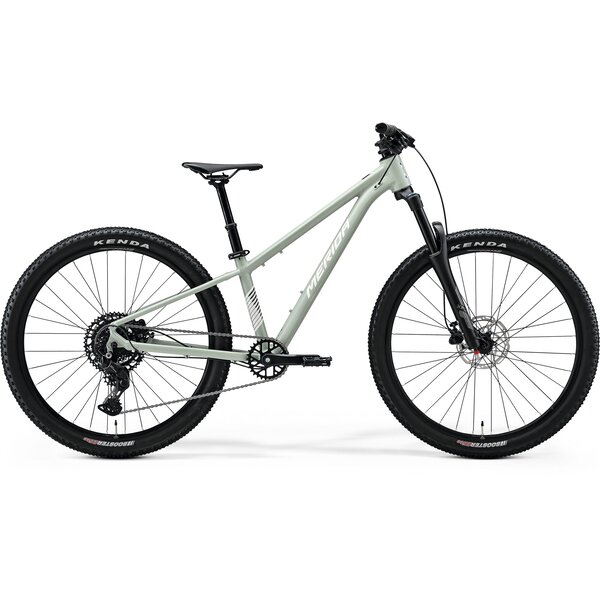

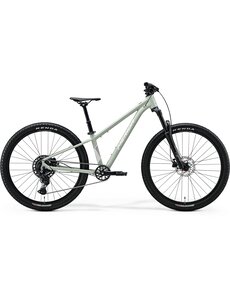

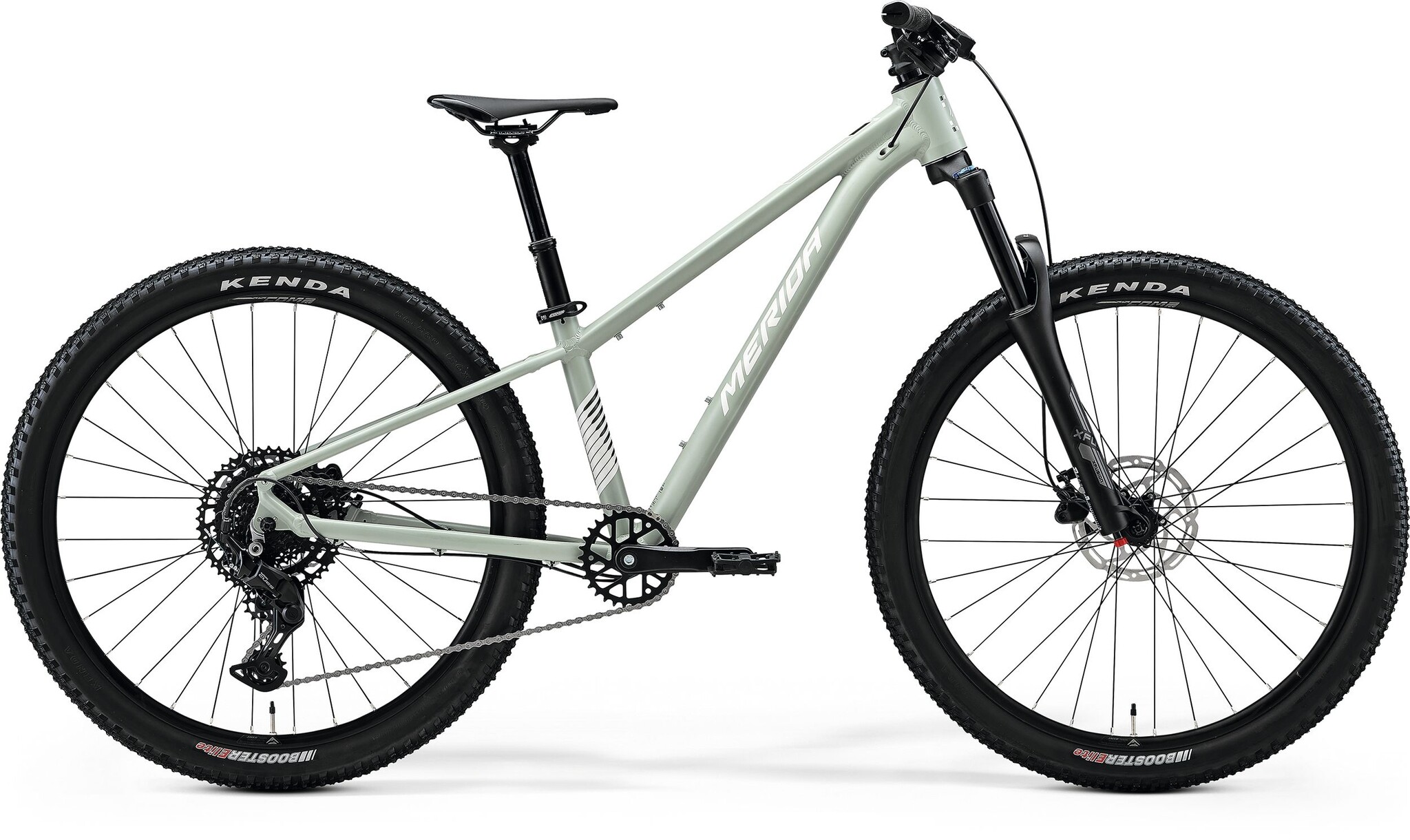

Merida Merida Matts J.Champion - Silk Early Moss Grey (White) - MY26

Information

Everything a young rider needs to become a Champion of tomorrow - and nothing they don’t. The Matts J Champion has a lightweight aluminium frame with 26” wheels, married to the same quality of components offered by our adult bikes, but with finishing kit suited to their needs. A proper suspension fork, dropper seat post and hydraulic disc brakes guarantee control on real mountain bike terrain, while a wide-range Shimano drivetrain make hills easy. Suits heights from approx. 137-150 cm tall.

• Frame: TFS - 6061 series aluminium tubing, double butted and technoformed.  Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing, BSA BB standard. Max tyre size 27" x 2.25"
• Fork: X-Fusion RC32 120mm; 120 mm travel; Lockout; 46mm fork offset; 27.5x2.4" max. tyre size
• Headset: FSA NO.55R/57SC/57B
• Stem: Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
• Handlebar: Merida CC; material: aluminium; 640mm wide; 15mm rise
• Grip: Merida Expert JR
• Brake Type: Hydraulic Disc
• Front Brake: Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
• Rear Brake: Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
• Tyres: Kenda Booster K1227; 26x2.2"; foldable
• Wheel Size: 26"
• Rim: Merida CC; 17mm inner rim width; material: aluminium
• Front Hub: Shimano TX505; 100x9mm; 32 Spoke; Centerlock
• Rear Hub: Shimano TX505; 135x9mm; 32 Spoke; Centerlock
• Speeds: 9
• Rear Derailleur: Shimano Cues U4000; GS
• Shift Levers: Front: Limotec RM06, Rear: Shimano Cues U4050; short reach
• Chain: KMC xGlide
• Cassette: SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
• Chainset: Prowheel A10B; 30 tooth chainset; material: aluminium; Crank length: 140mm
• Bottom Bracket: Squared LL123
• Pedals: VP VPE-229
• Saddle: Merida Expert JR
• Seat Post: Merida Comp JR; 30.9mm diameter; 100mm diameter; in-line; material: aluminium
