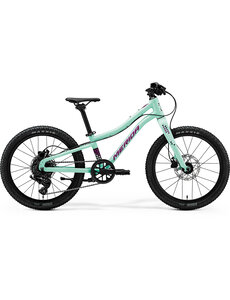

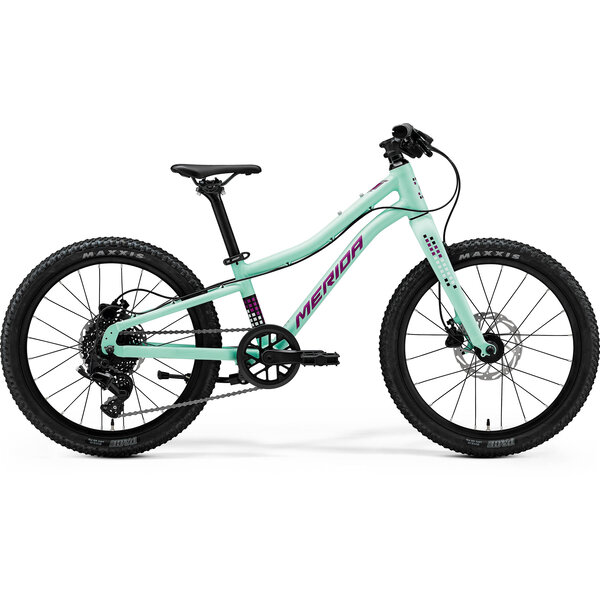

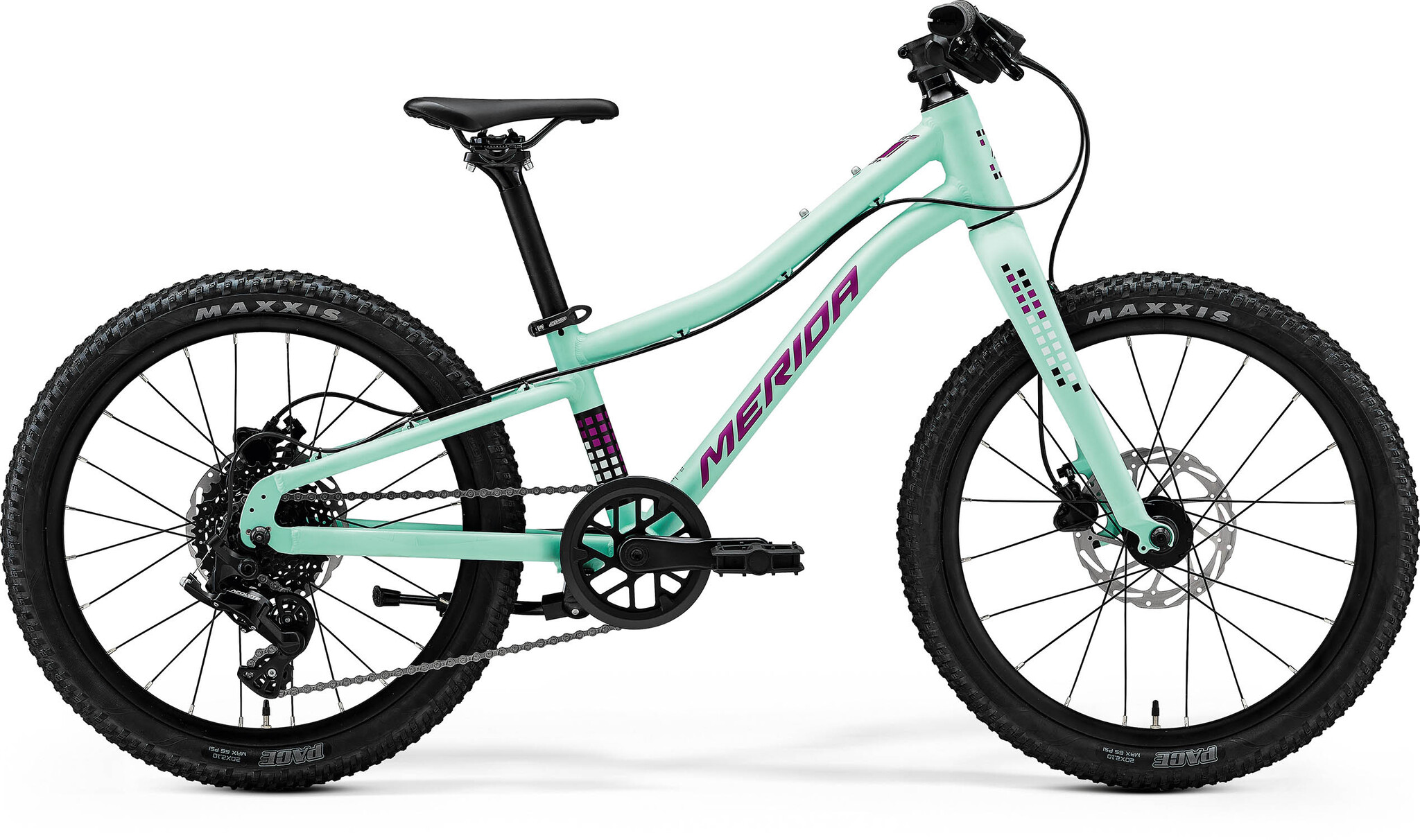

Merida Merida Matts J.20+ - Matt Mint (Purple/Wht/Blk) - MY26

Information

It’s all about lightweight for kids; all our bikes have rigid forks as cheap suspension forks tend to work poorly and weigh a lot. We use 1x drivetrains with trigger shifters to keep shifting simple, further reducing the overall weight. All components are as light and child-focused as possible. The flip-flop stem and spacers allow for growth, extending the life of the bike. Suits heights from approx. 109-129 cm.

• Frame: TFS - 6061 aluminium tubing, double butted and technoformed. BSA BB standard, 9mm QR axle standard. Replaceable dropout. Max tyre size 20" x 2.4"
• Fork: Merida material:TS J. 20+; material: aluminium; 20x2.4" max. tyre size
• Headset: FSA NO.10P Neck15
• Stem: Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
• Handlebar: Merida Expert JR; material: aluminium; 560mm wide; 25mm rise
• Grip: Merida Expert JR
• Brake Type: Hydraulic Disc
• Front Brake: Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-52; 160mm
• Rear Brake: Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-52; 160mm
• Tyres: Maxxis Pace; 20x2.10"; wired
• Wheel Size: 20"
• Rim: Merida JR 20+; material: aluminium
• Front Hub: KT-K68F; 100x9mm; 20 Spoke
• Rear Hub: KT-TD7R-M10; 135x9mm; 24 Spoke
• Speeds: 8
• Rear Derailleur: Microshift Acolyte Speed Super Short Cage; RD-M5180S; Super short cage
• Shift Levers: Rear: Microshift Acolyte Quick Trigger Pro; SL-M6285-ER; Super short reach; Gear indicator; single click
• Chain: KMC Z8.3
• Cassette: Sun Race M55; 11-34 teeth; 8 speed
• Chainset: Prowheel A10PP; 32 tooth chainset; material: aluminium; Crank length: 114mm
• Bottom Bracket: Squared LL116
• Pedals: VP-225
• Saddle: Merida Comp JR
• Seat Post: Merida Comp CC; 27.2mm diameter; in-line; material: aluminium
