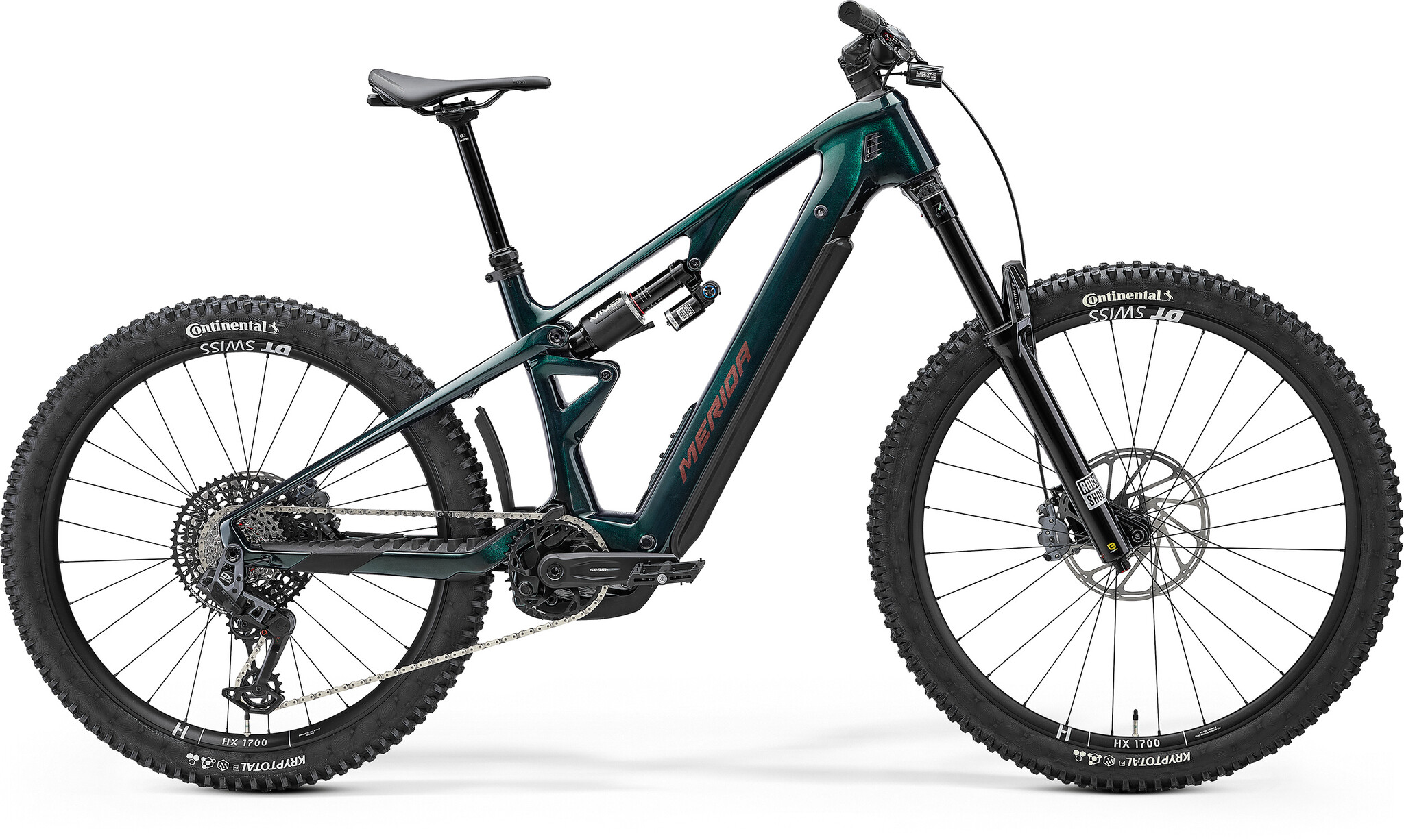

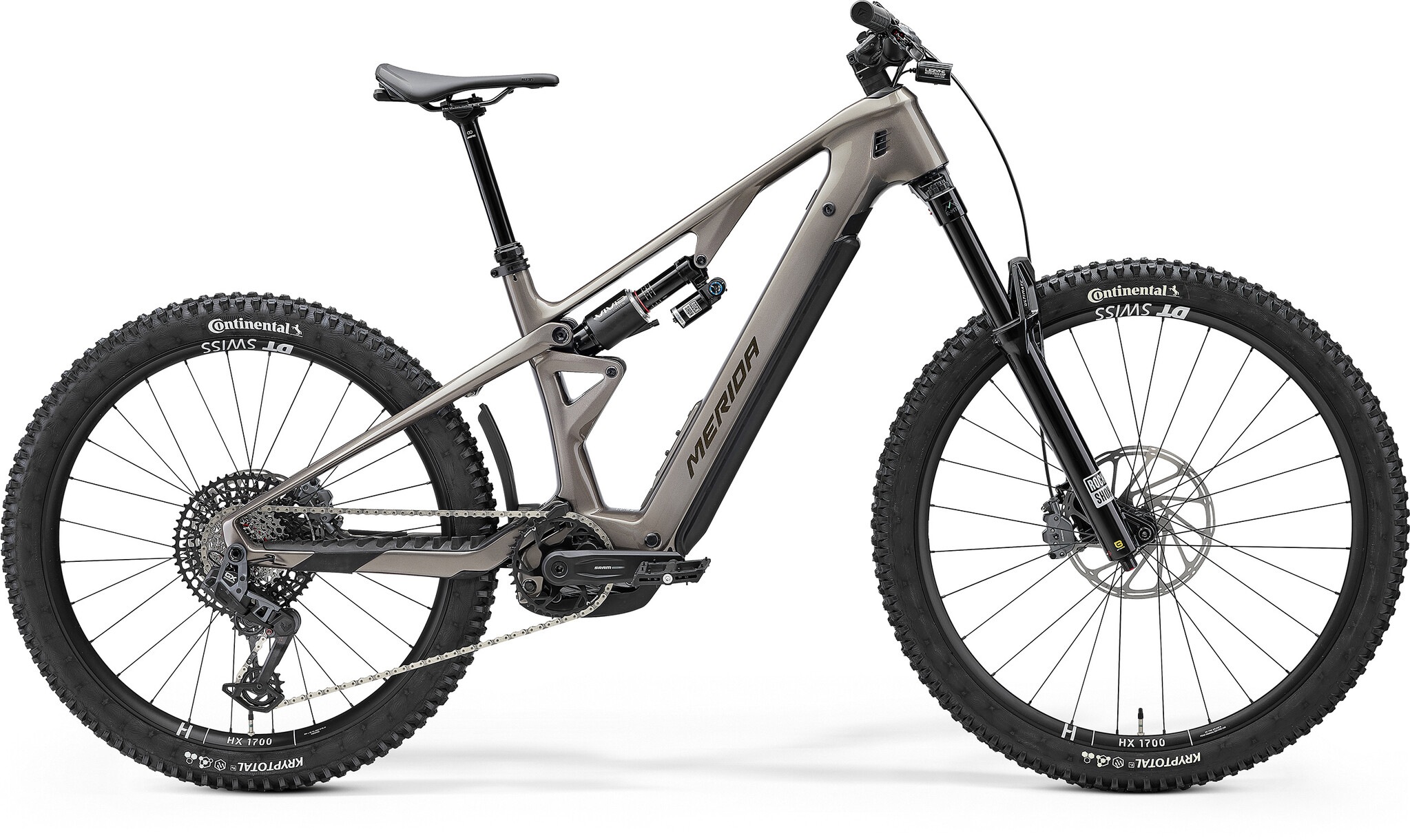

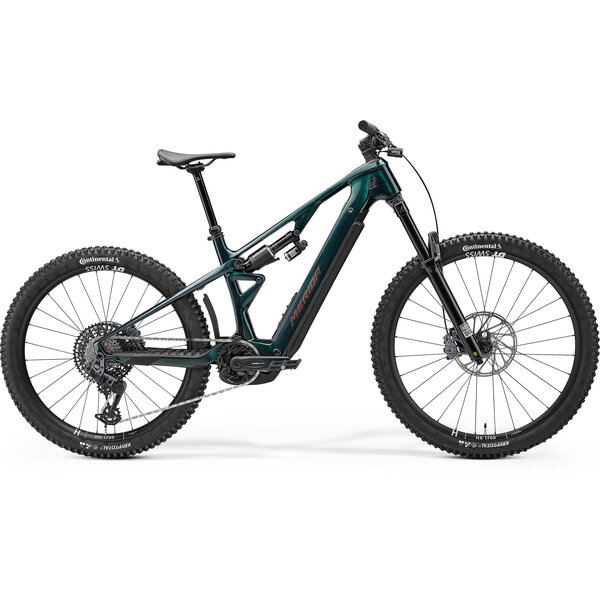

Merida Lithos 8000 Electric Mountain Bike
Information
The Lithos 8000 delivers the goods on technical trails and rough race tracks thanks to its lightweight, tough carbon fibre frame with 170 mm of travel and race-derived geometry. Designed to maximise grip and control on any terrain the sublime handling is paired with some of the best suspension components money can buy. This is the competitive privateers choice. With a full carbon frame and 170?mm of travel at either end, it’s built for the toughest tracks, pushing hard with friends and racing against the clock. The handling has been engineered to help you carry speed, no matter what the gradient or ground. The geometry is made to maximise traction on flat turns and confidence on steep sections with a longer chainstay and higher stack, while travel-adjustable dropper posts and our AGILOMETER sizing mean you can fine-tune fit and handling.
- Frame: Lithos CF I ; carbon; 160mm travel; 29 x 2,4 max. tyre size; 148x12mm axle standard, intube;
- Rear Shock: Rock Shox Vivid Ultimate
- Fork: Rockshox Zeb Ultimate eMTB; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6 max tyre size
- Headset: Acros ICR Merida Integrated neck w/ Blocklock
- Stem: Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes
- Handlebar: Merida Expert eTR; 780mm wide;
- Grip: Merida Expert TR
- Brake Type: Hydraulic disc
- Brake Lever: SRAM Maven Bronze
- Brake Calipers: Front: SRAM Maven Bronze; 4 piston caliper with Shimano RT64, 220mm rotor Rear: SRAM Maven Bronze; 4 piston caliper with Shimano RT64, 203mm rotor
- Tyres: Front: Continental Kryptotal-F; 29x2.4; folding; TR; Enduro casing; Super soft Compound Rear: Continental Kryptotal-R; 27.5x2.4 ; folding; Enduro casing, soft Compound
- Wheel Size: 29 / 27.5
- Wheels: Rims: Part of Wheelset - DT Swiss HX 1700; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included) Front Hub: Part of Wheelset - DT Swiss HX 1700; 110x15mm; 6-Bolt Rear Hub: Part of Wheelset - DT Swiss HX 1700; 148x12mm; 6-Bolt; SRAM XD
- Speeds: 12
- Rear Derailleur: SRAM GX Eagle Transmission AXS
- Shift Levers: SRAM dropper lever MMX and SRAM AXS Pod Controller
- Chain: SRAM GX Eagle Transmission; Flattop
- Cassette: SRAM CS XS 1275 T-TYPE 10-52; 12 speed
- Chainset: SRAM Eagle Transmission E-MTB for Bosch; 36 teeth; SRAM S1000 Eagle E-MTB Crank, 160mm all sizes
- Pedals: VP Components VP-532
- Saddle: Proxim Altius Steel; V-mount adapter; incl. Merida minitool
- Seat Post: Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm travel
- Motor: Bosch PowerTube 800; 800Wh, Bosch Performance Line CX-R
- Battery Capacity: 800Wh
- eBike Display: Bosch Kiox 400C
