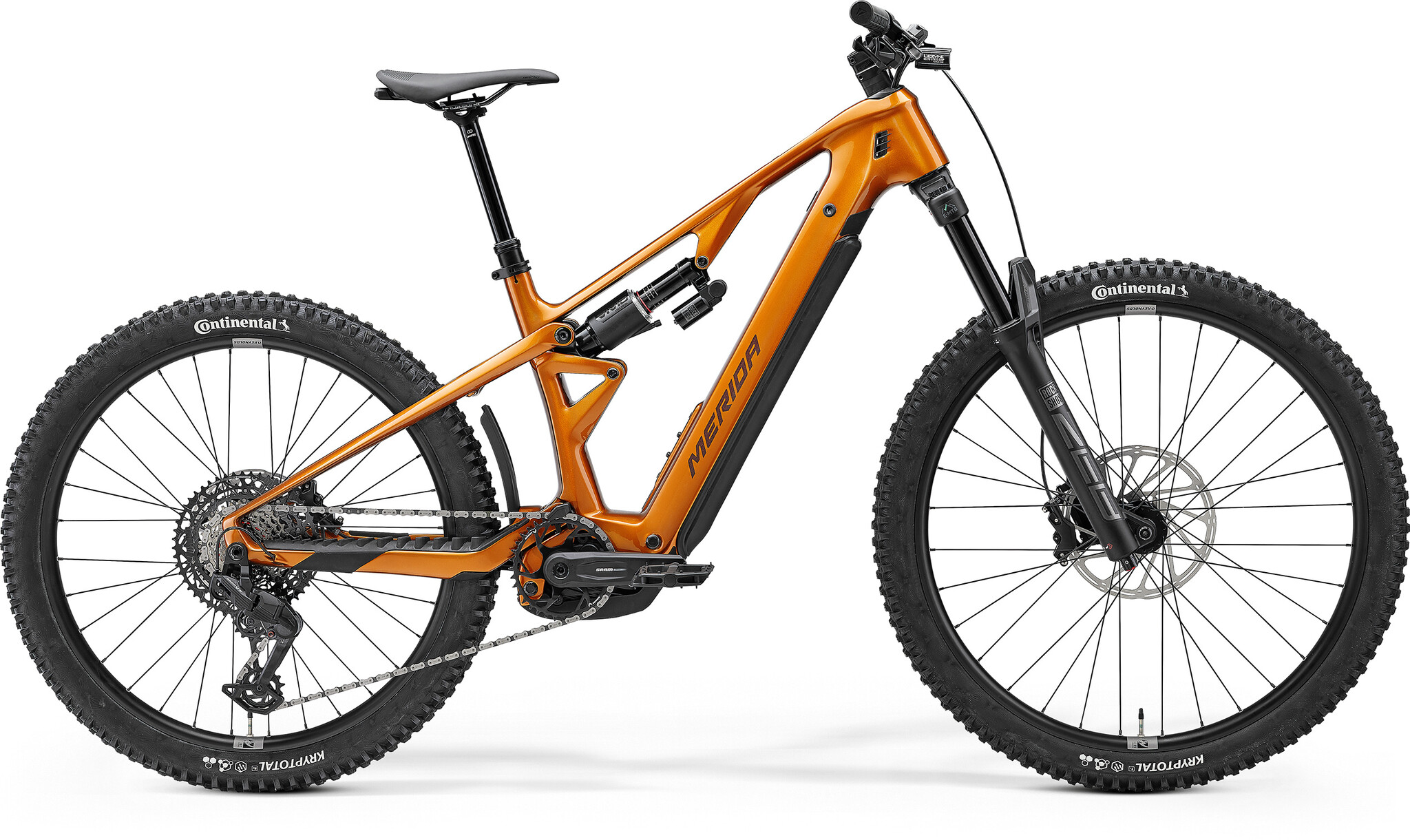

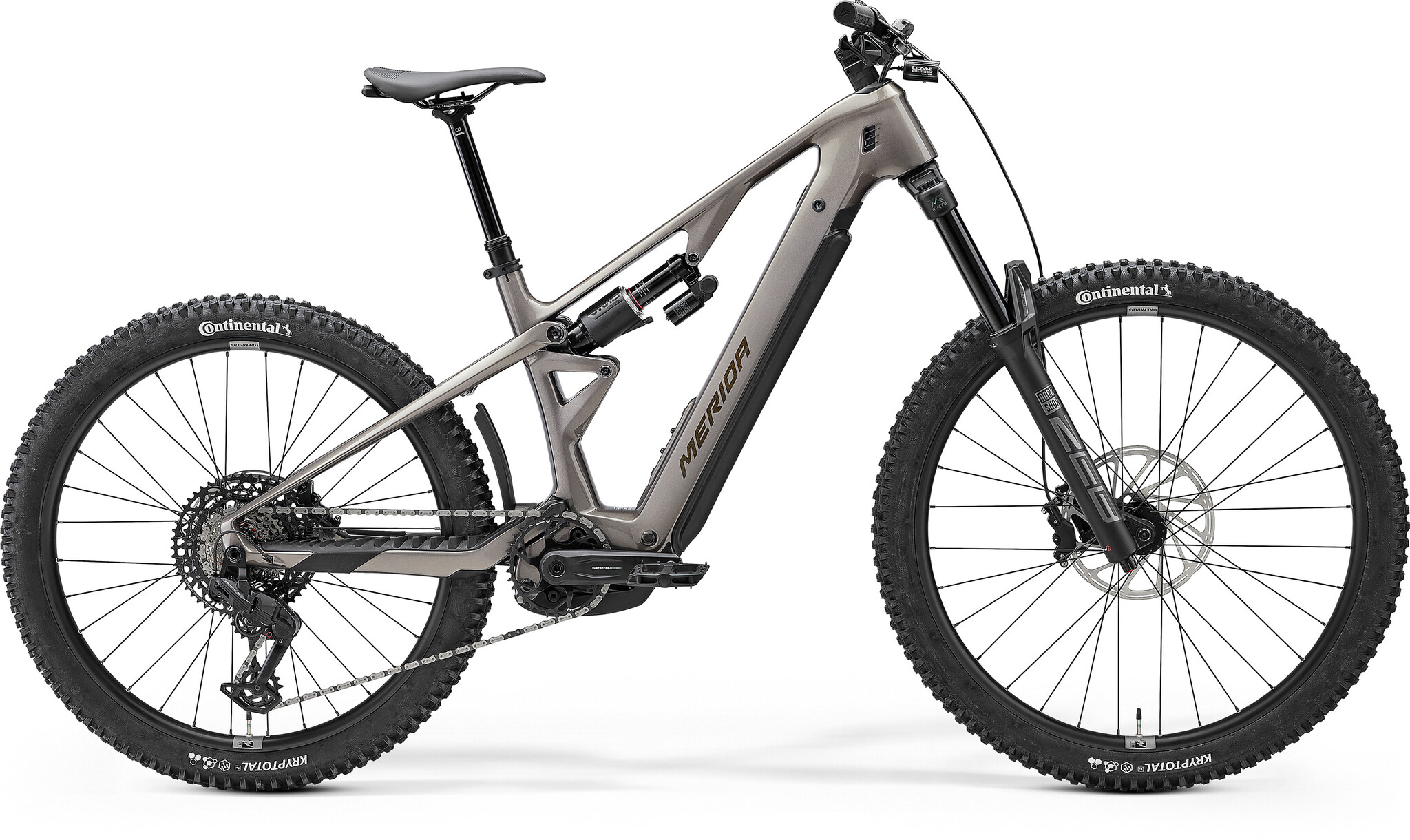

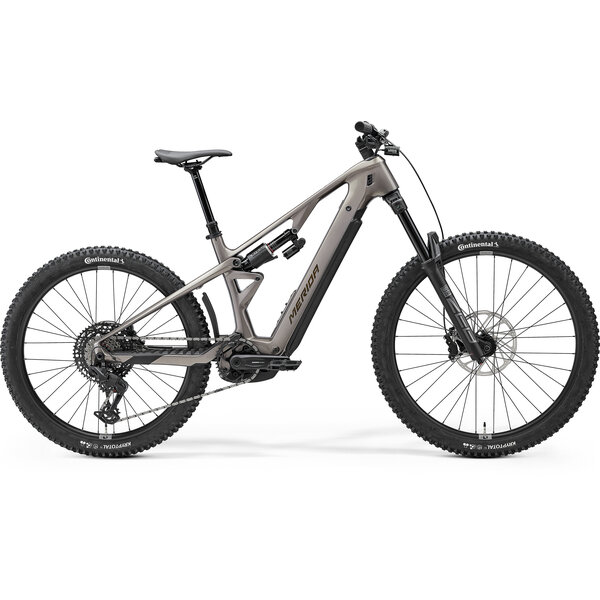

Merida Lithos 6000 Electric Mountain Bike

Information

The Lithos 6000 delivers a huge dose of e-enduro performance and value for any rider or racer. The carbon fibre 170 mm travel frame is paired with the hugely strong Bosch CX drive unit and a removable 800 Wh battery, so it's ready to ride and rip, whatever turn the trail takes. Planted handling and sublime traction from the race-derived geometry and kinematics are paired with high-value, high-performance components. With a full carbon frame and 170?mm of travel at either end, it’s built for the toughest tracks, pushing hard with friends and racing against the clock. The handling has been engineered to help you carry speed, no matter what the gradient or ground.

• Frame: Lithos CF I ; carbon; 160mm travel; 29 x 2,4 max. tyre size; 148x12mm axle standard, intube;
• Rear Shock: Rock Shox Vivid Base
• Fork: Rockshox Zeb Select eMTB; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6 max tyre size
• Headset: Acros ICR Merida Integrated neck w/ Blocklock
• Stem: Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes
• Handlebar: Merida Expert eTR; 780mm wide;
• Grip: Merida Comp TR
• Brake Type: Hydraulic disc
• Brake Lever: SRAM DB6 stealth
• Brake Calipers: Front: SRAM DB6 stealth; 4 piston caliper with SRAM CenterLine; 220mm rotor Rear: SRAM DB6 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor
• Tyres: Front: Continental Kryptotal-F; 29x2.4; folding; TR; Enduro casing; Soft Compound Rear: Continental Kryptotal-R; 27.5x2.4 ; folding; Enduro casing, soft Compound
• Wheel Size: 29 / 27.5
• Wheels: Rims: Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); front 29; rear 27.5 Front Hub: Shimano TC500-B; 15x100mm; 32 spokes; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock
• Speeds: 12
• Rear Derailleur: SRAM Eagle 70 Transmission
• Shift Levers: SRAM dropper lever MMX and SRAM Eagle 70 Transmission Shifter
• Chain: SRAM Eagle 70 Flattop Chain
• Cassette: SRAM CS XS 1270 T-TYPE 10-52 ; 12 speed
• Chainset: SRAM Eagle Transmission E-MTB for Bosch; 36 teeth; SRAM S1000 Eagle E-MTB Crank, 160mm all sizes
• Pedals: VP Components VPE-533
• Saddle: Merida Comp SL; V-mount; incl. Merida minitool
• Seat Post: Merida Expert TR II; 34.9mm diameter; 0mm layback; Travel: XS: 125mm - S: 150mm - M: 170mm - L: 200mm - XL: 230mm
• Motor: Bosch PowerTube 800; 800Wh, Bosch Performance Line CX
• Battery Capacity: 800Wh
• eBike Display: Bosch Kiox 400C
