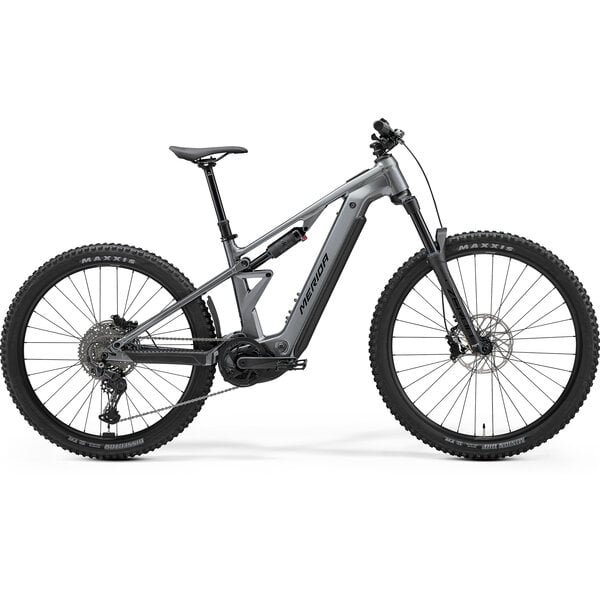

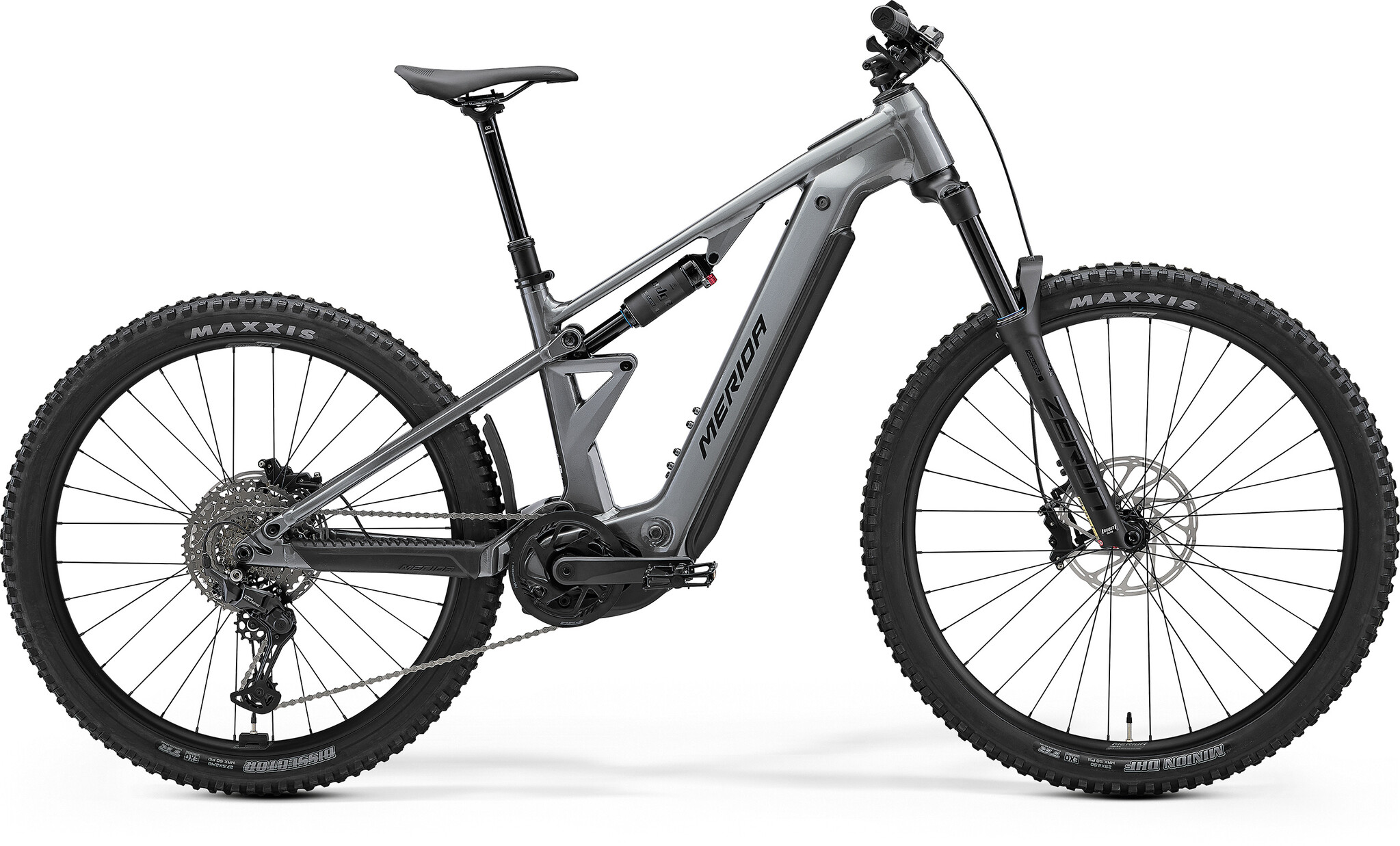

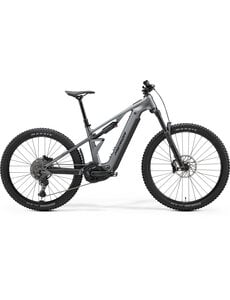

Merida Etmo 500 Pro Electric Mountain Bike MY26

Information

A quality e-MTB means more runs, more fun, and more time just getting out there. The Etmo is our most price-focussed Bosch-powered e-MTB. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame insped by the award-winning long-travel eOne-Eighty, but in an extra versatile and affordable package. We've backed this up with our lifetime frame warranty, too. * Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use The Etmo 500 Pro features a powerful Bosch CX 100 Nm motor and high-capacity 800 Wh battery, paired with our reliable aluminium full-suspension frame. Designed to be a serious off-road machine that won't break your budget, we've used Suntour suspension units to deliver on-trail performance, while the reliable shifts of the Shimano drivetrain and powerful SRAM brakes will keep things under control. Add in fun but planted handling thanks to a mixed wheel size setup and our well-proven geometry concept, and you're ready to ride.

• Frame: Lite I; aluminium; 140mm travel; removable intube battery;148 x12mm axle standard; Max. tyre size 29 x 2.6”
• Rear Shock: SR Suntour Edge X R
• Fork: SR Suntour Zeron 36X; Air; 140mm travel; Tapered; 44mm fork off set. Max. tyre size 29 x 2.6
• Headset: FSA NO.80/62 CR II Dual
• Stem: Merida Comp TR: aluminium; 35mm diameter; 0 degree rise; length: 40mm
• Handlebar: Merida Comp TR II: aluminium; 780mm wide; 35mm rise
• Grip: Merida Comp TR
• Brake Type: Hydraulic Disc
• Brake Lever: SRAM DB4 stealth
• Brake Calipers: Front: SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor Rear: SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor
• Tyres: Front: Maxxis Minion DHF; 29 x 2.5; EXO wired; tubeless ready Rear: Maxxis Dissector; 27.5 x 2.4  wired; tubeless ready
• Wheel Size: 29 / 27.5
• Wheels: Rims: Merida Comp TR II; 28mm inner rim width: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29; rear 27.5 Spokes: Black stainless Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
• Speeds: 10
• Rear Derailleur: Shimano CUES U6000; GS
• Shift Levers: Front: Shimano SL -MT500-L dropper lever Rear: Shimano CUES U6000-10 speed
• Chain: Shimano LG500
• Cassette: Shimano Cues LG400; 11-48 teeth; 10 Speed
• Chainset: FSA Direct Mount Steel 36 tooth chainring with FSA CK-220 wide E-Bike Forged 160mm long cranks
• Pedals: VP VPE-527
• Saddle: Merida Comp SL; V-mount; incuding Merida minitool
• Seat Post: Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel
• Motor: Bosch PowerTube 800; 800Wh, Bosch Performance Line CX
• Battery Capacity: 800Wh
• eBike Display: Bosch Purion 200
