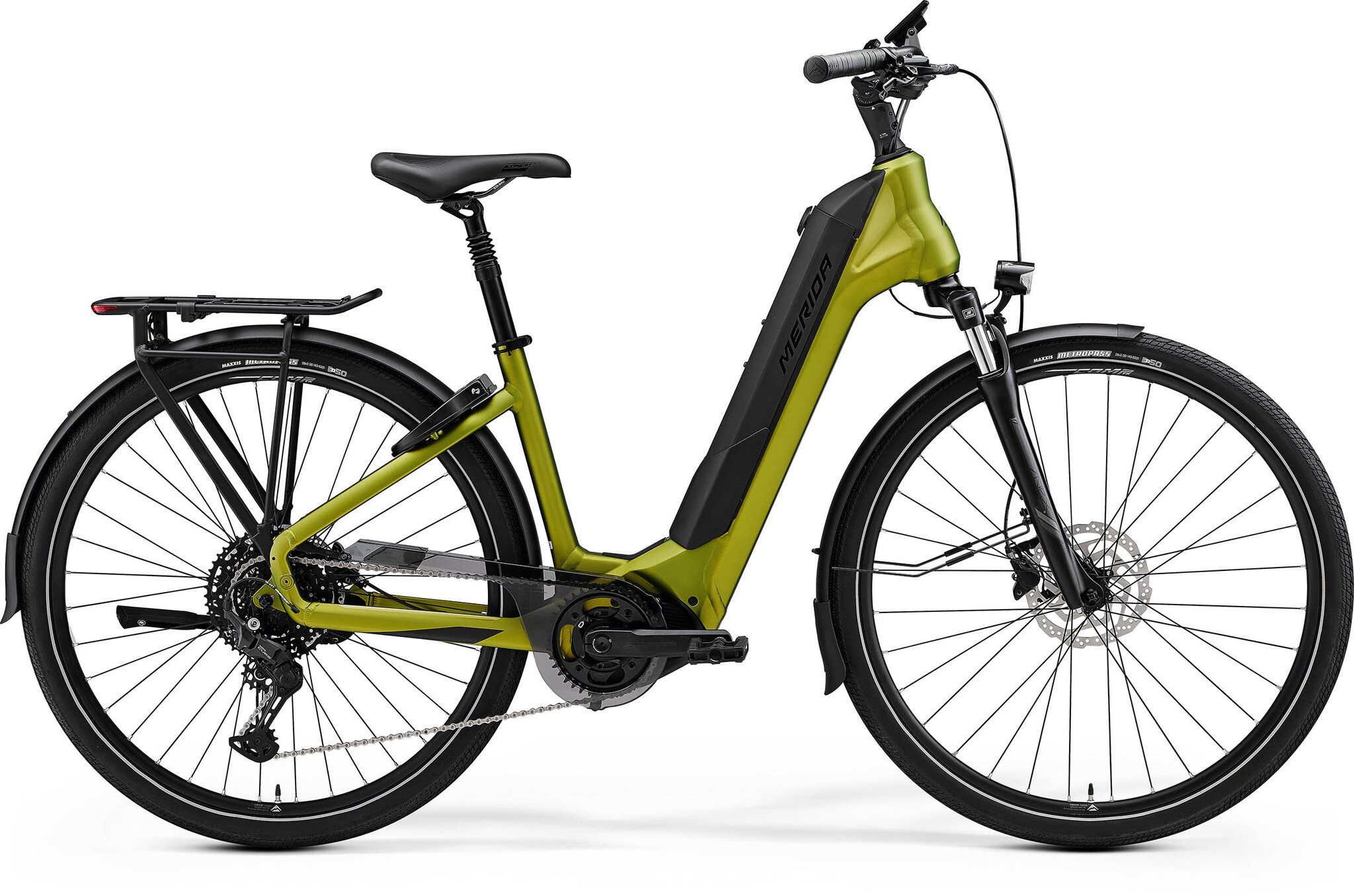

Merida Espresso City 575 Eq Electric City Bike My24
Specifications
Information
The eSpresso City has one of the lowest, widest step throughs available. It's the perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop. Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light. Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling. A 150 kg maximum rider and equipment weight allows plenty of carrying capacity. Strong but controllable hydraulic disc brakes help you stop with ease.
- Frame: City Lite III - Hydroformed 6066 triple butted aluminium. 135 x 9mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards
- Fork: Suntour NEX E25; Coil; 63mm travel; Max. tyre size: 700 x 52C
- Headset: Merida-8254
- Stem: Merida Expert; aluminium; 31.8mm diameter; adjustable; length: 65mm (XS,S,M), 90mm (L,XL)
- Handlebar: Merida Expert; aluminium; 640mm wide; 35mm rise
- Grip: Merida Expert TK
- Brake Type: Hydraulic disc
- Front Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
- Rear Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor
- Tyres: Continental Ride Cruiser; 622-50; wire bead with reflective strip
- Wheel Size: 700c
- Rim: Merida Comp TK; 20mm inner rim width; aluminium
- Front Hub: Shimano QC300; 100 x 9mm; 32 spokes; Centerlock
- Rear Hub: Shimano QC300; 135 x 9mm; 36 spokes; Centerlock
- Speeds: 10
- Rear Derailleur: Shimano CUES U6000; GS
- Shift Levers: Shimano CUES U6000
- Chain: Shimano LG500
- Cassette: Shimano LG300; 11-48 teeth; 10 speed
- Chainset: Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard
- Bottom Bracket: Part of Shimano Steps motor
- Pedals: VP Components - VPE-891
- Saddle: Merida Expert CT; V-mount
- Seat Post: Merida Expert TK; 30.9mm diameter; 15mm lay back; 40mm suspension travel
- Motor: Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm
- Battery Capacity: 750Wh
- eBike Display: Shimano SC-EN610
