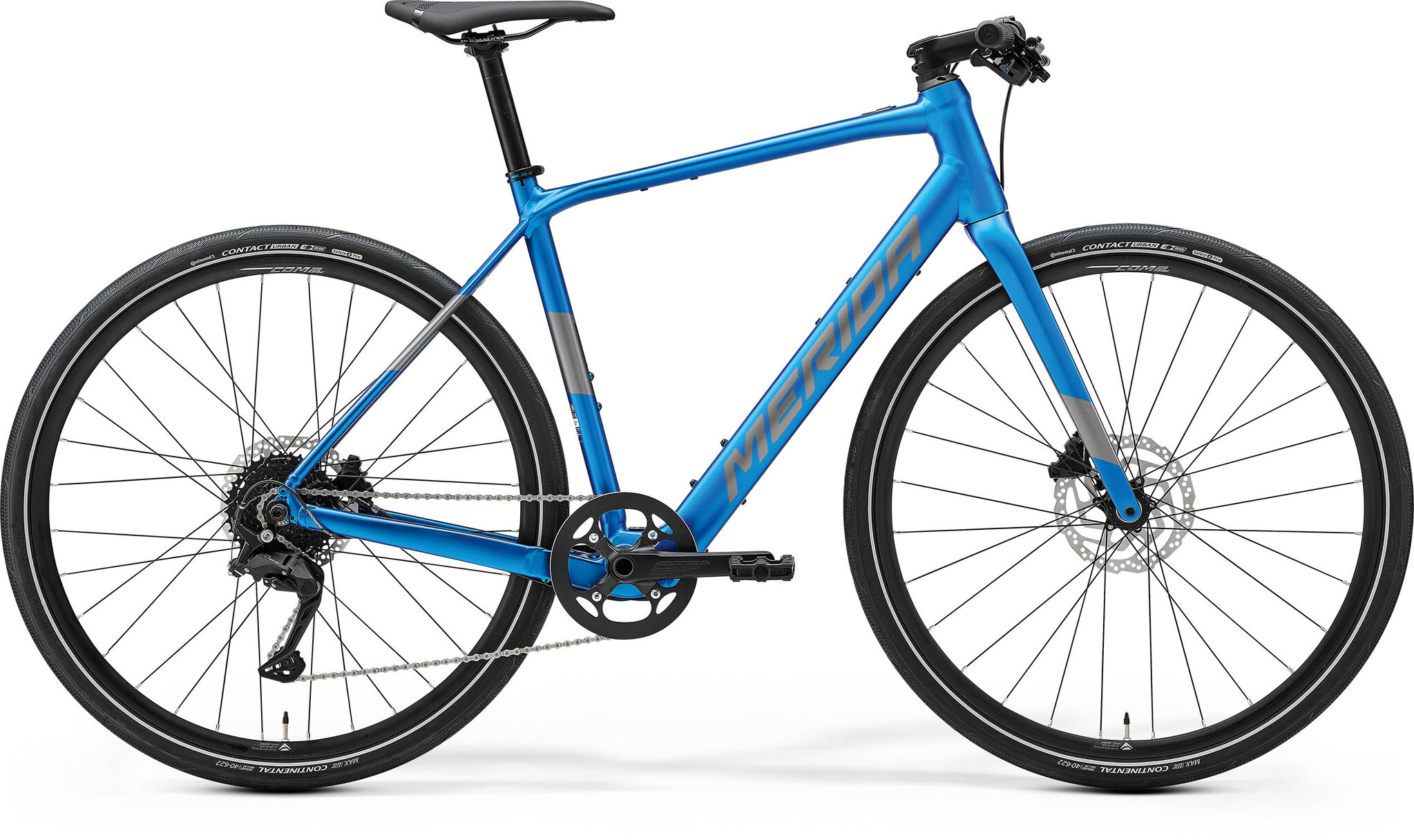

Merida Espeeder 200 Lightweigh Electric City Bike My24
Specifications
Information
The regular Merida Speeder is a fast efficient commuting or leisure bike. The addition of a power unit is almost unnoticeable when the bike's seen in profile. The smooth power delivery and drag free motor help preserve your energy, making commuting far more appealing. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat.
- Frame: Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards
- Fork: Mission CX CF3; carbon. Max. tyre size: 700 x 42c
- Headset: Merida 8158
- Stem: Merida Expert IR II; aluminium; 31.8mm diameter; 5 degree rise; length: 80mm, (XS), 90mm, (S), 100mm, (M), 110mm (L/XL)
- Handlebar: Merida Expert CC; aluminium; 620mm wide; Flat
- Grip: Merida Comp EC
- Brake Type: Hydraulic disc
- Front Brake: Shimano MT200 / UR300 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
- Rear Brake: Shimano MT200 / UR300; 2 piston hydraulic disc brake caliper with Shimano RT26; 180mm rotor
- Tyres: Continental Contact Urban; 700 x 40c; wire bead
- Wheel Size: 700c
- Rim: Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium
- Front Hub: VP CLK170F; 100 x 12mm; 28 spokes; Centerlock with Merida Expert SL axle
- Rear Hub: Mahle X35+ Hub motor; 40Nm
- Speeds: 9
- Rear Derailleur: Shimano CUES U3020; SGS
- Shift Levers: Shimano U4000
- Chain: Shimano LG500
- Cassette: Shimano LG300; 11-36 teeth; 9 speed
- Chainset: Merida Comp TK; 42 tooth chainset;
- Bottom Bracket: EB2401
- Pedals: VP Components - VPE-891
- Saddle: Merida Comp SL with V-mount
- Seat Post: Merida Expert; aluminium; 30.9mm diameter; in-line
- Motor: Mahle B1-D; 250Wh, Mahle X35+ Hub motor; 40Nm
- Battery Capacity: 250Wh
- eBike Display: Colour coded iWoc power button
