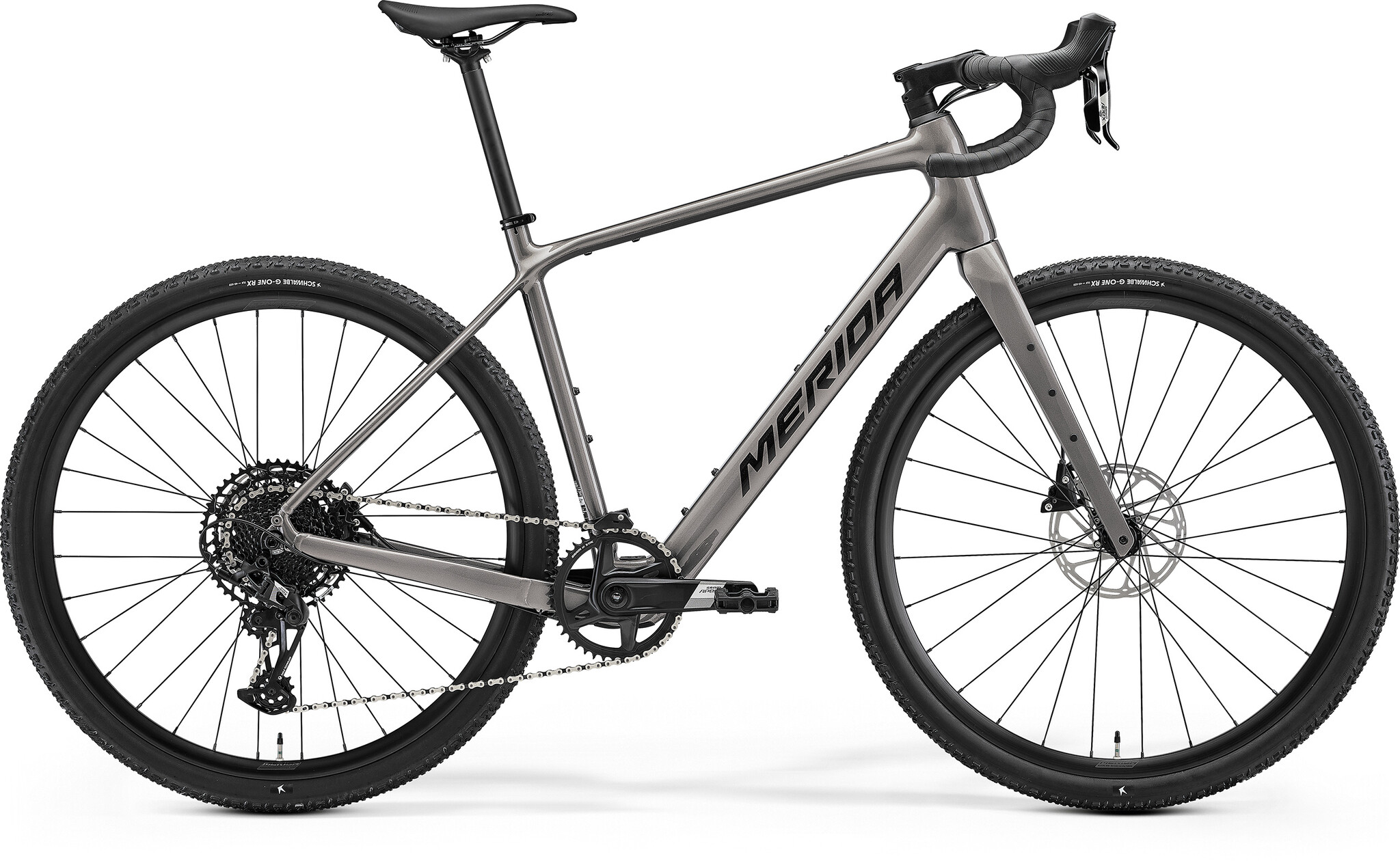

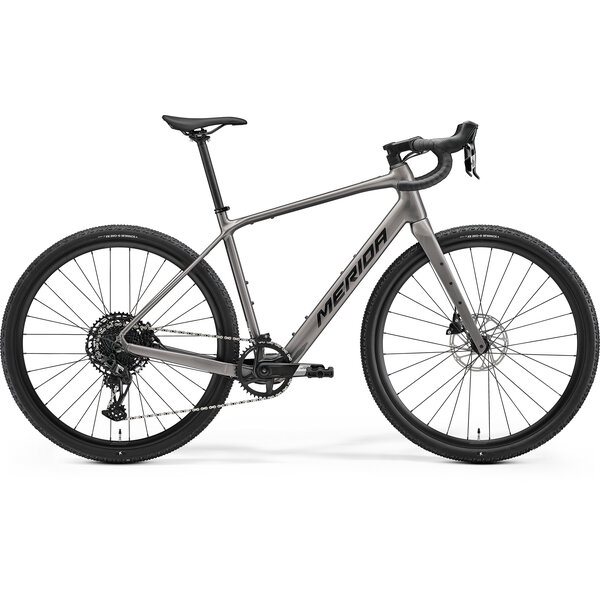

Merida eSilex 600 Electric Gravel Bike MY27
Information
The dream ticket when discussed in the Merida UK office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat.
- Frame: eSilex AL-A IV; aluminium; 700Cx45mm max. tyre size; 100x12/135x9 axle standard
- Fork: Merida Silex II CF2; Tapered; MAT carbon; 700x47C max. tyre size
- Headset: Acros ICR Merida external neck w/diecast splitring
- Stem: Merida Team CC III; aluminium; 31.8mm diameter; -6 degree stem angle; incl. MERIDA SMART MOUNT; 80mm
- Handlebar: Merida Expert GR II; aluminium; (XXS-XS-S) - 400mm , M - 420mm , (L-XL) - 440mm
- Grip: Merida Road Expert
- Brake Type: Hydraulic Disc
- Brake Calipers: Front: Sram Apex Rear: Sram Apex
- Tyres: Front: G-ONE RX Performance Line; RaceGuard TLR; 700x45C Rear: G-ONE RX Performance Line; RaceGuard TLR; 700x45C
- Wheel Size: 700c
- Wheels: Rims: Merida Comp SL II; 25mm inner rim width; 24 HRI; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless ; black nipples Front Hub: Shimano TC500; 100x12mm; 28 spoke; Centerlock
- Speeds: 12
- Rear Derailleur: Sram Apex Eagle
- Chain: Sram Eagle S200
- Cassette: Sram PG-1210 Eagle Cassette; 10-50 teeth; 12 speed
- Chainset: Sram Apex 1 Wide, Crank: 165mm
- Bottom Bracket: DUB BSA 68 Wide
- Pedals: VP VPE-891
- Saddle: Merida Comp SL; 28% recycled material; V-mount
- Seat Post: Merida Expert SL; 27.2mm diameter; in-line; carbon
- Motor: Mahle ix2 237Wh, Mahle X30 Drive Unit
- Battery Capacity: 237Wh
