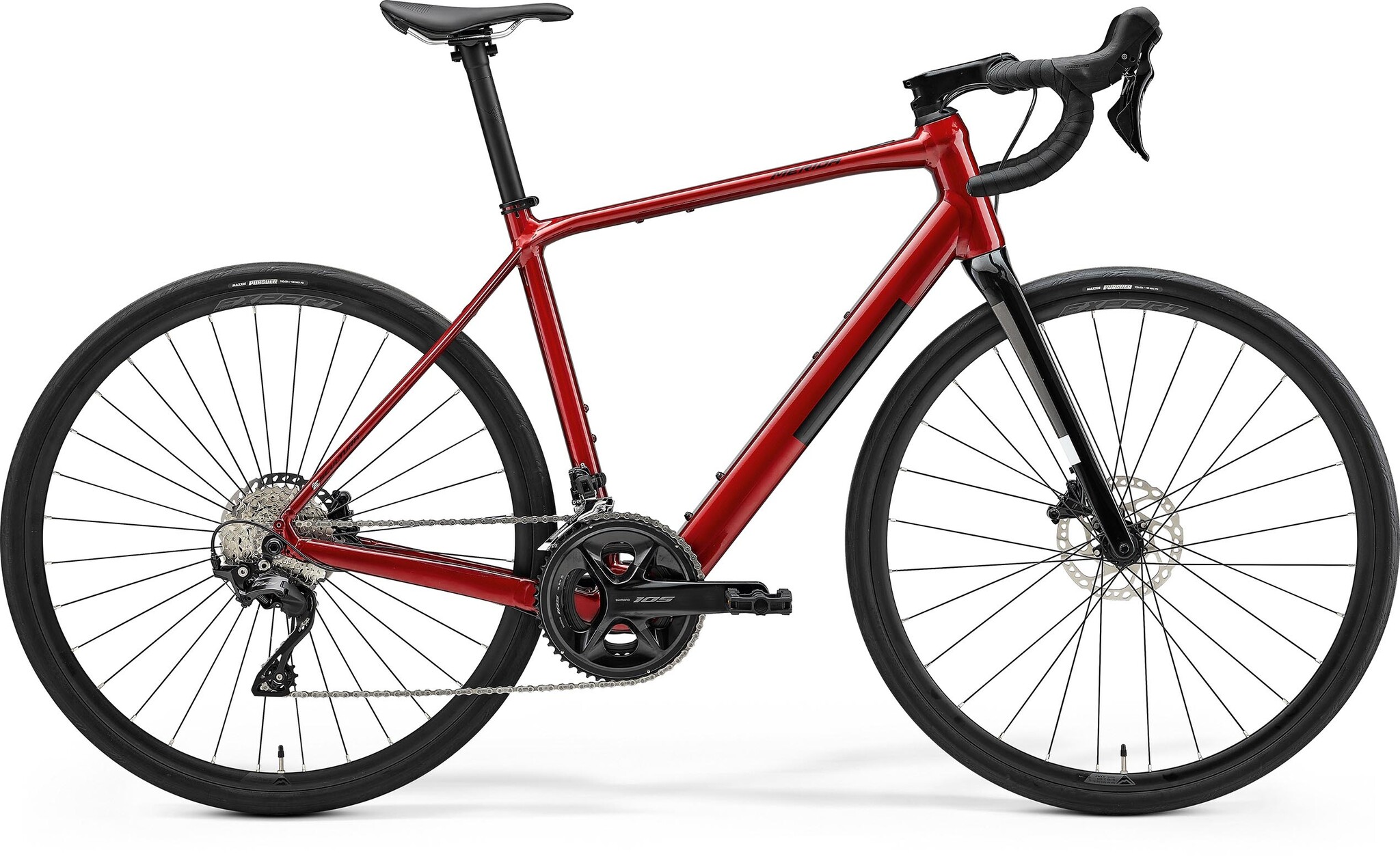

Merida eScultura 400 Electric Road Bike

Information

The silhouette of the bike would not give away the fact the eScultura benefits from a permanent tail wind. Cheating? Not when you're having this much fun. The eScultura 400 brings all the benefits of a pedal-assist motor to a serious road bike, delivering a way to keep up with the pack on the hills without a heavy, draggy feel when you're pedalling above the assistance limit. Shimano's benchmark 105 groupset and hydraulic disc brakes to deliver a ride that's as sporty as a regular bike. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively even without power assistance. There is almost no drag at all from the motor when it is not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit nice and neat.

• Frame: Lite - Hydroformed 6066 triple butted aluminium, integrated battery, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards. 27.5" x 47c
• Fork: Mission CX CF3; carbon. Max. tyre size: 700 x 42c
• Headset: Merida 8158
• Stem: Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 80mm (XS), 90mm (S), 100mm (M), 110mm (L/XL)
• Handlebar: Merida Expert CW; aluminium; 400mm (XS/S), 420mm (M/L), 440mm (XL)
• Grip: Merida Expert
• Brake Type: Hydraulic disc
• Front Brake: Shimano 105 R7100; 2 piston hydraulic disc brake with Shimano RT64 160mm rotor
• Rear Brake: Shimano 105 R7100; 2 piston hydraulic disc brake with Shimano RT66 160mm rotor
• Tyres: Maxxis Pursuer; 700 x 32C; Kevlar bead, folding
• Rim: Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included)
• Front Hub: Shimano HB-TC500; 100 x 12mm; 28 Spokes; Centerlock
• Front Derailleur: Shimano 105 R7100
• Rear Derailleur: Shimano 105 R7100; GS
• Shift Levers: Shimano 105
• Chain: Shimano M7100
• Cassette: Shimano 105; 11-36 teeth; 12 speed
• Chainset: Shimano 105; R7100; 52-36 tooth chainset with 170 mm-XS/S/M, 175 mm-L/XL crank
• Bottom Bracket: Shimano BSA
• Pedals: VP Components - VPE-893
• Saddle: Merida Expert SL; V-mount;
• Seat Post: Merida Expert CC; aluminium; 30.9mm diameter; in-line
• Motor: Mahle ix250Wh Battery Pack, Mahle X30 Hub motor, 40Nm
• Battery Capacity: 250Wh
