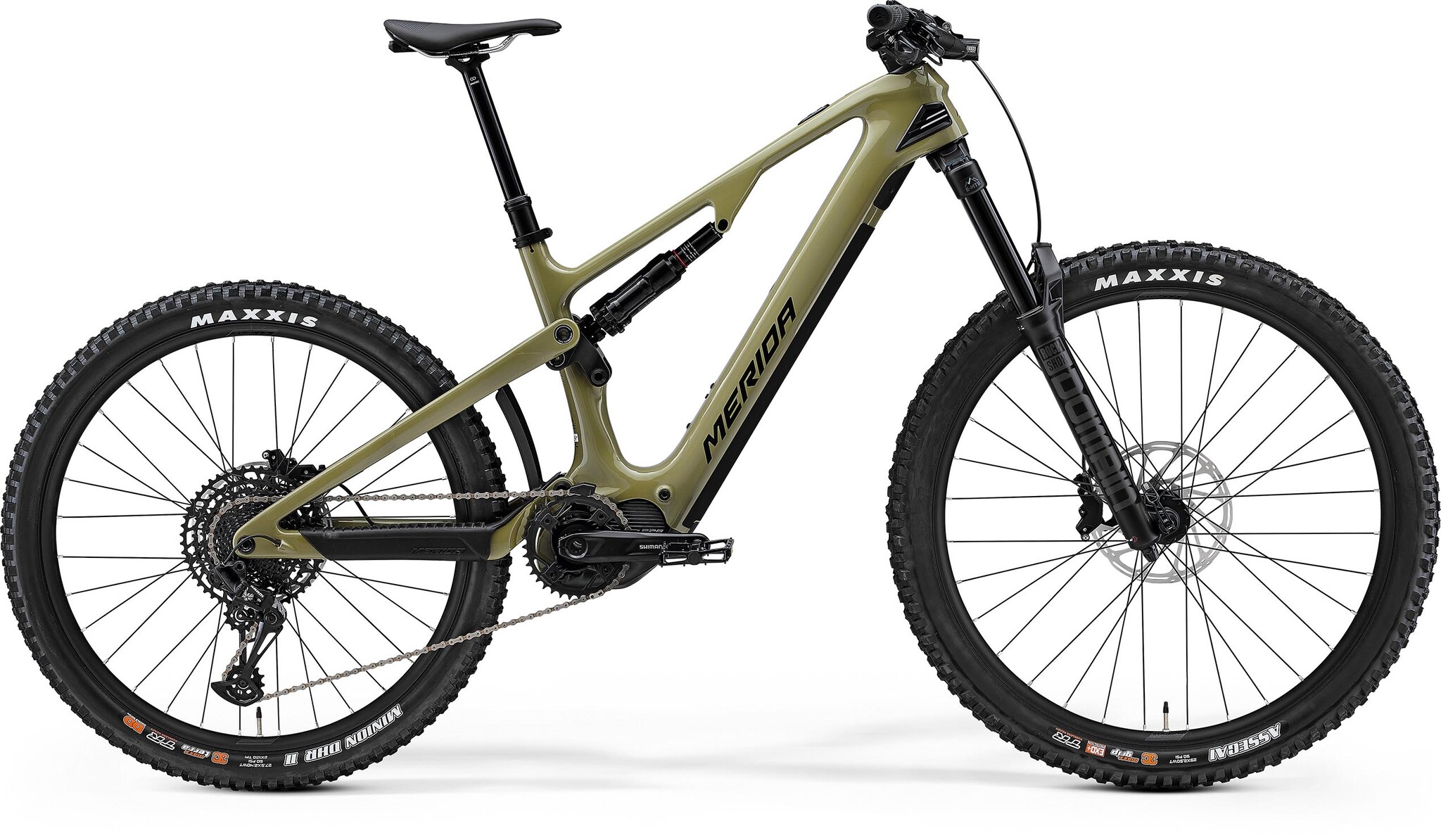

Merida eOne-Sixty 6000 Electric Bike

Information

Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery. A 360 Wh range extender is available separately so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

• Frame: Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
• Rear Shock: RockShox Super Deluxe Select
• Fork: RockShox Domain Gold RC E-MTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 3.0"
• Headset: Acros ICR Merida integrated neck w/ Blocklock
• Stem: Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
• Handlebar: Merida Expert eTR; 780mm wide; 20mm rise
• Grip: Merida Expert EC
• Brake Type: Hydraulic disc
• Front Brake: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
• Rear Brake: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
• Tyres: Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
• Wheel Size: 29" / 27.5"
• Rim: Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
• Front Hub: Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
• Rear Hub: Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
• Speeds: 12
• Rear Derailleur: SRAM NX Eagle
• Shift Levers: Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed
• Chain: SRAM SX Eagle
• Cassette: SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
• Chainset: FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
• Bottom Bracket: Part of Shimano Steps motor
• Pedals: VP Components - VPE-527
• Saddle: Merida Expert SL with V-mount; including Merida minitool
• Seat Post: Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
• Motor: Simplo Trend Power internal battery; 600Wh, Shimano Steps EP801; 85Nm
• Battery Capacity: 600Wh
• eBike Display: Shimano SC-EM800
