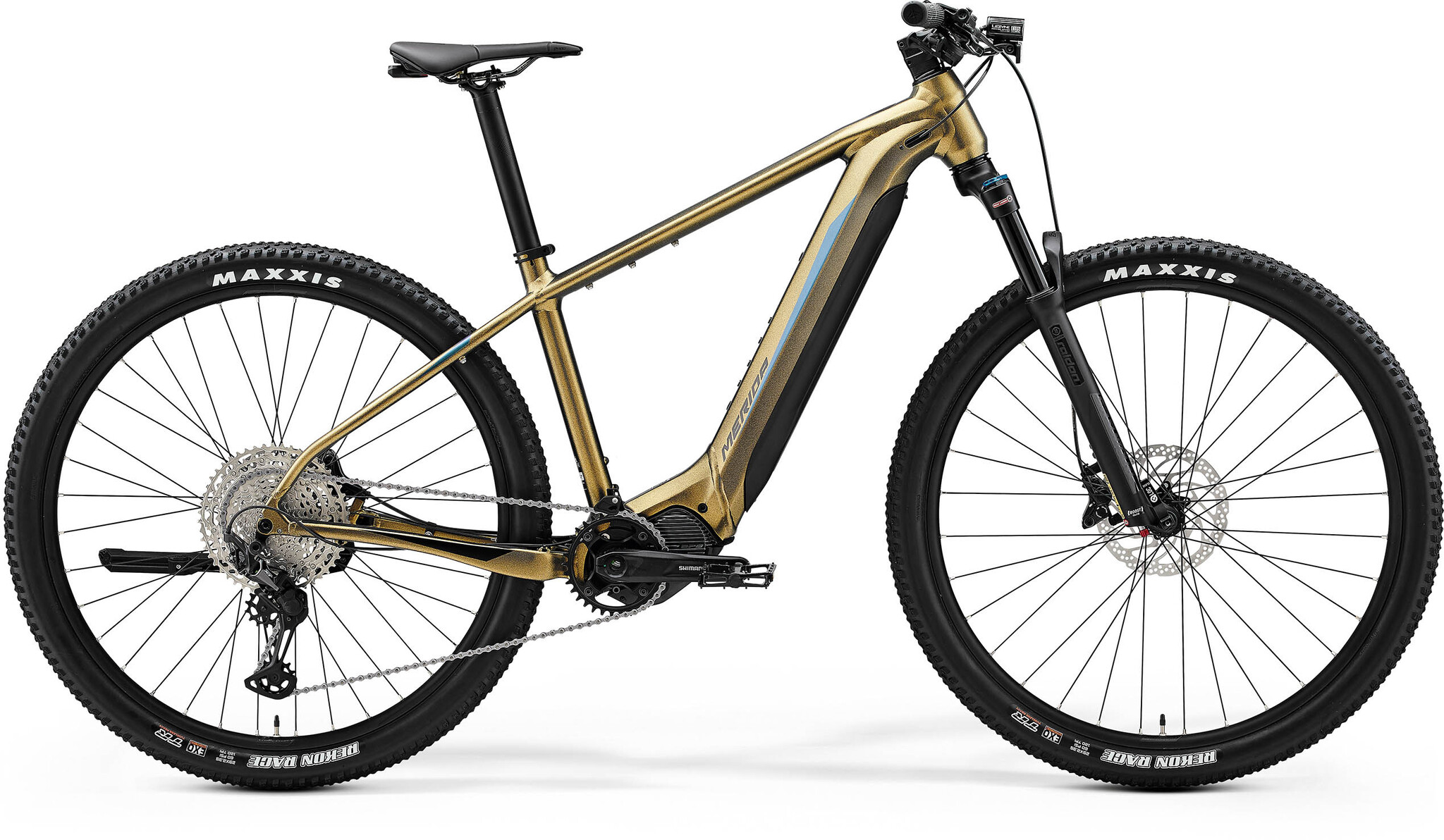

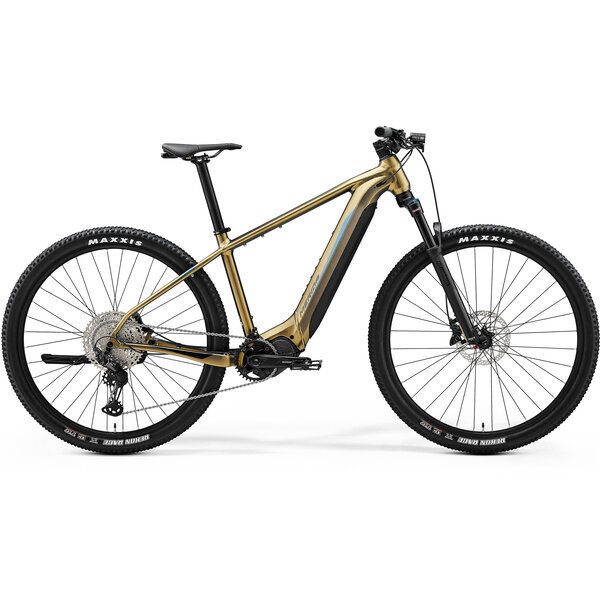

Merida Ebig Nine 775 Electric Mountain Bike My24

Information

The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary. You ride to work in the morning but fancy a little off road detour on the way home? No problem – that's what these bikes are made for! Combining the best elements of mountain and trekking bikes, this rugged machine can be fitted with mudguards and racks making it ideal for both commuting and year round leisure riding. The eBig Nine 400 is the cheapest Merida eBike to use Shimano's EP6 85Nm motor and 630w battery. Many technical features and much of the thinking that went into the award winning eOne-Sixty have been incorporated to deliver a stylish and well thought through hardtail. The strong, stiff aluminium frame is the result of extensive hydroforming, precision laser cutting and CNC machining. The battery is housed low down in the downtube to keep the centre of gravity low. The battery can be charged in the bike via a satellite charging port.

• Frame: Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
• Fork: Suntour RAIDON34 LOR; Air; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"
• Headset: Merida-8157
• Stem: Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - stem length: 50mm all sizes; GoPro & Supernova mount
• Handlebar: Merida Expert eTR; 760mm wide; 20mm rise
• Grip: Merida Expert EC
• Brake Type: Hydraulic disc
• Front Brake: Shimano M4100 4 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor
• Rear Brake: Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor
• Tyres: Maxxis Rekon Race; 29" x 2.35"; Kevlar bead, folding; TR EXO
• Wheel Size: 29"
• Rim: Merida Comp CC II; 25mm inner rim width; aluminium
• Front Hub: Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock
• Rear Hub: Shimano TC600-MS-B; 148 x 12mm; 36 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
• Speeds: 12
• Rear Derailleur: Shimano XT RDM8100 Shadow+ 12 speed
• Shift Levers: Shimano Deore M6100 12
• Chain: KMC e12T EPT
• Cassette: Shimano M6100; 10-51 teeth; 12 speed
• Chainset: Shimano CRE80-12-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide
• Bottom Bracket: Part of Shimano Steps motor
• Pedals: VP Components - VPE-527
• Saddle: Proxim W400 STN with V-mount adapter; including Merida minitool
• Seat Post: Merida Expert CC; aluminium; 34.9mm diameter; in-line
• Motor: Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP801; 85Nm
• Battery Capacity: 750Wh
• eBike Display: Shimano SC-EN600
