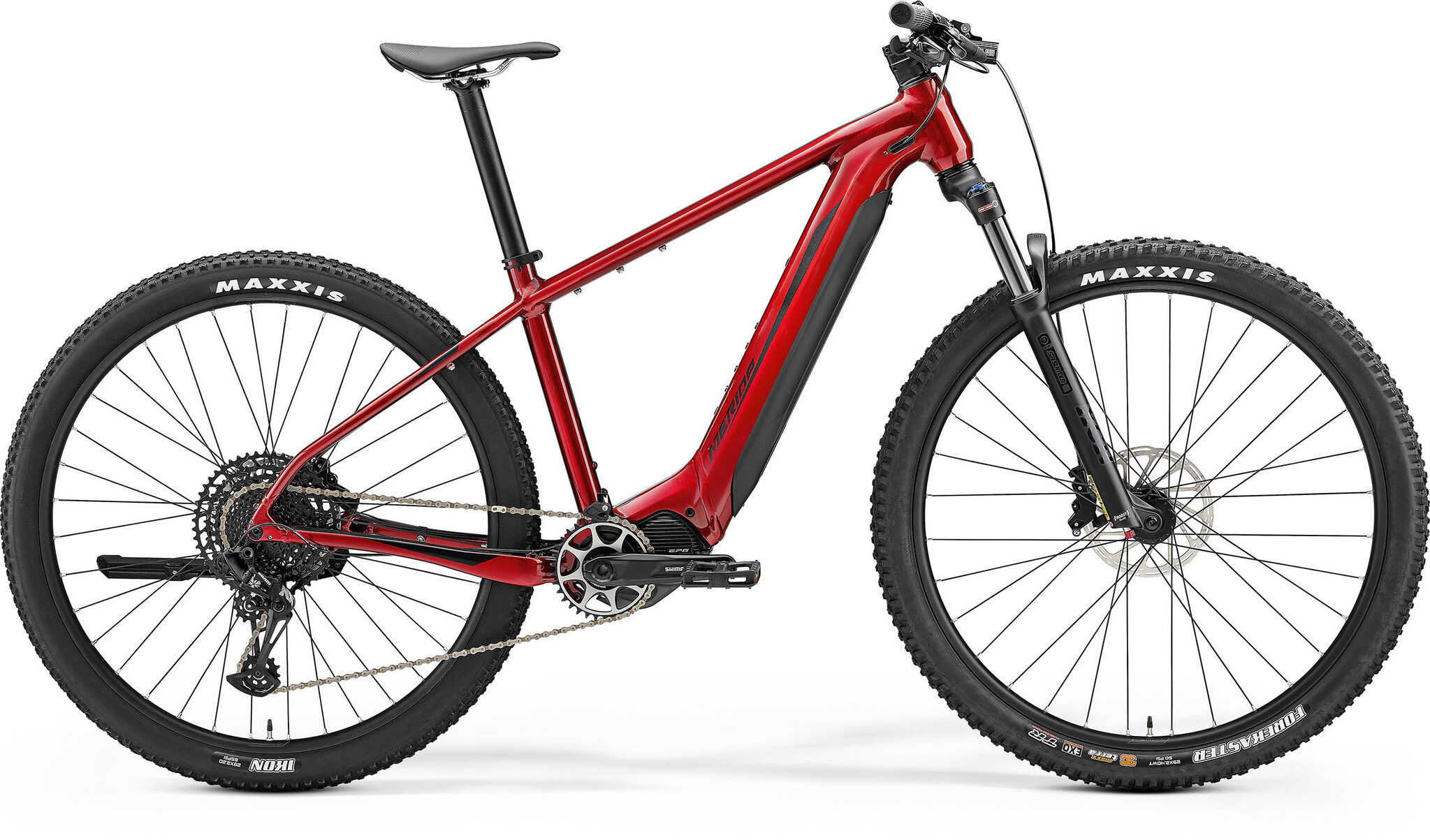

Merida Ebig Nine 675 Electric Mountain Bike My24

Information

The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary. You ride to work in the morning but fancy a little off road detour on the way home? No problem – that's what these bikes are made for! Combining the best elements of mountain and trekking bikes, this rugged machine can be fitted with mudguards and racks making it ideal for both commuting and year round leisure riding. Many technical features and much of the thinking that went into the award winning eOne-Sixty have been incorporated to deliver a stylish and well thought through hardtail. The strong, stiff aluminium frame is the result of extensive hydroforming, precision laser cutting and CNC machining. The battery is housed low down in the downtube to keep the centre of gravity low. The battery can be charged in the bike via a satellite charging port.

• Frame: Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
• Fork: Suntour XCR34 LOR DS; Air; Boost; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"
• Headset: Merida-8155 (for steerer 1-1/8"~1.5")
• Stem: Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
• Handlebar: Merida Expert CC; aluminium; 720mm wide; 10mm rise
• Grip: Merida Expert TK
• Brake Type: Hydraulic disc
• Front Brake: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor
• Rear Brake: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor
• Tyres: Kenda Booster; 29" x 2.2"; wire bead
• Wheel Size: 29"
• Rim: Merida Comp CC II; 25mm inner rim width; aluminium
• Front Hub: Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
• Rear Hub: Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
• Speeds: 12
• Rear Derailleur: SRAM NX Eagle
• Shift Levers: SRAM NX Eagle 12 speed
• Chain: SRAM SX Eagle
• Cassette: SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
• Chainset: SAMOX EMA04; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide
• Bottom Bracket: Part of Shimano Steps motor
• Pedals: VP Components - VPE-537
• Saddle: Merida Expert TK; V-mount
• Seat Post: Merida Expert CC; aluminium; 34.9mm diameter; in-line
• Motor: Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm
• Battery Capacity: 750Wh
• eBike Display: Shimano SC-EN600
