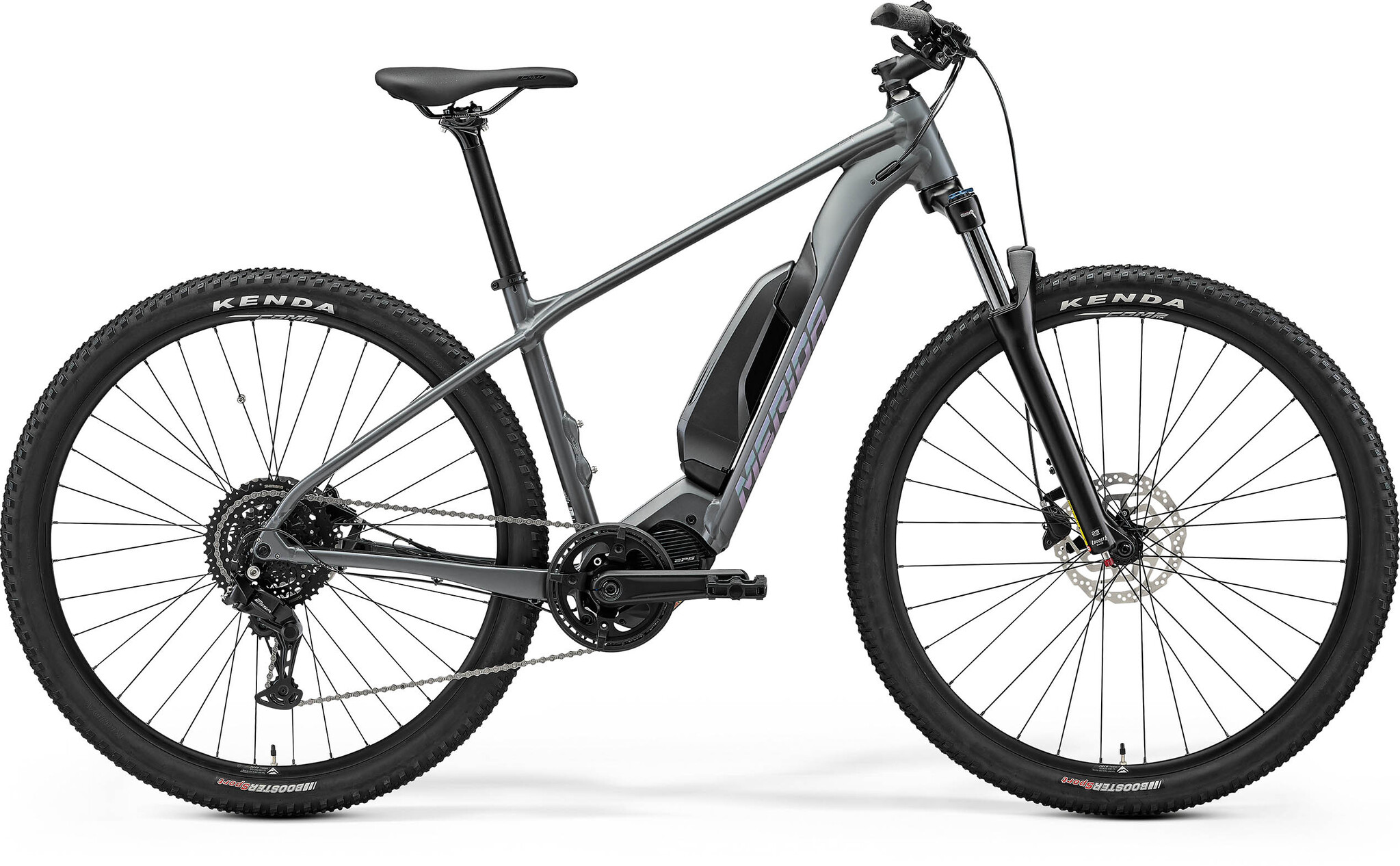

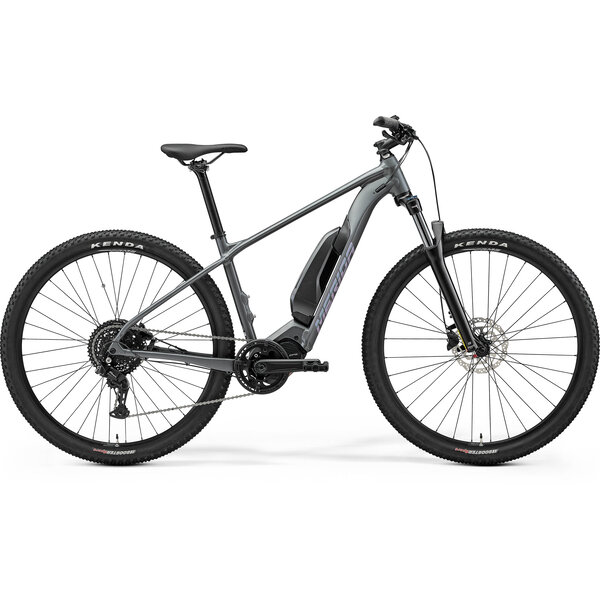

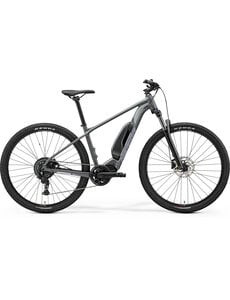

Merida Merida eBig Nine 300 SE - MY26

Information

You don't need to spend a fortune to enjoy e-biking, our budget-friendly eBig Nine 300 SE delivers a quality ride thanks to an aluminium frame and powerful but refined Shimano EP5 drive unit and the convenience of an easily removable externally mounted 504 Wh battery. Powerful Shimano hydraulic disc brakes are on hand to keep control no matter what the weather and the tough, long-lasting CUES drivetrain offers plenty of gearing for off-road adventures or city streets.

• Frame: Lite - Hydroformed 6066 aluminium with internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Complete with mounts for mudguards and kickstand. Max. tyre size 29" x 2.25"
• Fork: Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max tyre size
• Headset: Merida-2341 (for the steerer 1-1/8"~1.5") with 10mm*2 spacers
• Stem: Merida Comp CC; aluminium; 31.8mm diameter; 7 degree - length: 90 mm all sizes
• Handlebar: Merida Expert; aluminium; 680mm wide; 15mm rise
• Grip: Merida Comp TK
• Brake Type: Hydraulic Disc
• Front Brake: Shimano MT-200; 2 piston caliper with Shimano RT10; 180 mm rotor
• Rear Brake: Shimano MT-200; 2 piston caliper with Shimano RT10; 180 mm rotor
• Tyres: Kenda Booster; 29x2.2"; wire
• Rim: Merida Comp TK; 20mm inner rim width; aluminium
• Front Hub: Shimano QC300; 100x9mm; 32 spoke; Centerlock
• Rear Hub: Shimano TC500-HM-B; 148x12mm; 36 spoke; Centerlock
• Speeds: 8
• Rear Derailleur: Shimano Essa
• Shift Levers: Shimano ALTUS
• Chain: KMC Z8.3 EPT
• Cassette: Shimano HG300; 11-45 teeth; 8 speed
• Chainset: Prowheel EB11; 165mm for all sizes - cranks: Prowheel Pro38P-S16-49; 38 ATC plus
• Pedals: VP VPE-891
• Saddle: Merida Expert TK; 168 width
• Seat Post: Merida Comp CC; aluminium; 30.9mm diameter; 0mm layback
• Motor: Shimano EN604 Battery ; 504Wh, Shimano EP5; 60Nm
• Battery Capacity: 504Wh
• eBike Display: Shimano SC-EN500
