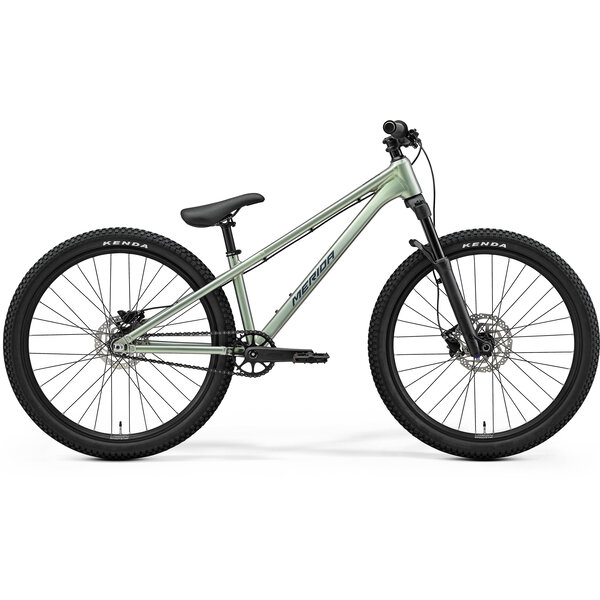

Merida Merida Dirt 500 - MY26

Information

Our new dirt jump and pump track bike won't break the budget - or break, full stop. Built tough from 6061 aluminium, it's got 26" wheels and a singlespeed setup for bombproof reliability. Designed to deliver the most fun for your money, a Manitou Circus 100mm fork will save your hands when you case it, while tough Alex rims and fast Kenda tyres are ready to rip pump track berms.

• Frame: TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5"
• Fork: Manitou Circus Expert, Air; 100 mm travel; 110x20mm; 41mm fork offset; tapered
• Headset: FSA NO.57SC
• Stem: Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
• Handlebar: Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
• Grip: Merida Comp DR
• Brake Type: Hydraulic Disc
• Front Brake: Shimano MT200; 2 piston with Shimano RT26; 180mm
• Rear Brake: Shimano MT200; 2 piston with Shimano RT26; 160mm
• Tyres: Kenda K-Rad K905 ; 26x2.3"; wired
• Wheel Size: 26"
• Rim: Alexrims MD30; 30mm inner rim width; material: aluminum; 32H; tubeless ready
• Front Hub: Novatec DH61SB-HL; 110x20mm; 32 Spoke; 6 bolt
• Rear Hub: Novatec D256SBT; 135x10 M10mm; 32 Spoke; 6 bolt; 14t
• Speeds: 1
• Chain: KMC Z1 narrow
• Cassette: 14 teeth single speed
• Chainset: Merida Expert TR II; 32 tooth chainset; Crank length: 160mm
• Bottom Bracket: Samox BSA 24mm EB2401
• Pedals: VP VPE-536
• Saddle: Merida Comp DR
• Seat Post: Merida Comp DR; material: aluminium; 27.2mm diameter; in-line; 250mm length
