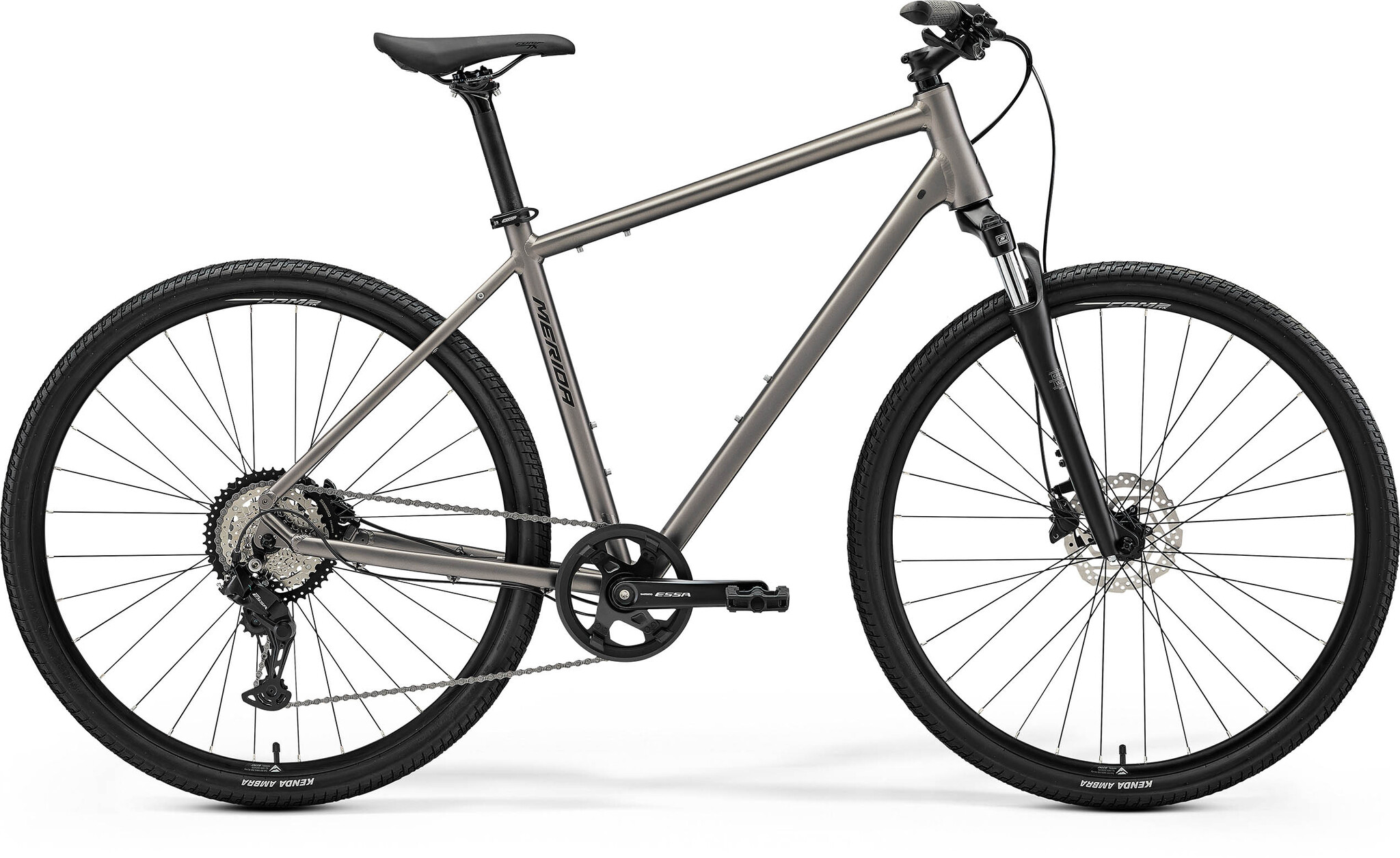

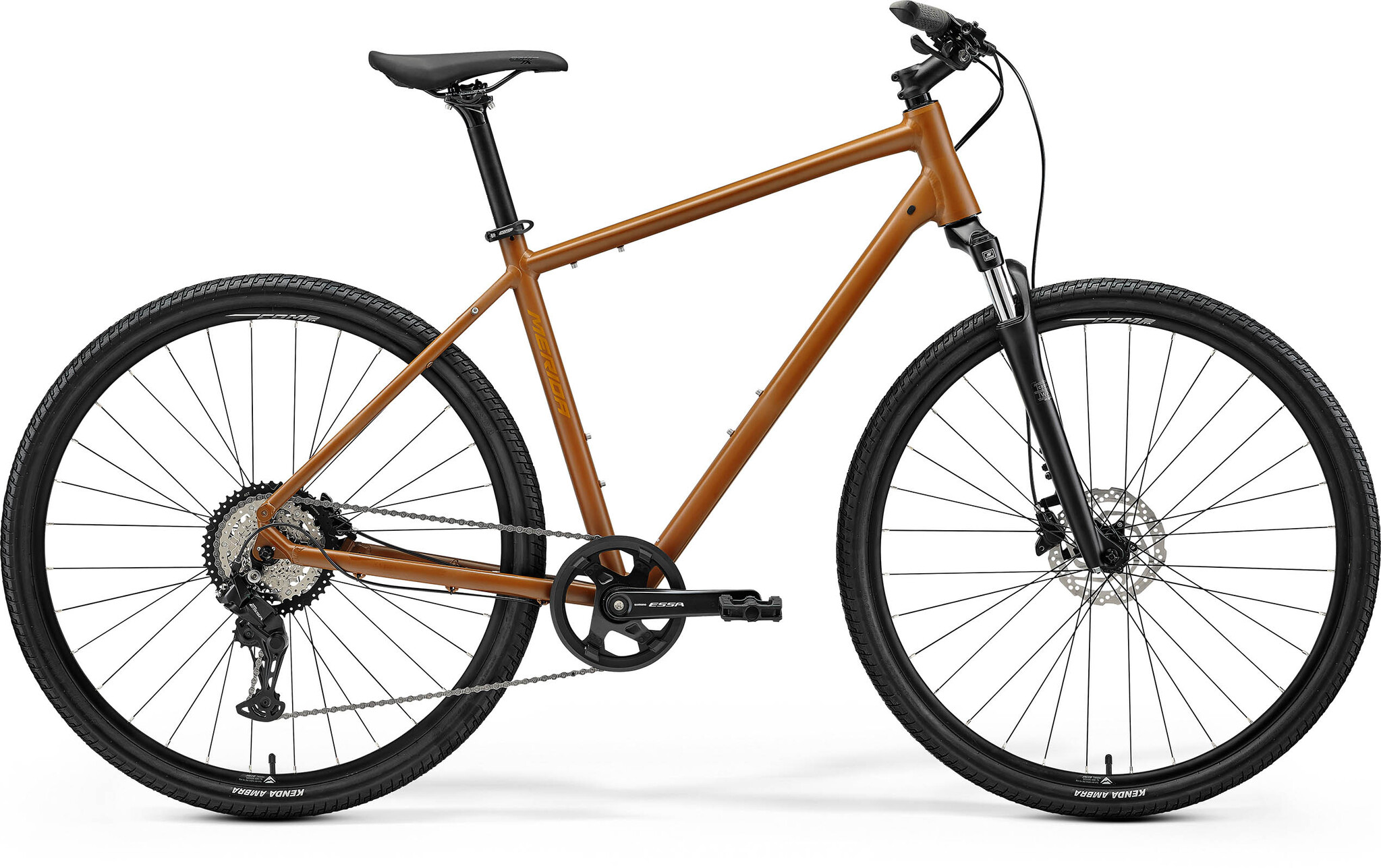

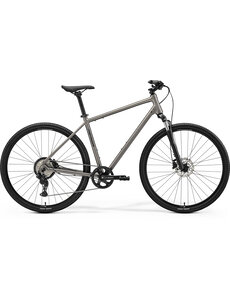

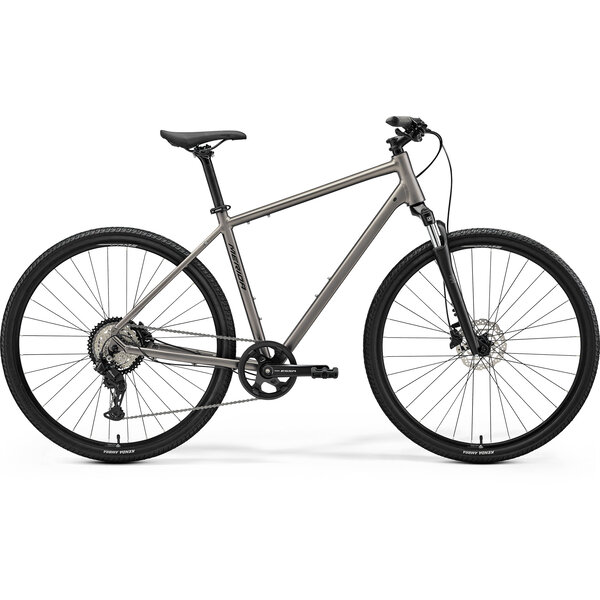

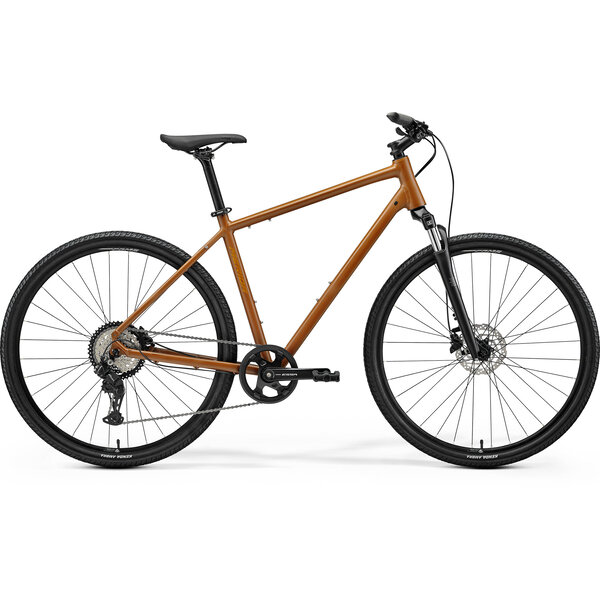

Merida Crossway 20 City Bike - MY26

Information

The Crossway family are versatile bikes suitable for riding for fitness, commuting and leisurely rides in the countryside. Their upright riding position is designed to provide a comfortable place to take in the surroundings. The frame has mounts for racks mudguards and a kickstand and EQ kits are available separately.

• Frame: TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
• Fork: SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size
• Headset: Merida M2345
• Stem: Merida Comp CC; material: aluminium; 31.8 mm diameter; 17 degree rise
• Handlebar: Merida Comp CC; material: aluminium; 680mm wide; 10mm rise
• Grip: Merida Comp TK
• Brake Type: Hydraulic Disc
• Front Brake: Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
• Rear Brake: Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
• Tyres: Kenda Ambra K1278; 700x45C; wired
• Wheel Size: 700c
• Rim: Merida Comp TK; 17mm inner rim width; material: aluminium
• Front Hub: Shimano TX505; 100x9mm; 32 Spoke; Centerlock
• Rear Hub: Shimano TX505; 135x9mm; 32 Spoke; Centerlock
• Speeds: 8
• Rear Derailleur: Shimano Essa RD-U2000-8; GS
• Shift Levers: Rear: Shimano Essa SL-315-8R
• Chain: KMC Z8
• Cassette: Shimano CS-HG400-8; 11-45 teeth; 8 speed
• Chainset: Shimano Essa FC-U2001; 40 tooth chainset; material: aluminium; Crank length: 170mm
• Bottom Bracket: Shimano UN101 LL123
• Pedals: VP VPE-891
• Saddle: Merida Comp TK
• Seat Post: Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
