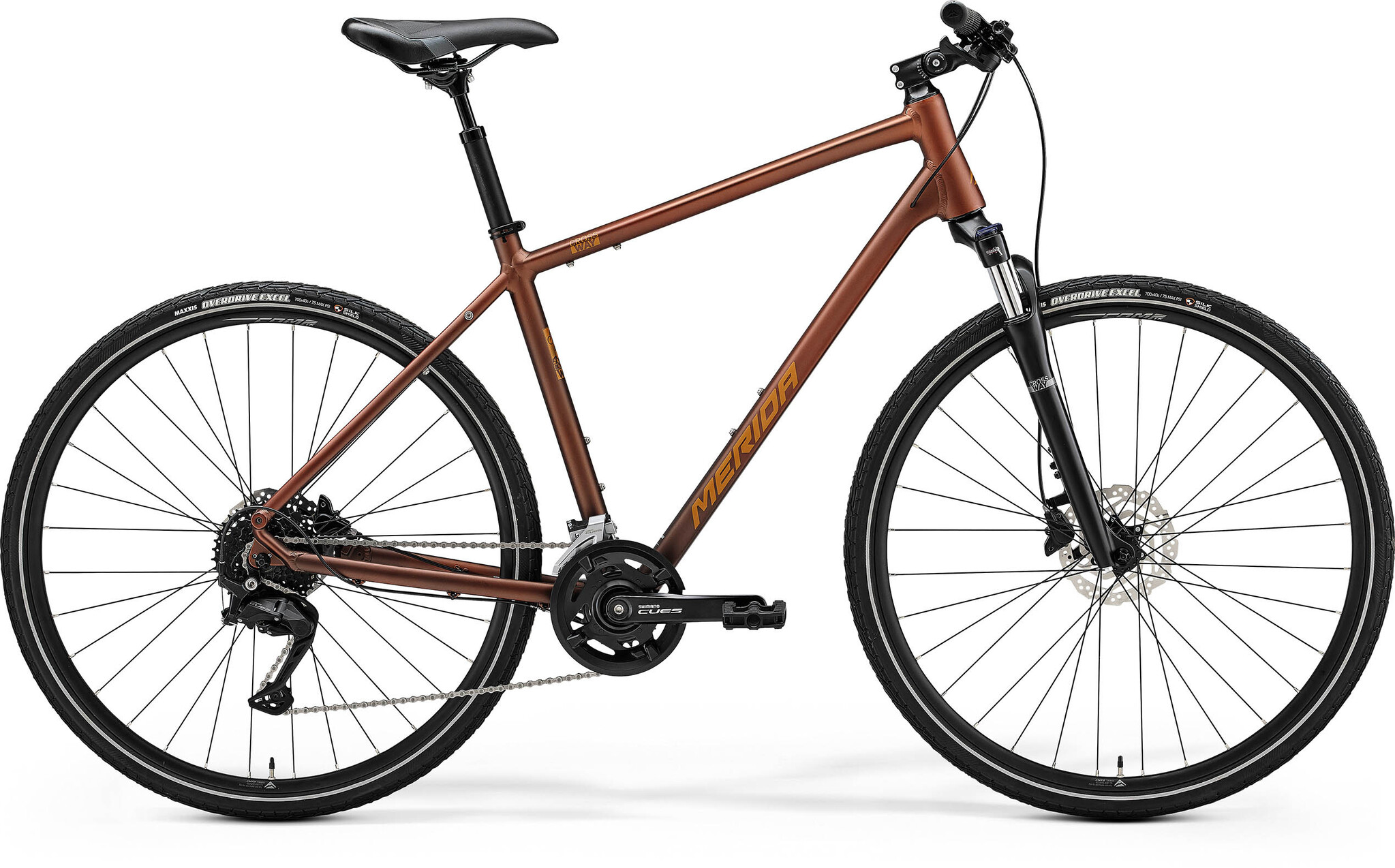

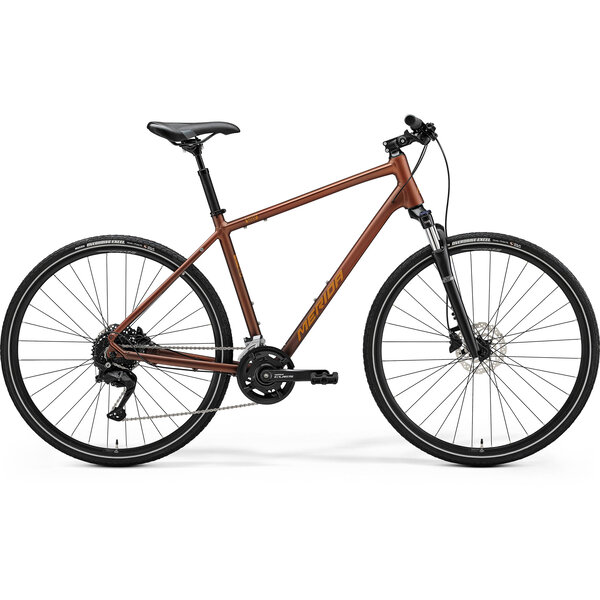

Merida Crossway 100 City Bike With Suspension My24

Information

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height. For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.

• Frame: TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
• Fork: Suntour NEX HLO; Coil; 63mm ; Lockout; Max tyre size: 700 x 48C
• Headset: Merida M2346 Neck
• Stem: Merida Comp TK; aluminium; 31.8mm diameter; adjustable. Length 95mm (XS,S,M), 110mm (L,XL)
• Handlebar: Merida Comp CC; aluminium; 660mm wide; 25mm rise
• Grip: Merida Expert EC
• Brake Type: Hydraulic disc
• Front Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
• Rear Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
• Tyres: Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshild
• Wheel Size: 700c
• Rim: Merida Comp TK; 20mm inner rim width; 17mm rim depth; aluminium
• Front Hub: Shimano QC300; 100x9mm; 32 spokes; Centerlock with quick release
• Rear Hub: Shimano QC300-HM; 135x9mm; 32 spokes; Centerlock with quick release
• Speeds: 18
• Front Derailleur: Shimano CUES U4000
• Rear Derailleur: Shimano CUES U3020
• Shift Levers: Shimano CUES U4000
• Chain: Shimano LG500
• Cassette: Shimano LG300; 11-36 teeth; 9 speed
• Chainset: Shimano CUES U4000; 40-26 tooth chainset. Crank length: 170mm (XS,S), 175mm (M,L,XL)
• Bottom Bracket: Shimano BB-UN101; 73mm
• Pedals: VP VPE-891
• Saddle: Merida Cross Sport
• Seat Post: Merida TK; 30.9mm diameter; 10mm lay back; 45mm travel
