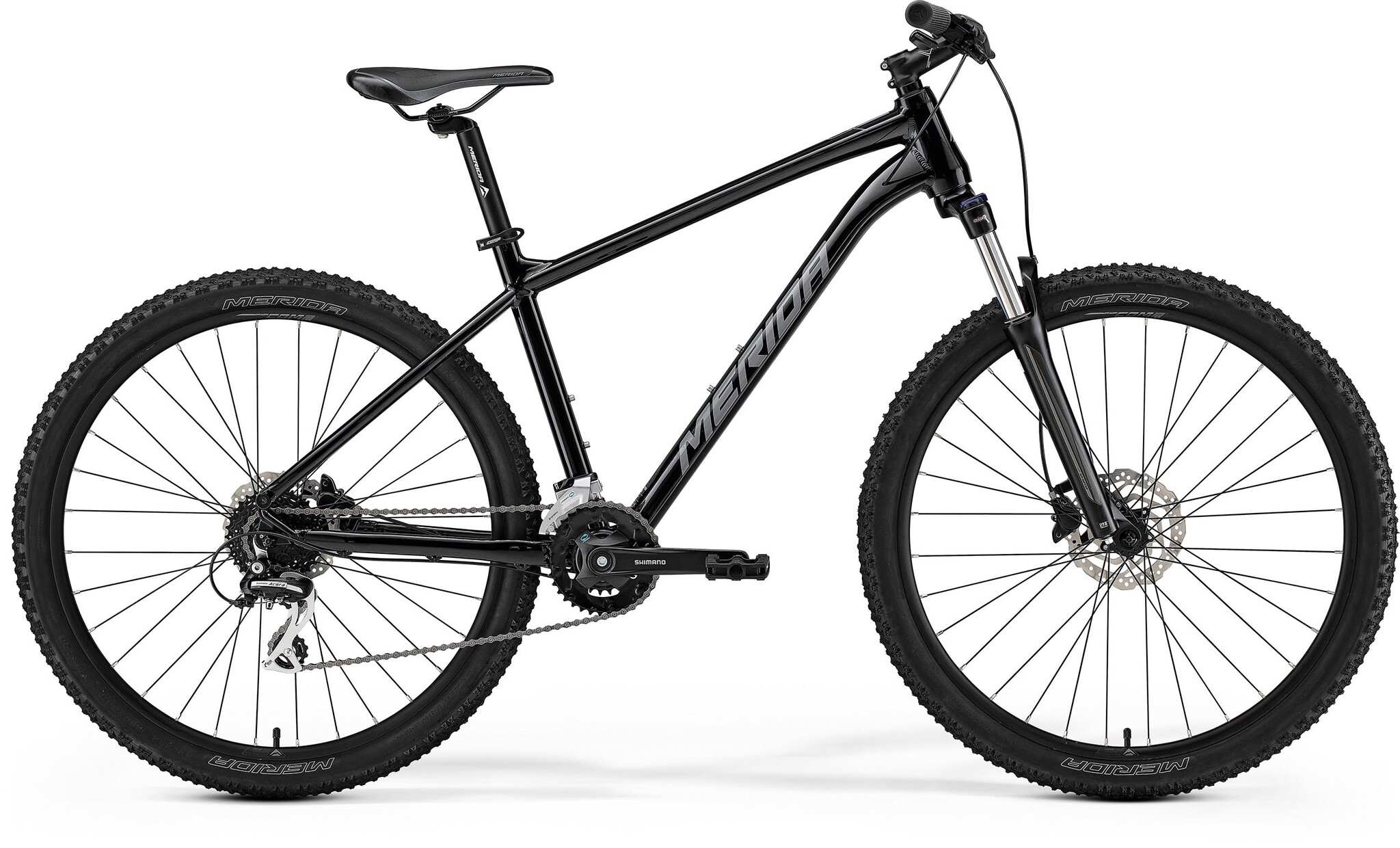

Merida Big Seven 20 SE Mountain Bike
Specifications
Information
Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.
- Frame: TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.25"
- Fork: SR Suntour XCT30; Coil; 100mm travel; Max tyre size 27.5" x 2.25"
- Headset: Merida M2345
- Stem: Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (XS-S), 90mm (M-L)
- Handlebar: Merida CC; aluminium; 690mm wide; 15mm rise
- Grip: Merida EC
- Brake Type: Hydraulic disc
- Front Brake: Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
- Rear Brake: Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
- Tyres: Merida K1080; 27.5" x 2.2"; wire bead
- Wheel Size: 27.5"
- Rim: Merida CC; 17mm inner rim width; aluminium
- Front Hub: Shimano TX505; 100 x 9mm; 32 spoke; Centerlock
- Rear Hub: Shimano TX505; 135 x 9mm; 32 spoke; Centerlock
- Speeds: 16
- Front Derailleur: Shimano FD-M315-TS
- Rear Derailleur: Shimano RD-M302-8; SGS
- Shift Levers: Shimano FH-TY505
- Chain: KMC Z8.3
- Cassette: Sunrace CSM558AU; 11-32 teeth; 8 speed
- Chainset: Shimano FC-M315-2; 36-22 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up)
- Bottom Bracket: FSA TH-7420ST, 68-124
- Pedals: VP VPE-891
- Saddle: Merida Sport comfort
- Seat Post: Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
