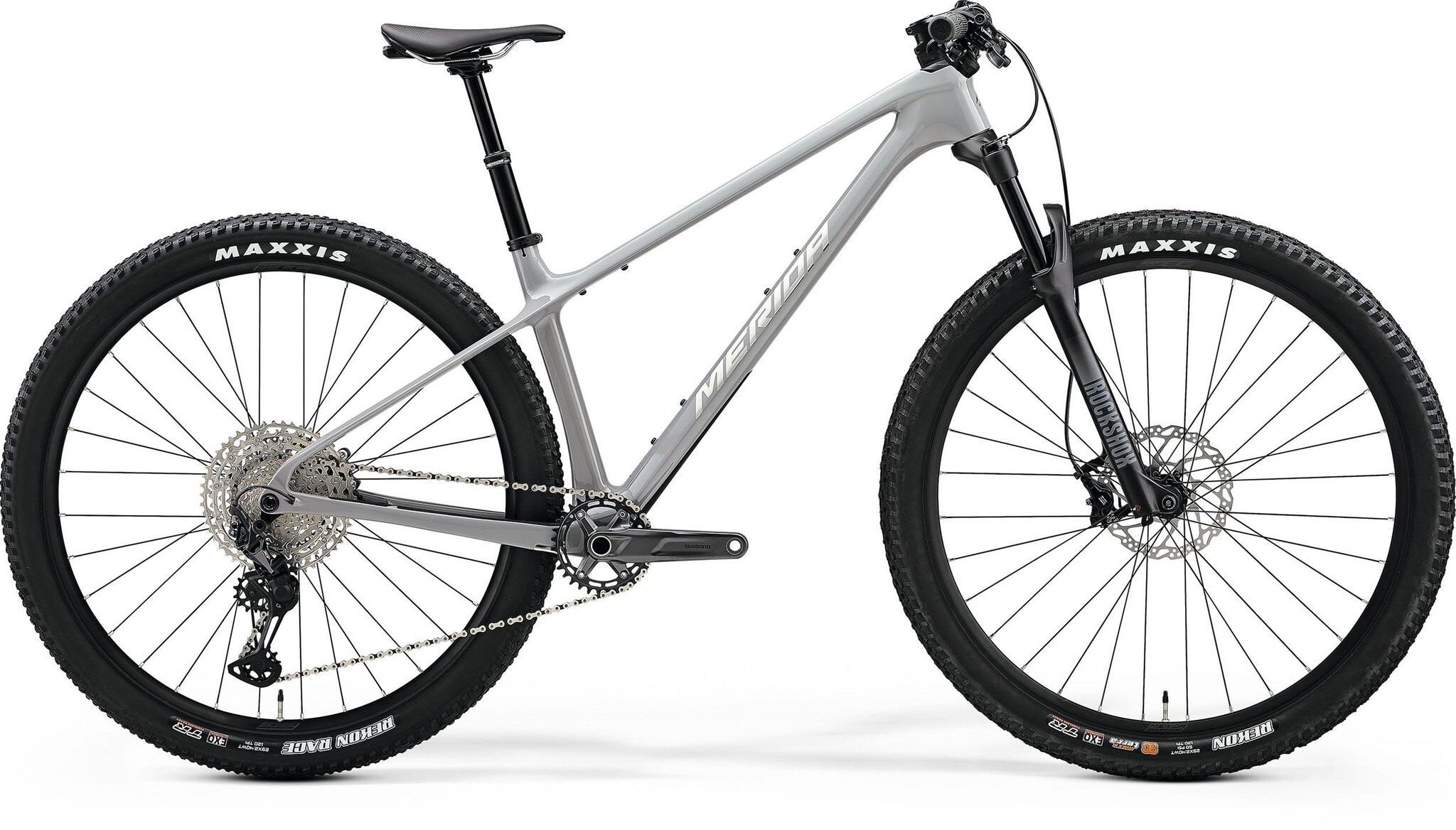

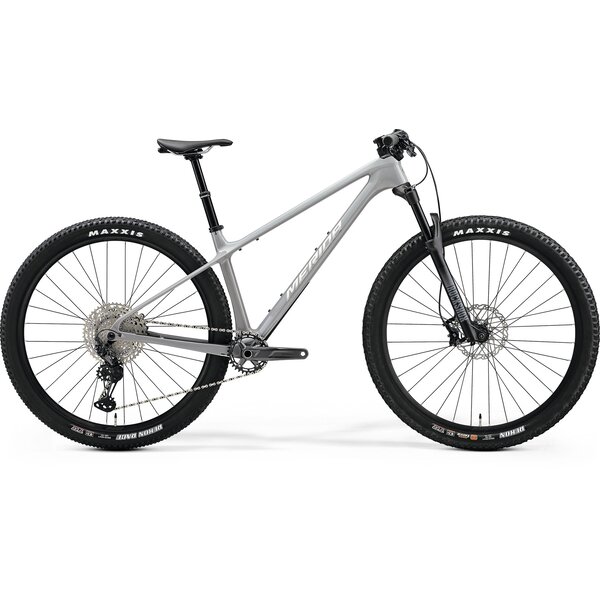

Merida Big Nine TR 5000 Mountain Bike

Information

Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job.

• Frame: CF3 III - carbon; Boost axle standard, BSA BB standard, Max. tyre size 29" x 2.4"
• Fork: RockShox Judy Gold; Air; 120mm travel; Tapered; Remote lockout; 51 mm fork offset
• Headset: Acros ICR Merida integrated neck; Upper and lower IPS sealing
• Stem: Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 60mm (S/M/L); 70mm (XL); incl. Merida Smart Mount - Garmin Carrier + Garmin insert *2 + GoPro/Light Mount
• Handlebar: Merida Expert CC; aluminium; 760mm wide; flat
• Grip: Merida Expert EC
• Brake Type: Hydraulic disc
• Front Brake: Shimano SLX M7100; 2 piston hydraulic disc brake with Shimano RT-54 180mm rotor
• Rear Brake: Shimano SLX M7100; 2 piston hydraulic disc brake with Shimano RT-54 160mm rotor
• Tyres: Maxxis Rekon Race; 29 x 2.4" WT; tubeless ready; 3C MaxxTerra EXO
• Rim: Merida Expert CC II; 25mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included)
• Front Hub: Shimano HB-TC500-B; 100 x 15mm; 32 Spokes; Centerlock
• Rear Hub: Shimano TC500-MS-B; 148 x 12mm; 32 Spokes; Centerlock with Merida Expert TR axle; including removeable lever, 6/4mm allen key
• Rear Derailleur: Shimano XT; SGS
• Shift Levers: Shimano Deore M6100 and JD-FL dropout lever
• Chain: KMC X12
• Cassette: Shimano Deore M6100; 10-51 teeth; 12 speed
• Chainset: Shimano Deore MT512; 32 tooth chainset with 170mm (S), 175mm M and above
• Bottom Bracket: Shimano BB-MT-501; 24mm
• Saddle: Merida Expert SL; V-mount; incl. Merida minitool
• Seat Post: Merida Team TR SL; 30.9mm diameter; in-line; S/M: 150mm seat post travel (S/M), 170mm seat post travel (L/XL/XXL)
