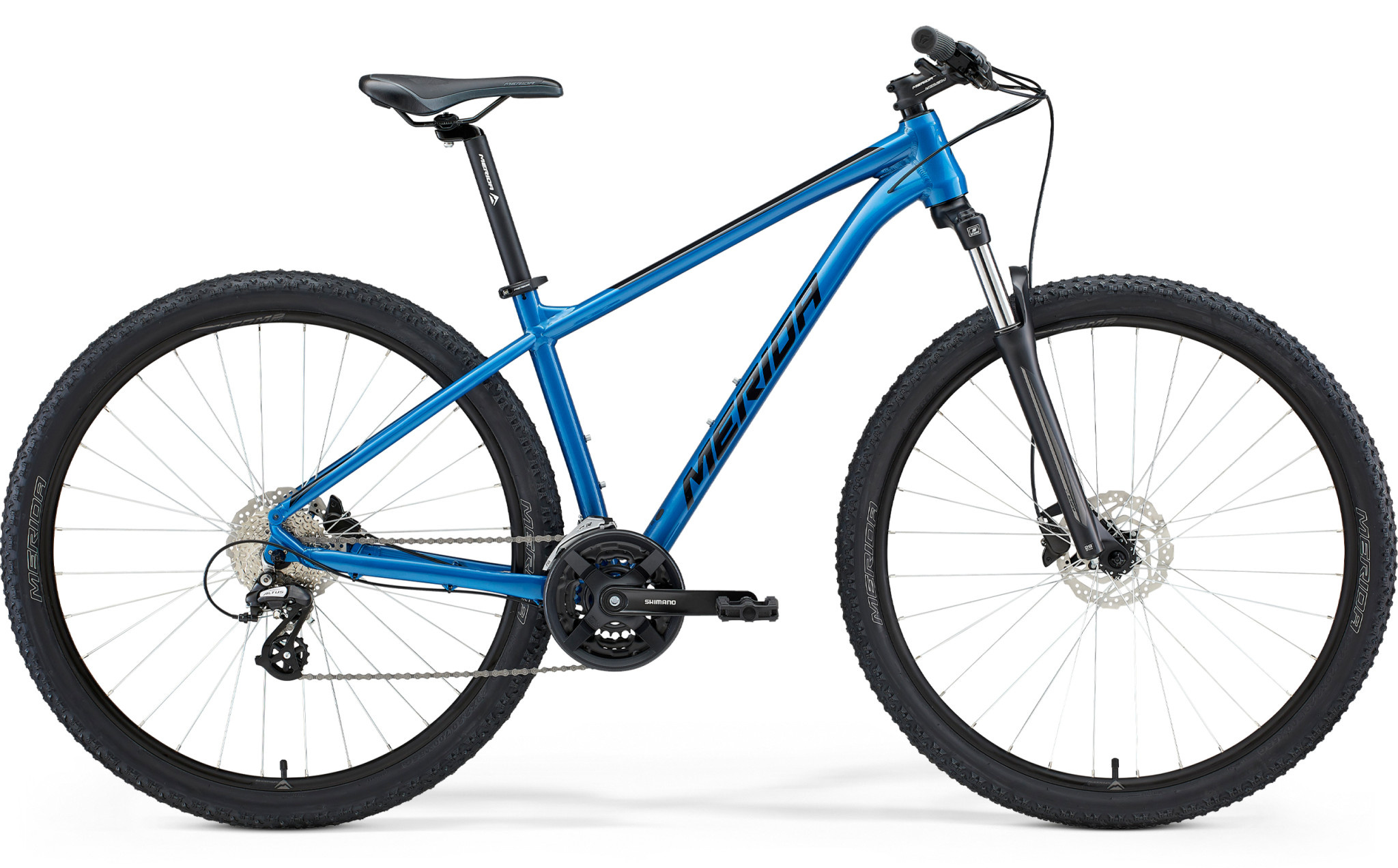

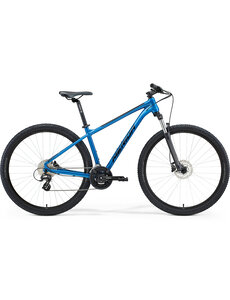

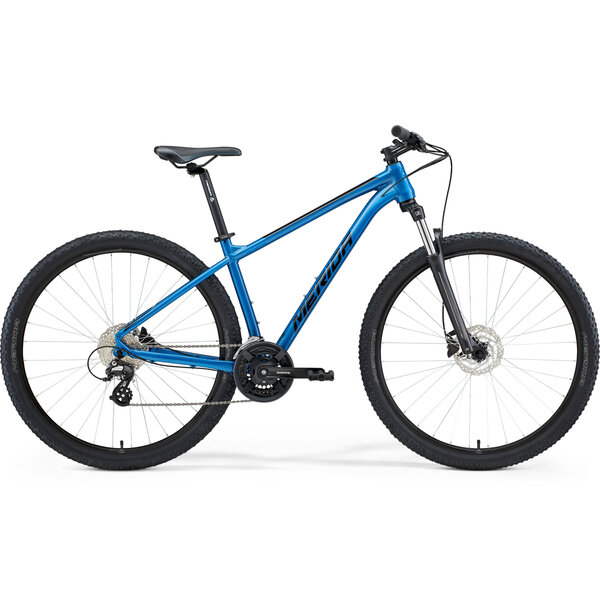

Merida Merida Big Nine 15D Hardtail Mountain Bike Blue/Black

Information

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. The UK version of the Big Nine and Big Seven 15 have been upgraded to use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.

• Frame: TFS III - 6061 aluminium, double butted and technoformed.  Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25"
• Fork: Suntour XCT30; Coil; 100mm travel. Max. tyre size: 29" x 2.25"
• Headset: Merida M2345
• Stem: Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
• Handlebar: Merida CC; aluminium; 690mm wide; 15mm rise
• Grip: Merida EC
• Brake Type: Hydraulic disc
• Front Brake: Power DS-100HT; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor
• Rear Brake: Power DS-100HT hydraulic disc brake caliper with Shimano RT10; 160mm rotor
• Tyres: Merida K1080; 29" x 2.2"; wire bead
• Wheel Size: 29"
• Rim: Merida CC; 17mm inner rim width; Aluminium
• Front Hub: Shimano TX505; 100x9mm; 32 spokes; Center lock
• Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Center lock
• Speeds: 24
• Front Derailleur: Shimano FD-TY700
• Rear Derailleur: Shimano RD-M310
• Shift Levers: MicroSHIFT TS39
• Chain: Sunrace M84
• Cassette: Sunrace CSM558AU; 11-32 teeth; 8 speed
• Chainset: Shimano TY301; 42-34-24 tooth chainset. Crank length: 175mm (M,L,XL)
• Bottom Bracket: FSA TH-7420ST-W, Cartridge Bearing
• Pedals: VP Components, VPE-891
• Saddle: Merida Sport comfort
• Seat Post: Merida CC; aluminium; 30.9mm diameter; 15mm lay back
