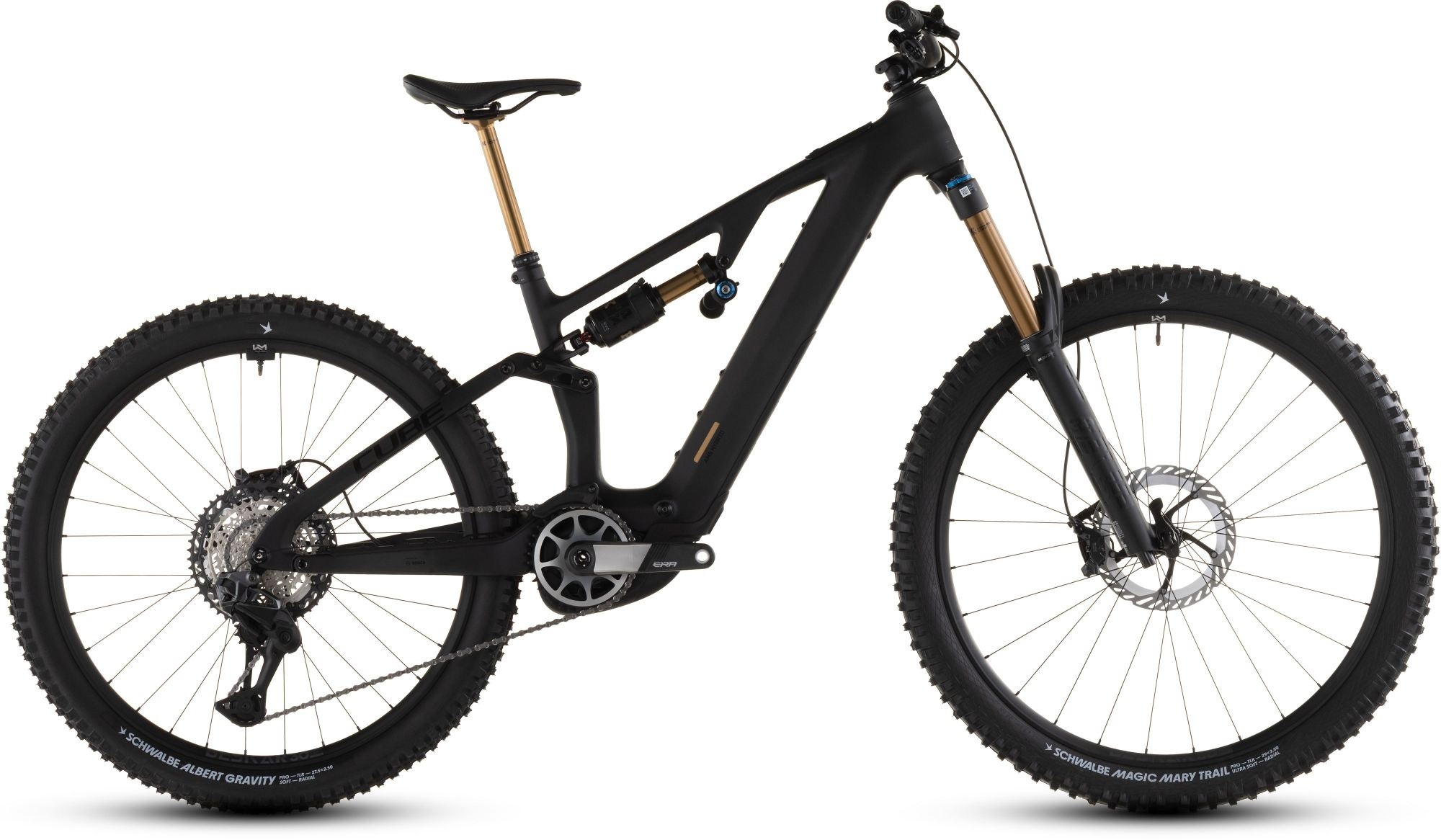

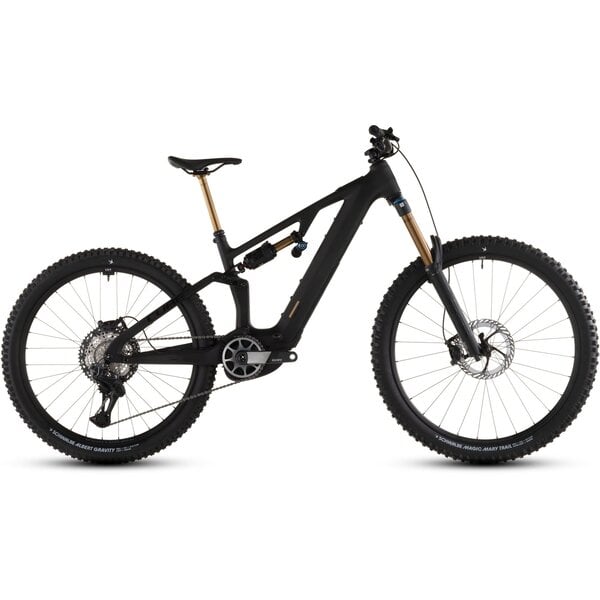

Cube Cube Ams Hybrid One77 C:62 At 600X Electric Mountain Bike MY26

Information

A bike fit for team riders needs components that'll last the course – literally. That's why, with the AMS Hybrid 177 C:62 AT 600X, we started with Fox's smooth and versatile Fox 38 Float Factory fork and matching Float X2 Factory shock. Shimano's electronic XT Di2 1x12 gears – with a RaceFace Era carbon crank – transfer the combined power of your legs and the Bosch CX-R drive to the trail. There's a Kiox 400C controller to put you in charge of the Bosch drive and 600Wh battery, of course. A dropper post, naturally. And powerful Shimano XT hydraulic disc brakes working with Schwalbe Magic Mary and Albert 2.5in tyres on Newmen Beskar 30 wheels to keep you on track and in control. The complete package, in other words, for big Alpine days out...

Frame description
We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62 carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

• Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
• Fork: Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
• Shock: Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
• Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Stem: Race Face Turbine R 35
• Handlebar/Bar extensions: Race Face ERA 35
• Handlebar tape/Grips: ACID Disrupt, Soft Compound
• Rear derailleur: Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
• Shifters: Shimano XT Di2 SW-M8250-IR, Direct Attach
• Brakes: Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
• Crankset: Race Face ERA E-MTB, 36T
• Crankset chainring sizes: 36T
• Cassette: Shimano XT CS-M8200, 10-51T
• Number of gears: 12
• Chain/Belt: Shimano XT CN-M8100
• Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Pedals: ACID PP MTB
• Saddle: ACID Venec EMTB Trail 140
• Engine: Bosch Drive Unit Performance Line CX-R 100Nm (BDU38)
• Battery: Bosch PowerTube 600
• Remote: Bosch Mini Remote
• Display: Bosch Kiox 400C
• Max. rider weight (kg): 110
