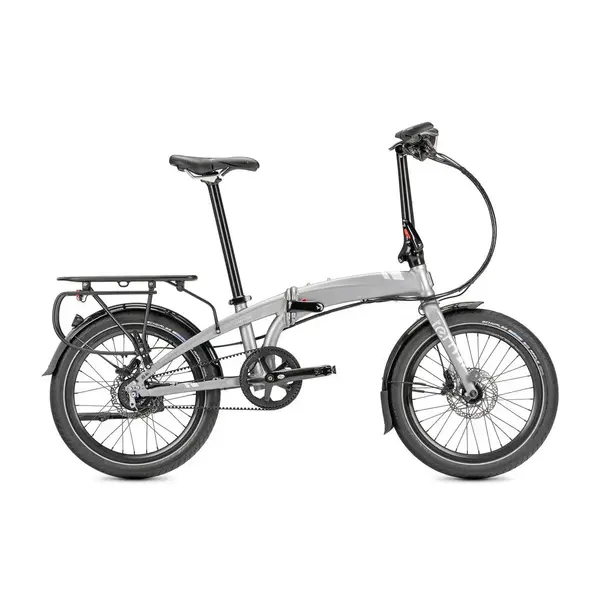

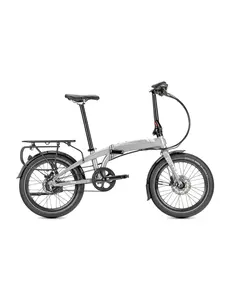

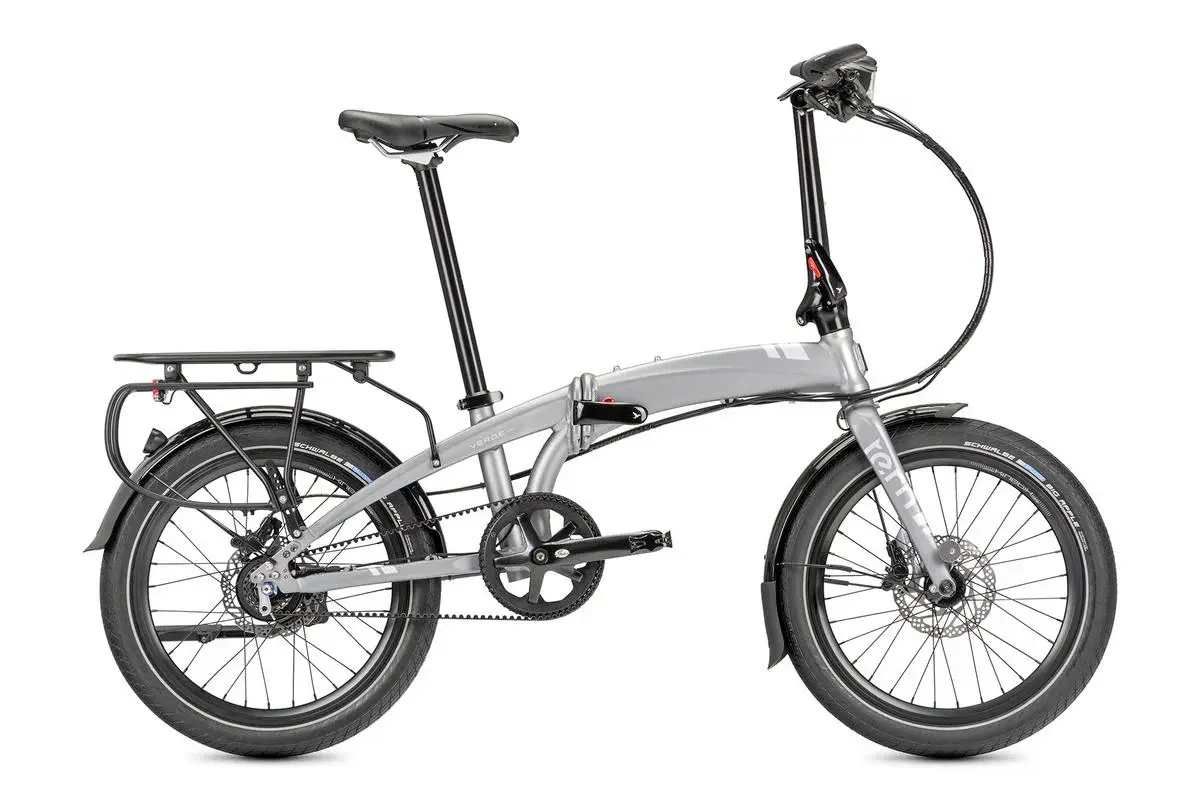

Tern Verge S8i Folding Bike Satin Metallic Grey /Silver

Information

The Verge S8i is the world’s most versatile ultra-low-maintenance folding bike. It’s designed around a Gates belt drive and Shimano’s 8-speed internal-gear Alfine hub. The result is a practically silent super-commuter with no greasy parts or protruding derailleurs, plus a gear range for any incline. The S8i has an extra-long wheelbase and Schwalbe Big Apple tires, so it rolls confidently over any and all potholes. It will get you there quickly, cleanly and most importantly, in style.

General Info
Speeds:
1 x 8
Weight:
14.3 kg (31.5 lb)
Gear Inches:
27"" - 83"" (2.15 - 6.60 m)
Frame Sizes:
One size
Folding Size:
42 × 81 × 73 cm (16.5 × 31.9 × 28.7 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
57 - 64 cm (22.4 - 25.2 in)
Distance: Saddle to Pedal:
71 - 96 cm (28 - 37.8 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Rider Weight:
105 kg (231.5 lb)

Frame
Frame:
Tern Verge, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies
Fork:
Tarsus, 6061-AL, hydroformed

Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Flux Pro, angular contact bearings, Physis integrated
Handlebar:
Kinetix Comp, double-butted 6061-AL
Grips/Bar Tape:
Phorm, w/ bar end
Saddle:
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost:
Stasis by Syntace, 7050-AL, hard-anodized
Seatpost Clamp:
Syntace OverLock

Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic

Wheels
Front Hub:
BioLogic Joule 3 dynamo, disc
Rear Hub:
Shimano Alfine, 8 spd
Spokes & Nipples:
Stainless, double-butted
Rims:
Kinetix Comp, doublewall
Tyres:
Schwalbe Big Apple 55-406, puncture protection, Reflex

Transmission
Shifter(s):
Shimano Alfine, 1 x 8 spd
Crankset:
Gates Carbon Drive
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Cartridge, sealed bearings
Chain:
Gates Carbon Drive belt
Pedals:
MKS UB-LITE EZY, QR
Shifter Cable & Housing:
Shimano

Bells & Whistles
Bell:
Pitch, brass
Kickstand:
Rear mount, Pletscher design
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Tern Valo 2, integrated, 41 lux/150 lumens
Rear Light:
Spanninga Pixeo XDS
Fenders:
SplashGuard, stainless hardware
Rack(s):
Tern Cargo Rack; Max load weight: 25 kg (55 lb)
