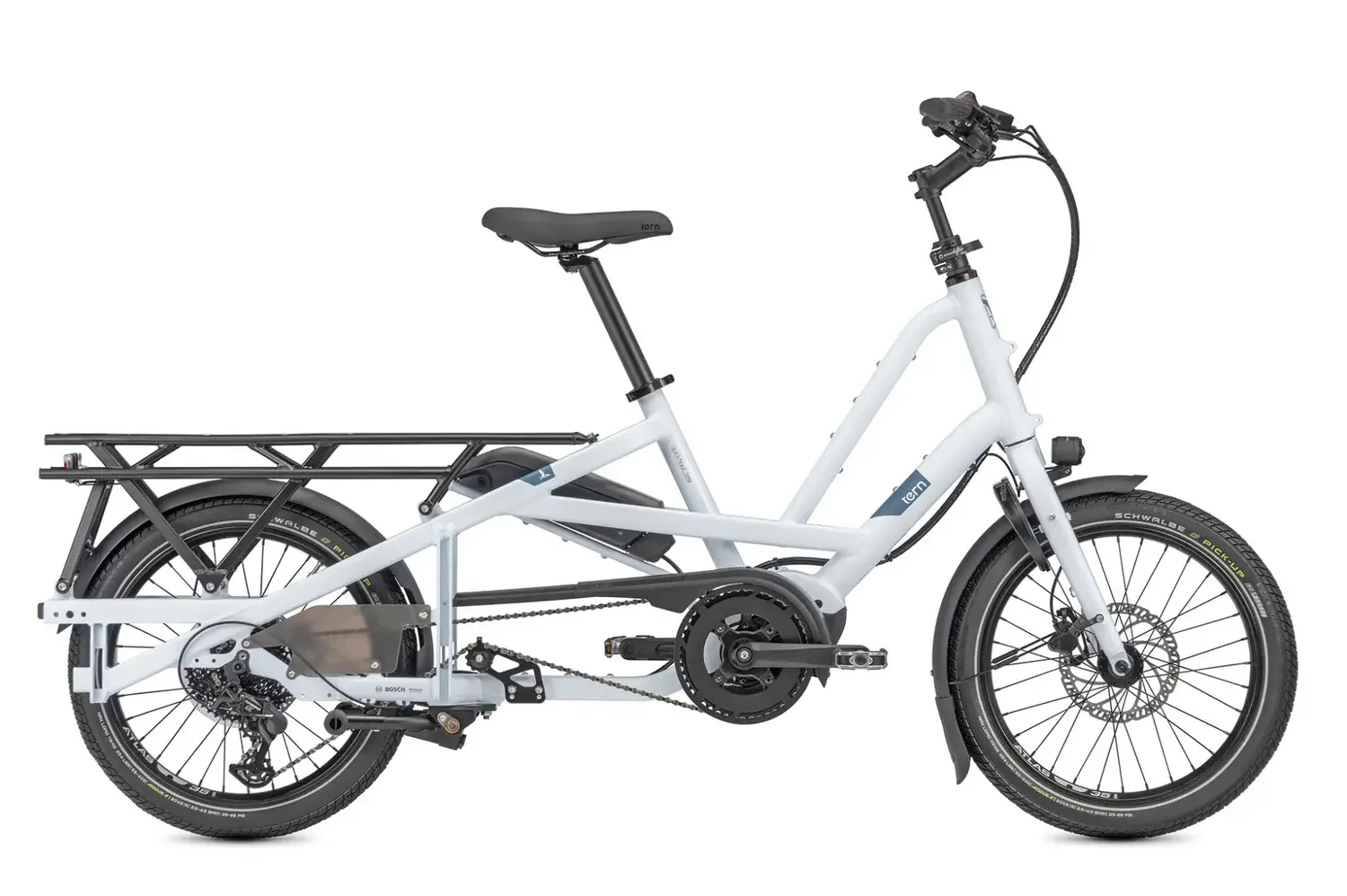

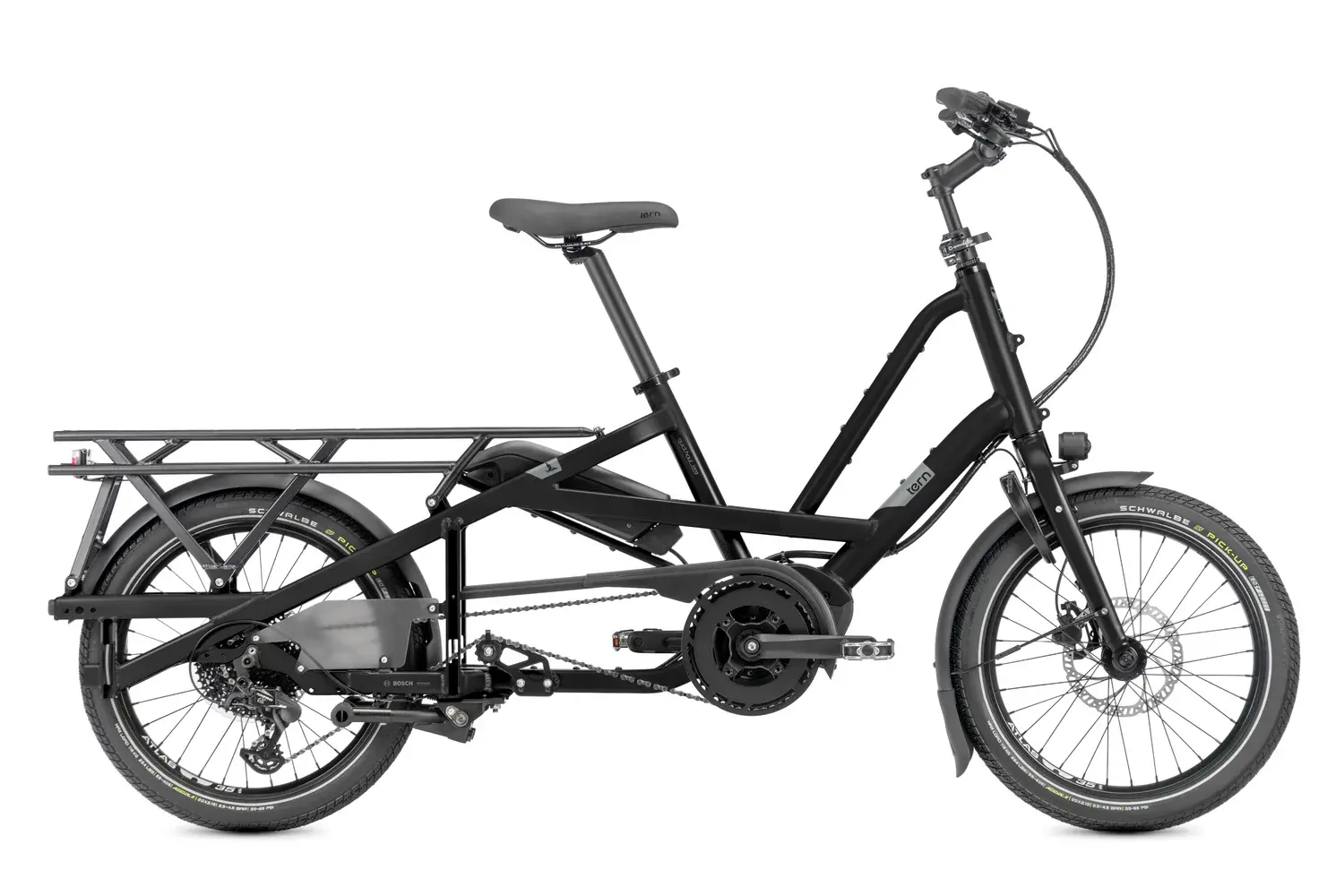

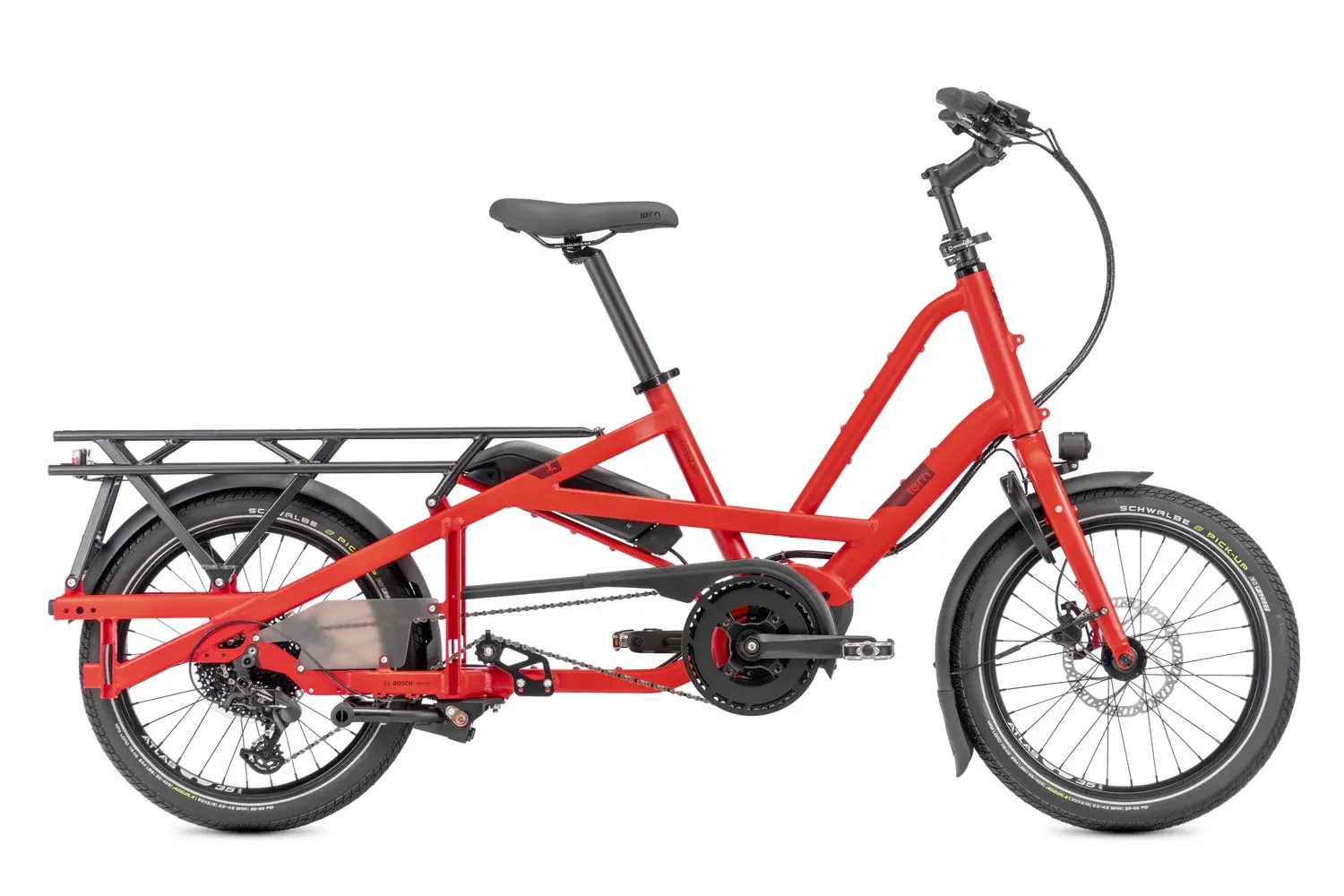

TERN Tern Quick Haul Long Electric Cargo Bike

Information

Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats. Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support. Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road.

General Info
Speeds:
1 x 9
Weight:
29.3 kg (64.6 lb)
Gear Inches:
23" - 89" (1.87 - 7.13 m)
Frame Sizes:
One size
Bike Size:
187 × 70 × 102.5 cm (73.6 × 27.6 × 40.4 in)
Wheelbase:
130 cm (51.2 in)
Standover Height:
48 cm (18.9 in)
Distance: Seatpost to Handlebar:
60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal:
76 - 99 cm (29.9 - 39 in)
Suggested Rider Height:
155 - 190 cm (61 - 74.8 in)
Max Gross Vehicle Weight:
190 kg (418.9 lb)
Max Rider Weight:
120 kg (264.6 lb)

Frame
Frame:
Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork:
Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)

Cockpit
Stem:
Speedlifter, adjustable, 3D forged stem, 31.8
Headset:
TH, cartridge bearings
Handlebar:
Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Velo Comfort
Seatpost:
34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp:
Tern Collar

Brakes
Front Brake:
Tektro hydraulic disc
Rear Brake:
Tektro hydraulic disc
Brake Levers:
Tektro hydraulic disc

Wheels
Front Hub:
Disc, aluminum
Rear Hub:
9 spd, disc, aluminum, Boost
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas H, cargo
Tyres:
Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex

Transmission
Shifter(s):
Tektro, 1 x 9 spd, trigger
Rear Derailleur:
Tektro custom for Tern, 1 x 9 spd
Crankset:
Tern custom, forged 6061-AL crankarm, anti-drop chainring
Cassette/Freewheel:
Tektro 11-42T, 9 spd
Bottom Bracket:
Motor integrated
Chain:
KMC for eBike, 9 spd
Pedals:
Urban with non-slip surface
Shifter Cable & Housing:
SP

E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch PowerPack 400
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
400 Wh: 42-85 km (26-53 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles
Bell:
Aluminum
Chainguard:
SKS Chainblade
Kickstand:
Atlas Kickstand, for cargo
Luggage Socket:
Combo Mount
Front Light:
90 lux, StVZO approved
Rear Light:
Herrmans
Fenders:
SplashGuard, stainless hardware
Rack(s):
Atlas L, 90 kg (198 lb) capacity
Frame Lock:
ABUS or AXA, keyed-alike with Bosch battery
