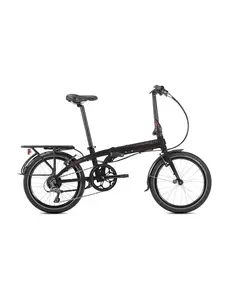

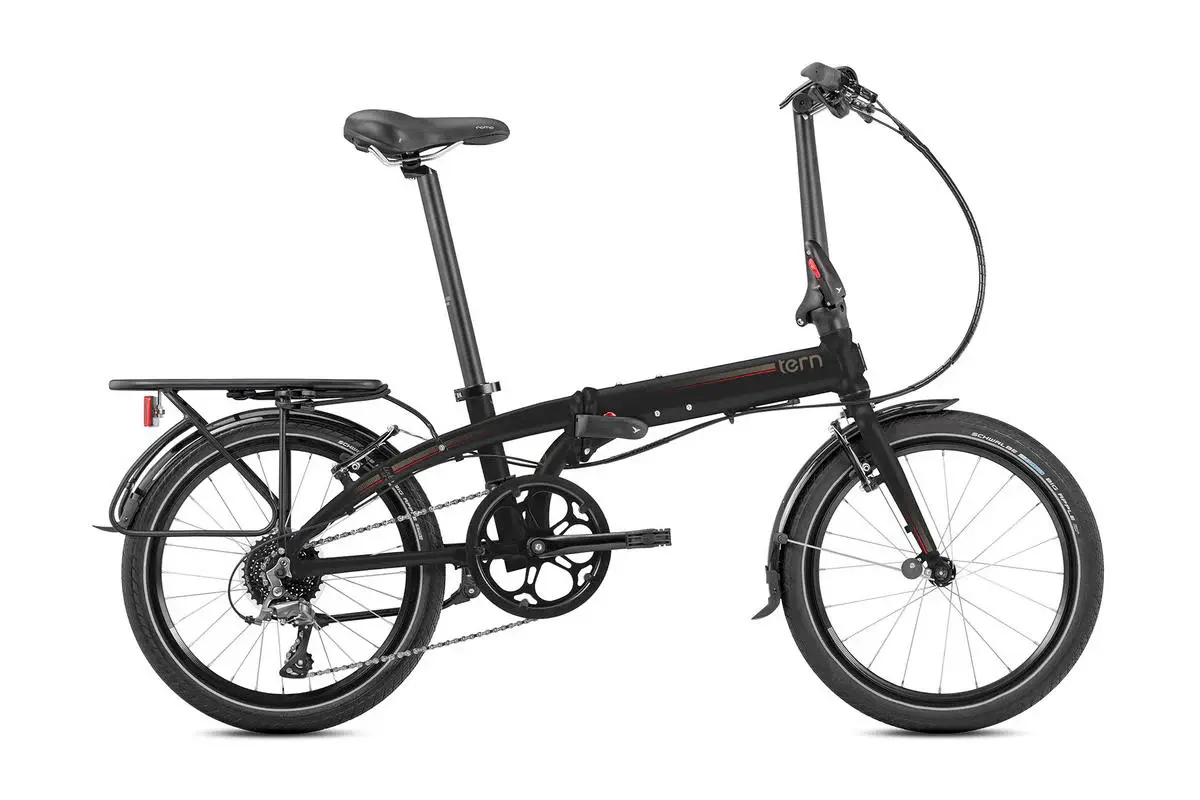

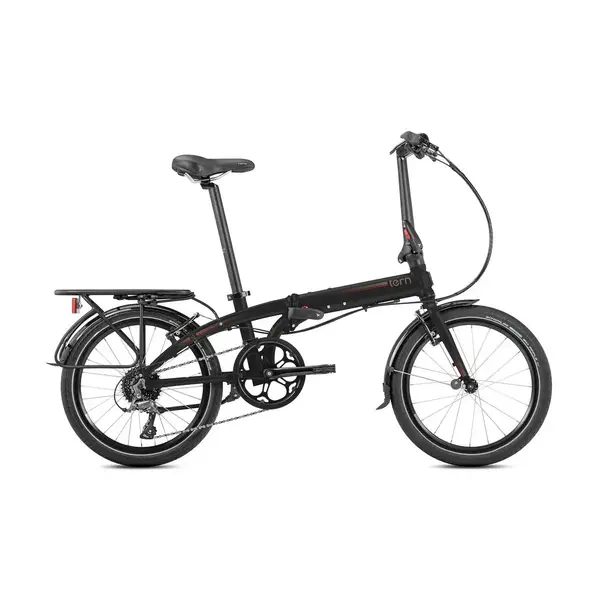

Tern Link D8 Folding Bike Matte Midnight/Reflex Magenta (Reflex Yellow)

Information

Mobile phones, umbrellas, point and shoot cameras—the natural arc of evolution moves in a direction of increasing portability—the bicycle is no different. The Link D8 is your everyday travel companion, whether your trip is exclusively on two wheels or in combination with buses, trains, or automobiles.

General Info
Speeds:
1 x 8
Weight:
12.1 kg (26.7 lb)
Gear Inches:
33"" - 87"" (2.60 - 6.94 m)
Frame Sizes:
One size
Folding Size:
38 × 79 × 72 cm (15 × 31.1 × 28.3 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal:
70 - 96 cm (27.6 - 37.8 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Rider Weight:
105 kg (231.5 lb)

Frame
Frame:
Tern Link, aluminum, OCL+ joint, 3 patented technologies
Fork:
Integrated, hi-tensile steel

Cockpit
Handlepost:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm
Stem:
Tern Andros (G2), adjustable, forged construction, patented technology
Headset:
Flux, cartridge bearings, Physis integrated
Handlebar:
Flat bar, 6061-Al, Andros butted
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
BioLogic Como DLX
Seatpost:
SuperOversize, 6061-AL, micro-adjust clamp
Seat Clamp:
SuperOversize, 6061-AL

Brakes
Front Brake:
V, aluminum, linear spring
Rear Brake:
V, aluminum, linear spring
Brake Levers:
V, aluminum bracket/lever
Brake Cable & Housing:
Anti-compression housing, slick cables

Wheels
Front Hub:
Mini, aluminum, QR Opt: Panasonic dynamo
Rear Hub:
Formula, 8 spd cassette
Spokes & Nipples:
Sapim Leader, stainless steel
Rims:
Doublewall aluminum
Tyres:
Schwalbe Big Apple, 50-406, puncture protection, Reflex

Transmission
Shifter(s):
Shimano, 1 x 8 spd, trigger
Rear Derailleur:
Shimano Claris
Crankset:
Forged 6061 aluminum crank arms, hand-polished
Cassette/Freewheel:
11-32T, 8 spd
Bottom Bracket:
Cartridge, sealed bearings
Chain:
8 spd
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SP

Bells & Whistles
Bell:
Aluminum
Kickstand:
Deluxe center mount
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Front Light:
Opt: Tern Valo 2, integrated, 41 lux/150 lumens
Rear Light:
Opt: Deluxe LED
Fenders:
Opt: RP Chromeplastic, stainless hardware
Rack(s):
Opt: Tern Loader Rack
