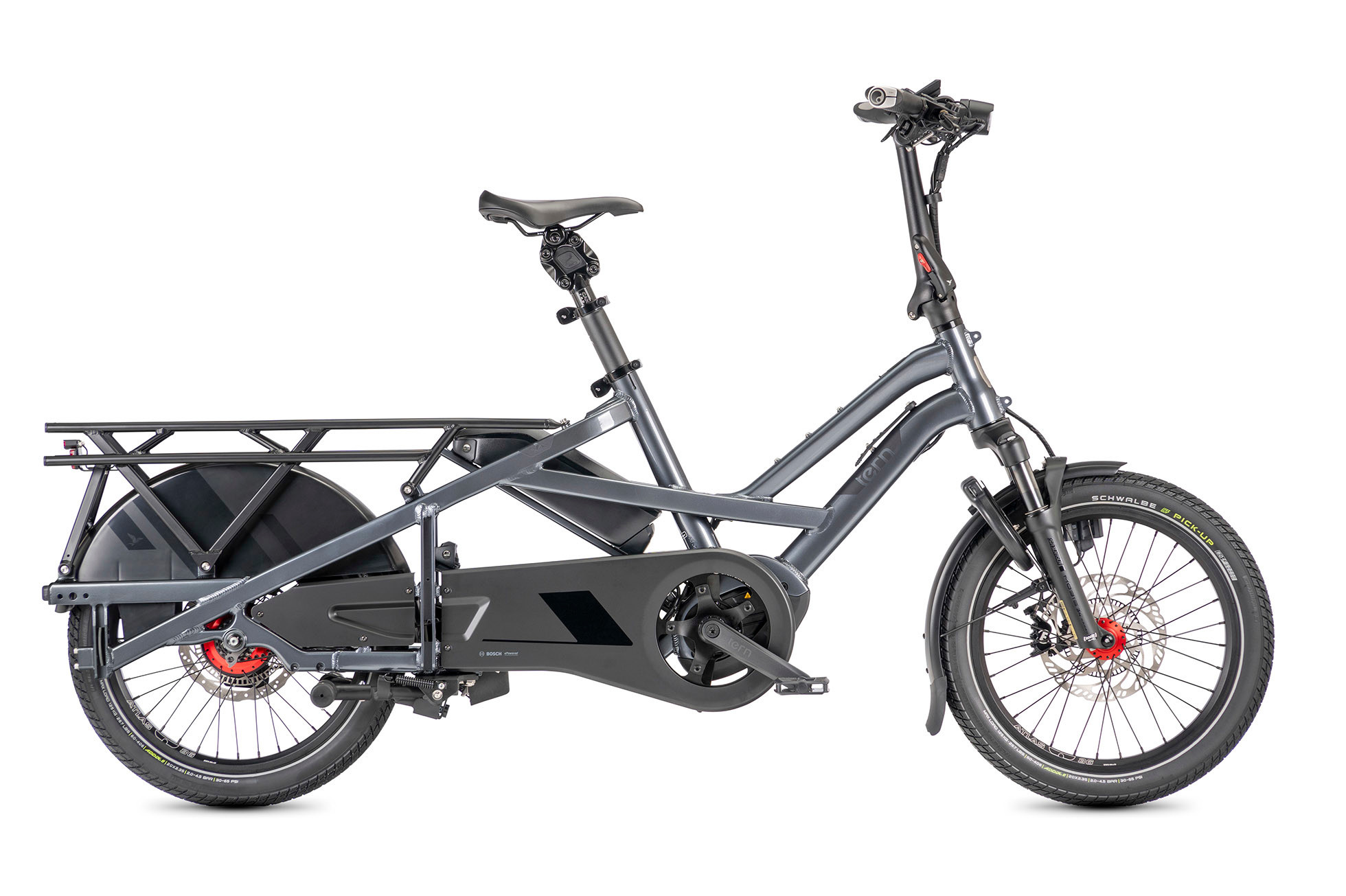

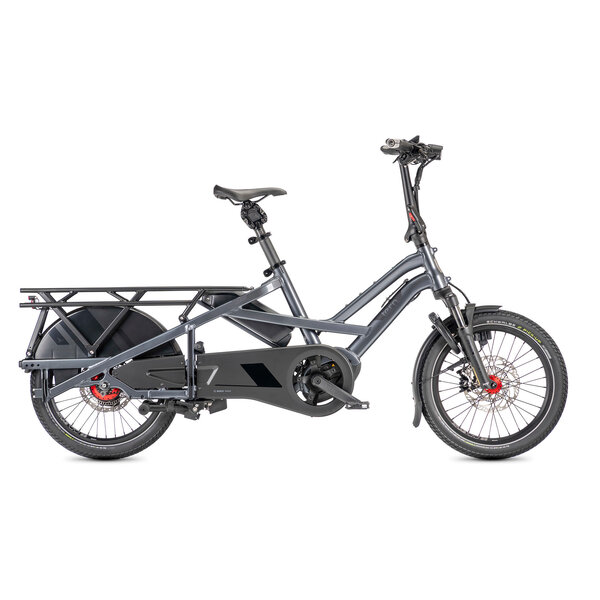

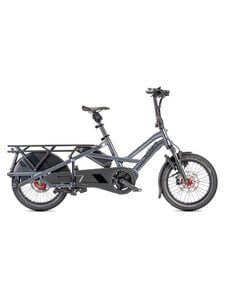

Tern GSD R14 Gen 3 Electric Cargo Bike Iron Grey/Dark Grey

Information

Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more. Bosch Anti-Lock Braking System enables safer, more efficient braking. Dual-battery compatible, ready to power through heavy use and long distances of up to 288 km (179 mi).

General Info
Speeds:
1 x 14
Weight:
38.77 kg (85.5 lb)
Gear Inches:
18"" - 96"" (1.45 - 7.64 m)
Frame Sizes:
One size
Bike Size:
192 × 68 × 118 cm (75.6 × 26.8 × 46.5 in)
Wheelbase:
136 cm (53.5 in)
Standover Height:
49 cm (19.3 in)

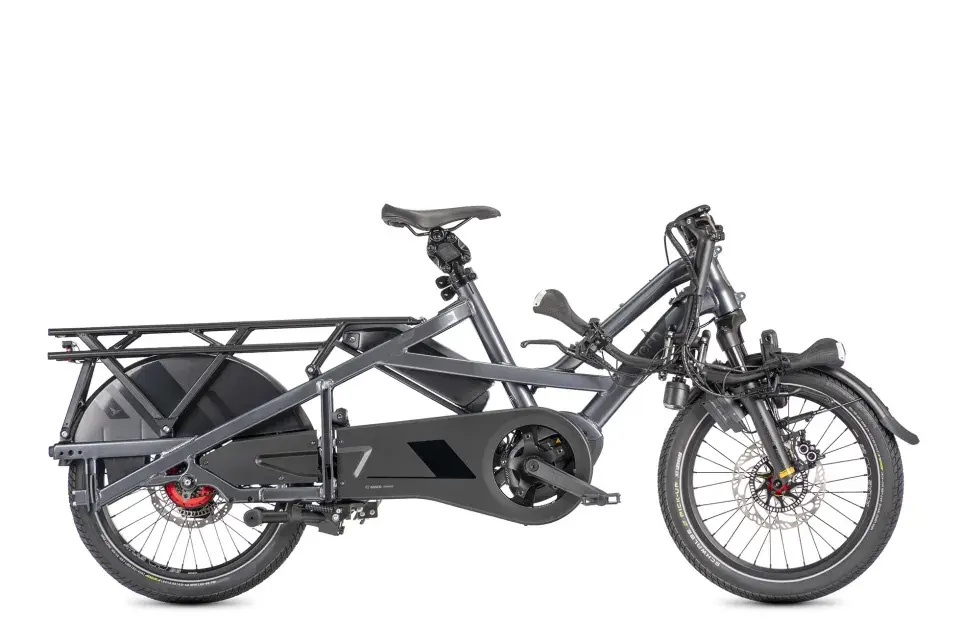

Folding Size:
185 × 46 × 88 cm (72.8 × 18.1 × 34.6 in)
Folding Time:
5 seconds
Distance: Seatpost to Handlebar:
49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal:
69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height:
153 - 200 cm (60.2 - 78.7 in)
Max Gross Vehicle Weight:
210 kg (463 lb)
Max Load Weight:
210 kg (463 lb)
Max Rider Weight:
130 kg (286.6 lb)

Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork:
Suntour custom for Tern, 1.5"" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper by FSA, 1.5"", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern GSD by Velo
Seatpost:
Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
Seatpost Clamp:
Tern Collar

Brakes
Front Brake:
Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake:
Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers:
Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing:
Magura ABS, hydraulic

Wheels
Front Wheel:
Tern Atlas, heavy duty cargo wheel
Rear Wheel:
Tern Atlas, heavy duty cargo wheel
Front Hub:
Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub:
Rohloff E14, 526% range, Boost
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres:
Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex

Transmission
Shifter(s):
Rohloff E14, e-shift 14 spd
Crankset:
Tern GSD, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Motor integrated
Chain:
Gates Carbon Drive CDX belt
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Rohloff E14, e-shift

E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch 800 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Display:
Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Android app, electronic bike lock, Rohloff integrated shifting w/ auto downshift
Range:
800 Wh: 67-144 km (42-89 mi); 1600 Wh: 134-288 km (83-179 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Connect Module:
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System:
Bosch Anti-Lock Braking System, Gen 2

Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern GSD, full chain cover
Kickstand:
Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light:
RearStop Brake Light, Always on
Fenders:
F: Aluminum R: GSD wheel guard
Rack(s):
Atlas G, 100 kg (220 lb) capacity
Frame Lock:
ABUS or AXA, keyed-alike with Bosch battery
On-board Charging:
USB-C, 5V/2.4A, 12W max
