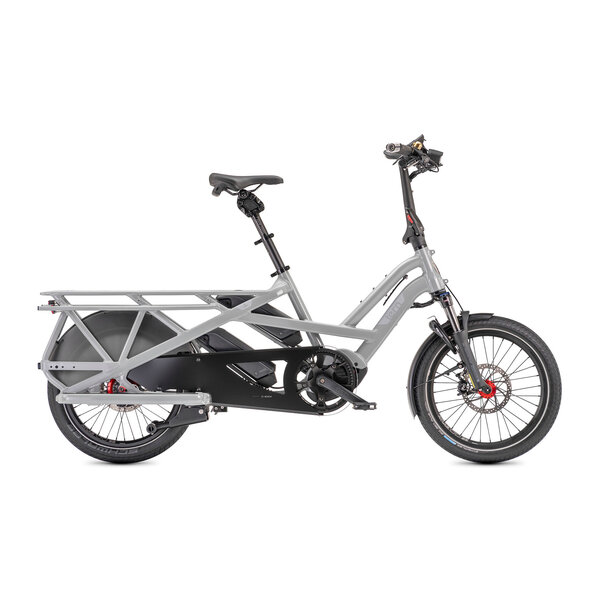

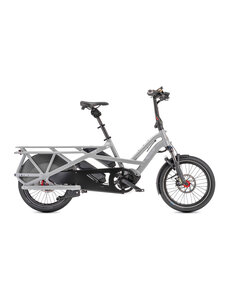

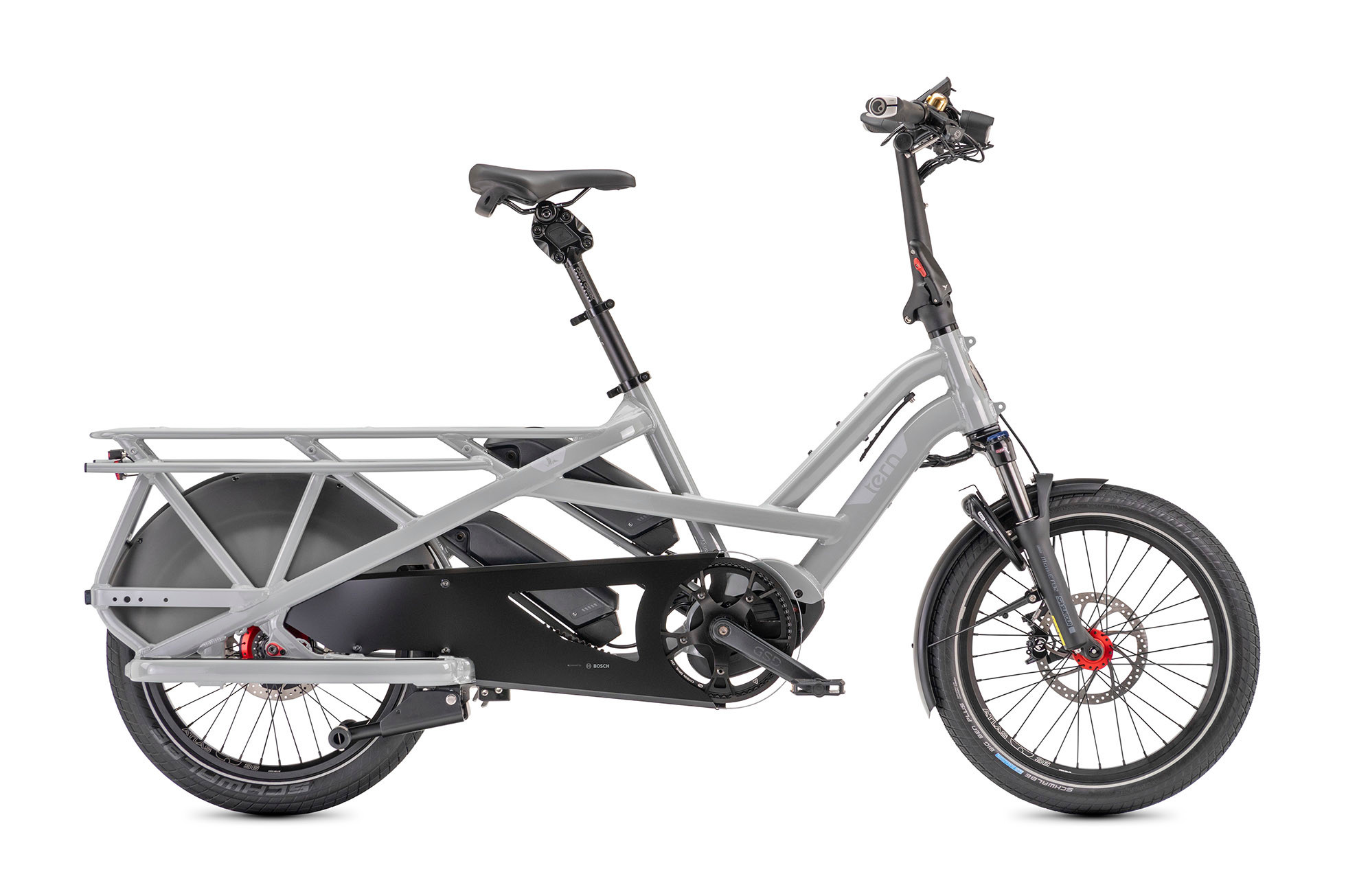

Tern GSD R14 Gen 2 Electric Cargo Bike Gloss Forge Grey/Silver

Information

200 kg (440 lb) Maximum Gross Vehicle Weight. Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support. Bosch dual-battery system (1000 Wh) for a range of up to 206 km (128 mi).

General Info
Speeds:
1 x 14
Weight:
37.26 kg (82.1 lb)
Gear Inches:
19"" - 102"" (1.54 - 8.10 m)
Frame Sizes:
One size

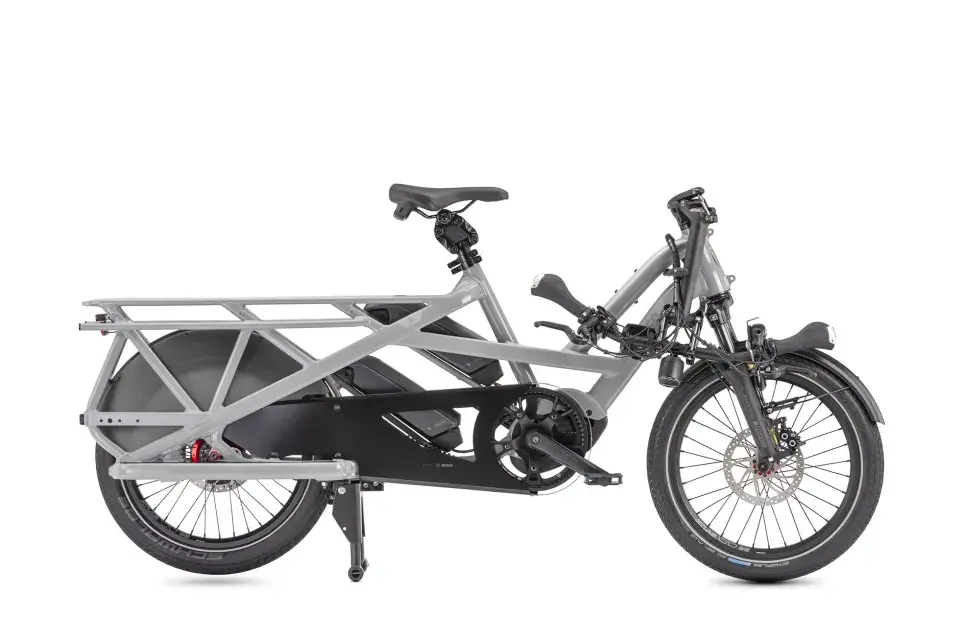

Folding Size:
176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
Folding Time:
5 sec
Distance: Seatpost to Handlebar:
49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal:
69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height:
150 - 195 cm (59.1 - 76.8 in)
Max Gross Vehicle Weight:
200 kg (440.9 lb)
Max Rider Weight:
120 kg (264.6 lb)

Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Fork:
Suntour custom for Tern, 1.5"" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper, 1.5"", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bazar Tape:
Ergon
Saddle:
Tern GSD by Velo, with rear handle
Seatpost:
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc

Brakes
Front Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers:
Magura MT5 e-stop, hydraulic, with brake sensor

Wheels
Front Hub:
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub:
Rohloff E14, 526% range, Boost
Spokes & Nipples:
Stainless steel, 13G
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

Transmission
Shifter(s):
Rohloff E14, e-shift 14 spd
Crankset:
Tern GSD custom, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Motor integrated
Chain:
Gates Carbon Drive CDX belt
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Rohloff E14, e-shift

E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch Dual Battery system, 1000 Wh
Display:
Bosch Intuvia, Rohloff integrated shifting w/ auto downshift
Range:
1000 Wh: 102-206 km (63-128 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern Custom, full chain cover
Kickstand:
Atlas Lockstand, w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light:
RearStop Brake Light, Always on brake light
Fenders:
Integrated Wheel Guard, AL6061, w/ Side Skirt
Rack(s):
Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
Accessory:
ABUS, keyed-alike with Bosch battery
