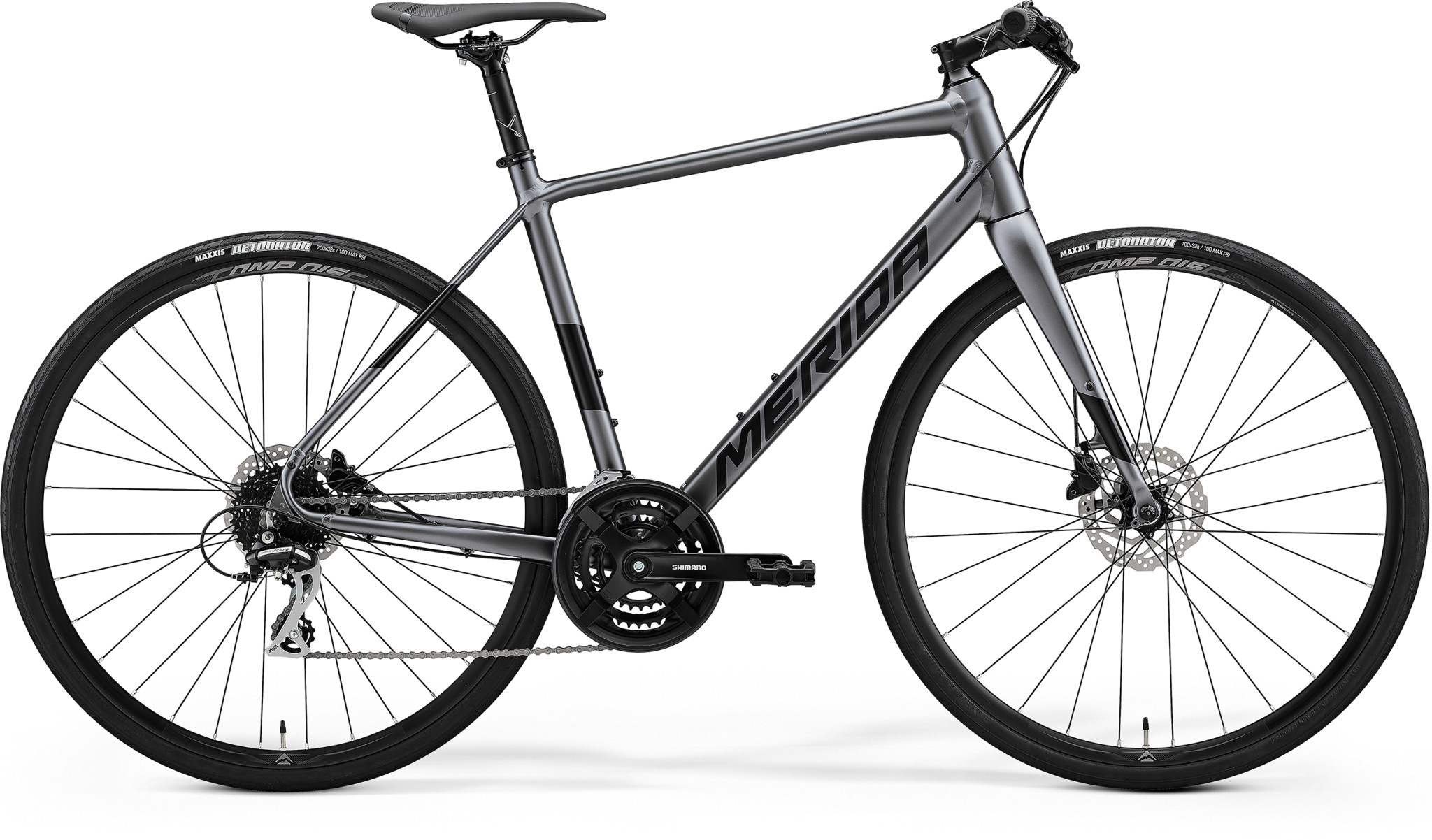

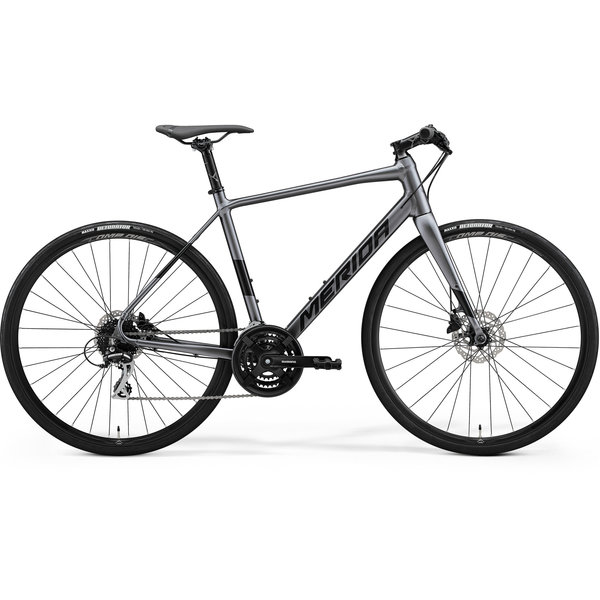

Merida Merida Speeder 100D Lightweight City Fitness Bike
Specifications
Information
Fast and lightweight, the Speeder shares some of its genes with road bikes. The frame geometry is sporty with a more upright riding position that's noticeably different to conventional road bikes with drop bars, making it an excellent choice for riders wanting road bike style and efficiency with added comfort. Merida use the same triple butted 6066 series aluminium they use on road bikes which is hydroformed to tune the frame for a comfortable, responsive ride. The addition of a full carbon fork with a tapered steerer delivers precise steering and a smooth ride. The upright position, flat bars and powerful hydraulic disc brakes are ideal for commuting, providing greater control and an enhanced field of vision when riding through traffic. For versatility, the frame can accommodate wider tyres up to 35mm, or 32mm with mudguards.
- Frame: Lite II - 6066 triple butted hydroformed aluminium. Internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 135 x 9mm QR axle. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 35c (700 x 32c with mudguard)
- Fork: Speeder CF2; Full carbon, tapered steerer, 100 x 9mm QR standard, Max tyre size: 700 x 35c (700 x 32c with mudguard)
- Headset: Merida M2331 Neck
- Stem: Merida Comp CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 80mm (XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)
- Handlebar: Merida Comp TK; aluminium; 600mm wide; Flat
- Grip: Merida Comp EC
- Brake Type: Hydraulic disc
- Front Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
- Rear Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor
- Tyres: Maxxis Detonator; 700 x 32C; wire bead
- Wheel Size: 700c
- Rim: Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium
- Front Hub: Joytech D471SBT-SC-CL; 100x9mm; 28 spokes; Center lock; Quick Release
- Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Center lock; Quick Release
- Speeds: 24
- Front Derailleur: Shimano TY710
- Rear Derailleur: Shimano Acera-X
- Shift Levers: Shimano ST-EF505-8 EZ-fire
- Chain: KMC M700
- Cassette: Sunrace CSM558AU; 11-32 teeth; 8 speed
- Chainset: Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm all sizes
- Bottom Bracket: FSA TH-7420ST, Cartridge Bearing
- Pedals: VP Components, VPE-891
- Saddle: Merida Comp SL with V-mount
- Seat Post: Merida Comp CC; aluminium; 30.9mm diameter; 5mm lay back
