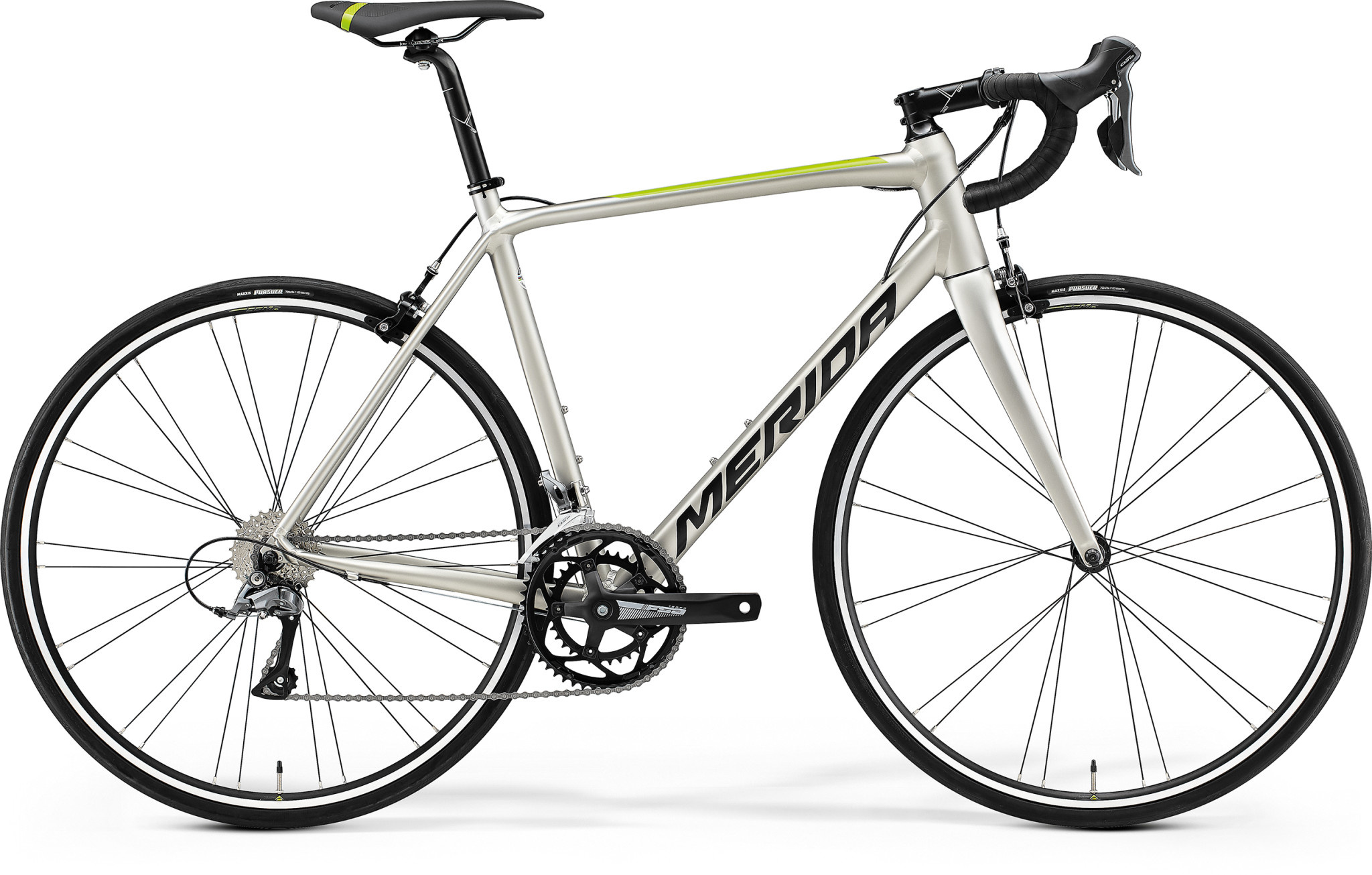

Scultura 100 Rim Brake Road Bike Titanium / Green

Information

The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories. The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.

• Frame: Lite BSA - 6066 triple butted and hydroformed aluminium with smooth welding.  Tapered head tube. BSA BB standard, 9mm QR axle standard, Internal cable routing. Maximum tyre clearance 700 x 25c
• Fork: Scultura Rim CF2; full carbon. Tapered steerer. Max tyre size: 700 x 25c
• Headset: Merida M2339 Neck
• Stem: Merida Comp CC; aluminium; 31.8mm diameter; -6 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)
• Handlebar: Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
• Grip: Merida Road Comp
• Brake Type: Calliper
• Front Brake: Dual Pivot calliper
• Rear Brake: Dual Pivot calliper
• Tyres: Maxxis Pursuer; 700 x 25C; Kevlar bead; folding
• Wheel Size: 700c
• Rim: Merida Comp SL; 17mm inner rim width; 20mm rim depth; aluminium
• Front Hub: Road sealed bearing; 100x9mm; 24 spokes; Quick Release
• Rear Hub: Road sealed bearing; 130x9mm; 28 spokes; Quick Release
• Speeds: 16
• Front Derailleur: Shimano Claris
• Rear Derailleur: Shimano Claris; GS
• Shift Levers: Shimano Claris
• Chain: KMC M700
• Cassette: Sunrace CS8; 11-28 teeth; 8 speed
• Chainset: FSA Tempo; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL)
• Bottom Bracket: FSA TH-7420ST, Cartridge Bearing
• Pedals: Not included
• Saddle: Merida Comp SL with V-mount
• Seat Post: Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back
