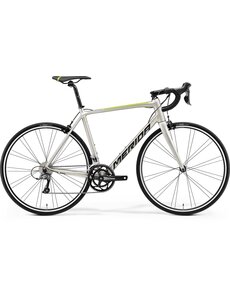

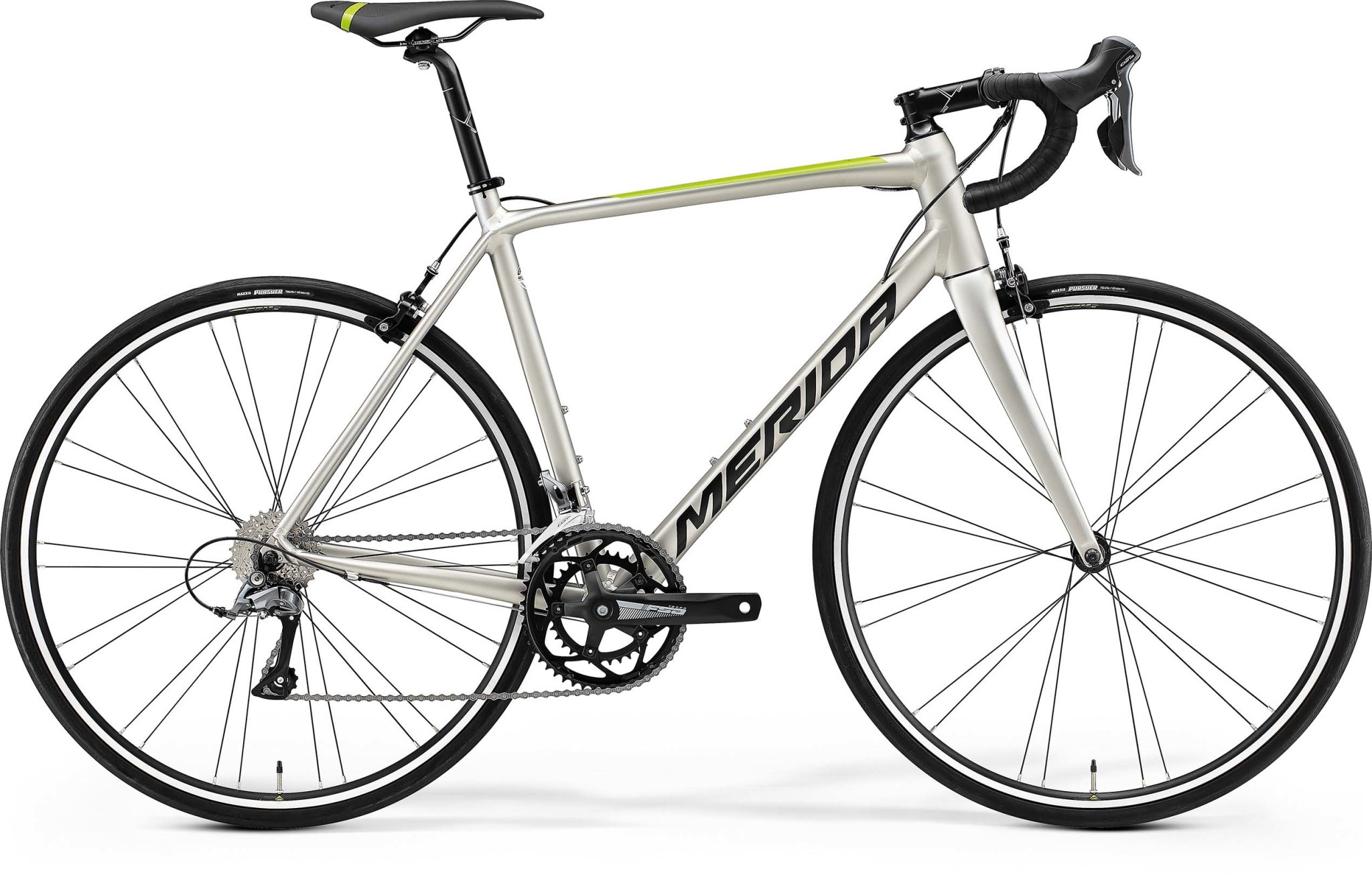

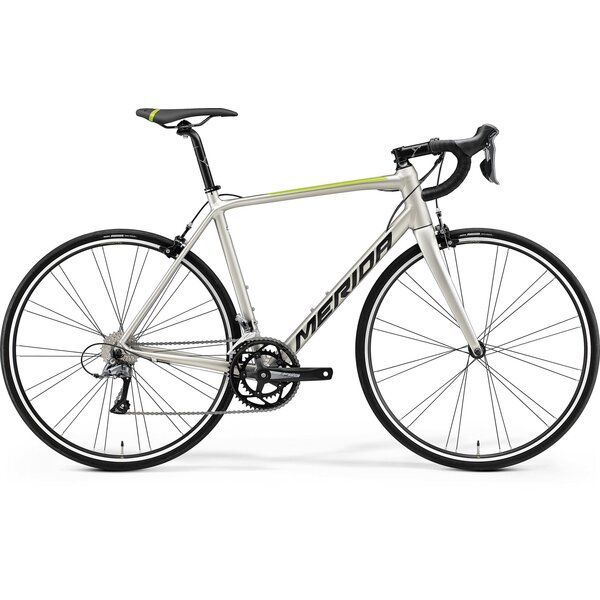

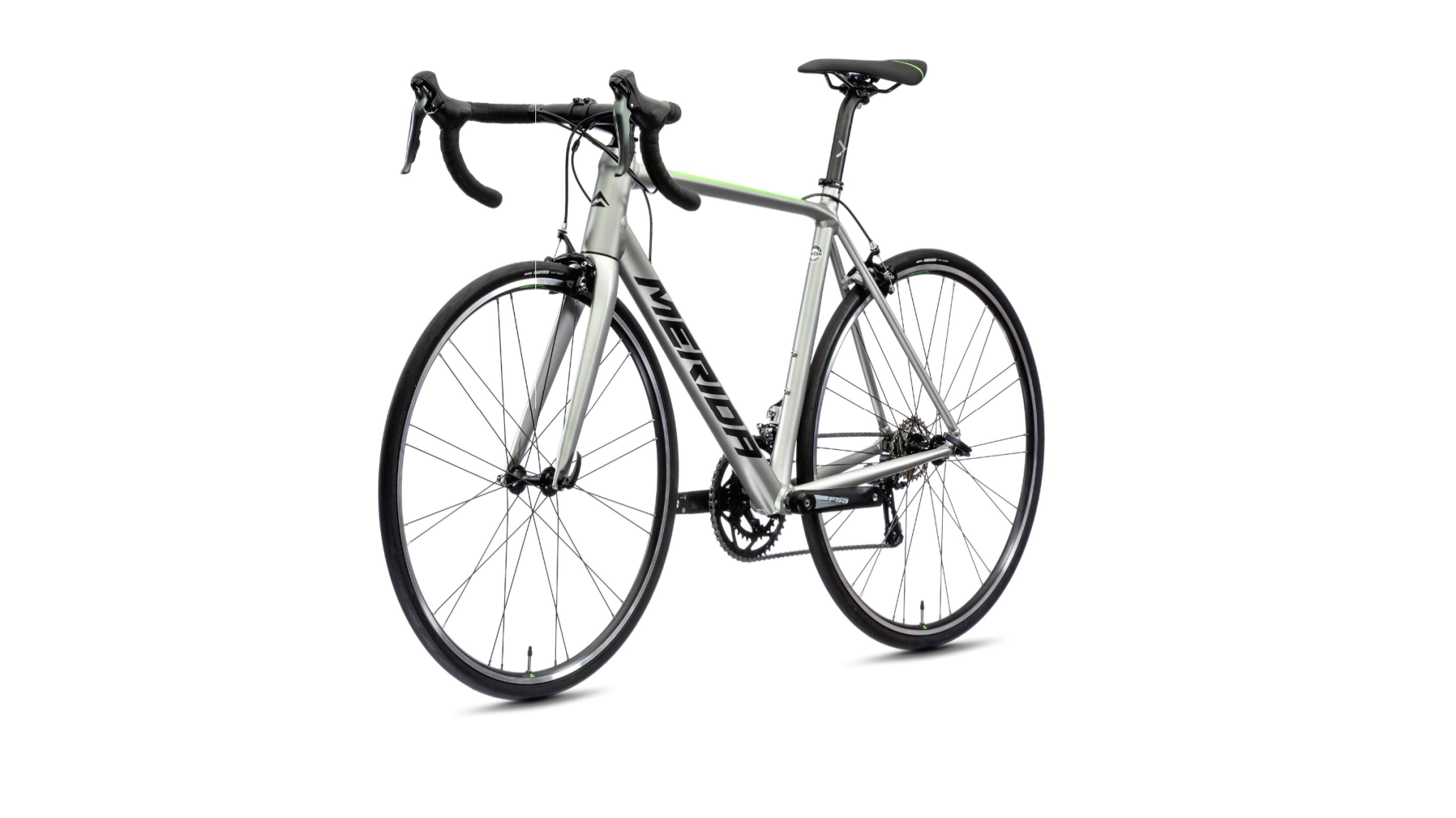

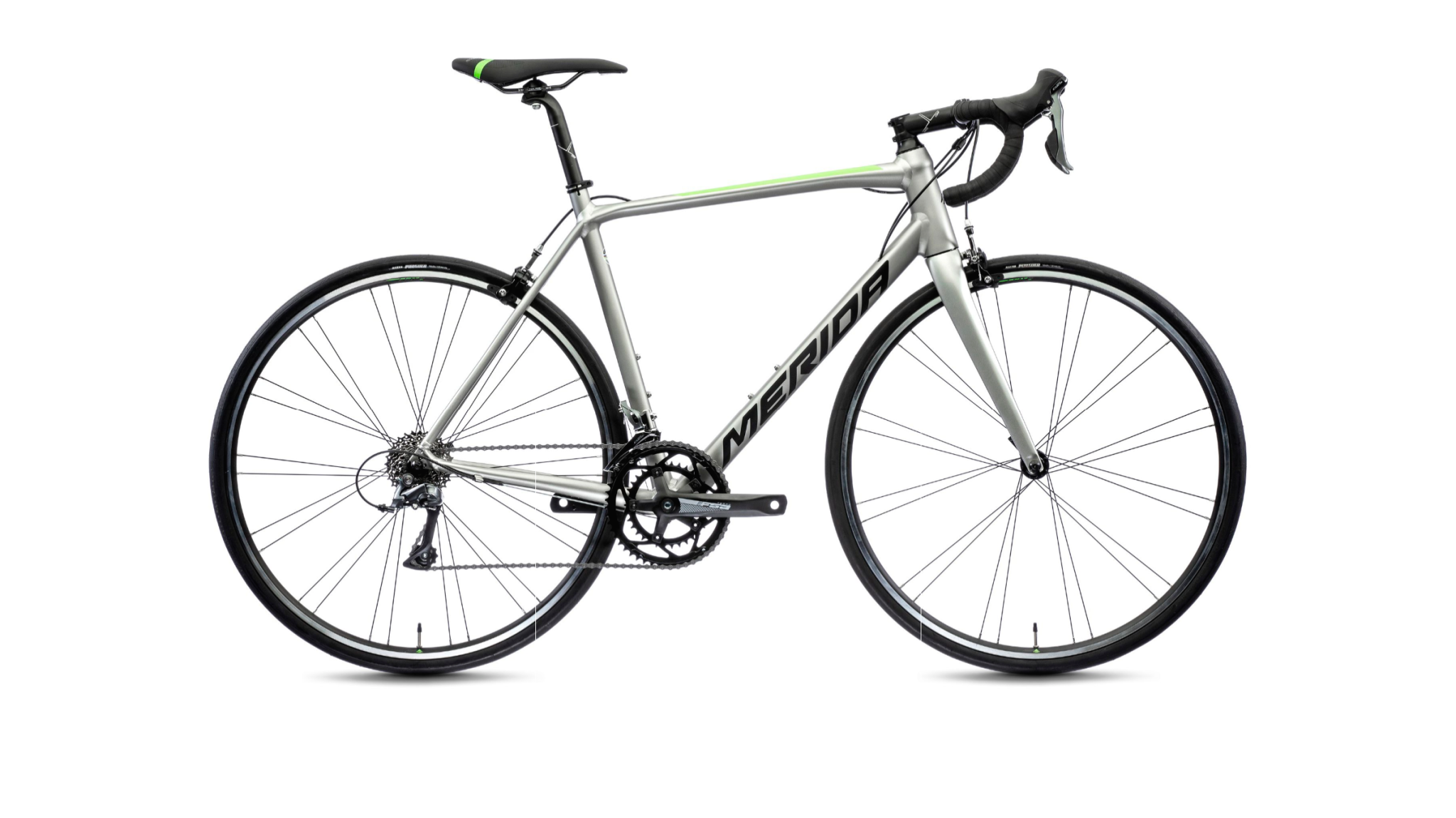

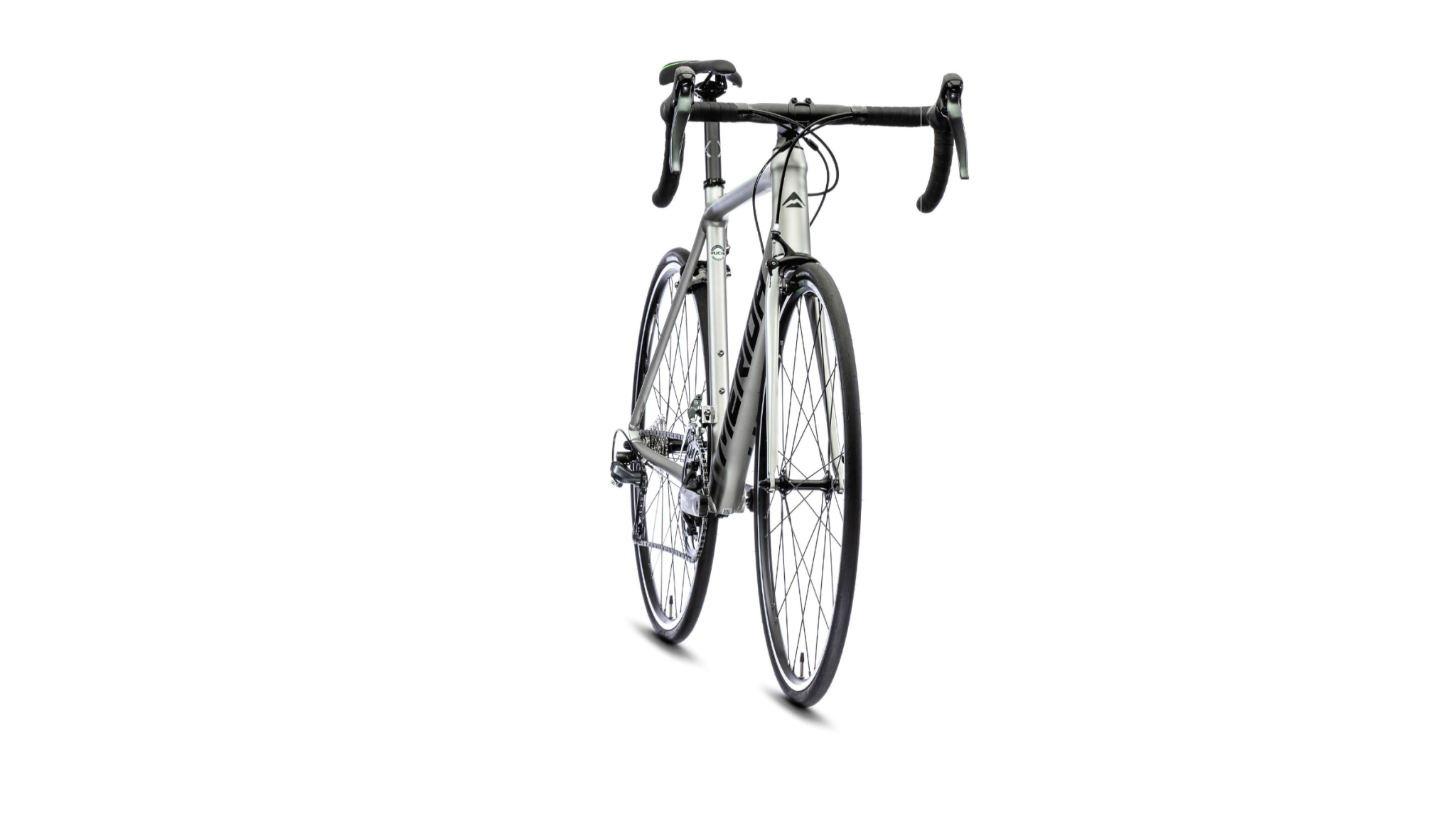

Merida Scultura 100 Claris Rim Brake Road Bike Silver
€975,00
In stock (1)
The Scultura has been the powerhouse of 4 generations of Merida sponsored or supported ProTour teams powering them to world tour stage victories. Read more
Information
The Scultura has been the powerhouse of 4 generations of Merida sponsored or supported ProTour teams powering them to world tour stage victories.The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. Â The tapered full carbon fork delivers precise steering.
- Frame: Lite BSA - 6066 triple butted and hydroformed aluminium with smooth welding. Â Tapered head tube. BSA BB standard, 9mm QR axle standard, Internal cable routing. Maximum tyre clearance 700 x 25c
- Fork: Scultura Rim CF2; carbon. Maximum tyre clearance 700 x 25c
- Headset: Merida M2341 Neck
- Stem: Merida Comp CC; 31.8mm diameter; -6 degree rise - Length : 70 mm-4S/3S, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
- Handlebar: Merida Expert SL
- Grip: Merida Road Comp
- Brake Type: Calliper
- Front Brake: Front: Dual Pivot calliper
- Rear Brake: Rear: Lee Chi ROAD Dual Pivot
- Tyres: Maxxis Pursuer; 700 x 25C; Kevlar bead; folding
- Wheel Size: 700c
- Rim: Merida Comp SL; 17mm inner rim width; 20mm profile Spokes: Black stainless
- Front Hub: Road seal bearing; 100x9mm; 24 Spoke; Quick Release
- Rear Hub: Road seal bearing; 130x9mm; 28 Spoke; Quick Release
- Speeds: 16
- Rear Derailleur: Shimano Claris; GS
- Shift Levers: Shimano Claris
- Chain: Sunrace CN-M84
- Cassette: Sunrace CS8; 11-28 teeth; 8 speed
- Chainset: FSA Tempo; 50-34 teeth chainwheel with 165mm - 4S/3S/XXS, 170mm - XS/S, 172.5mm - SM/ML, 175mm - L/XL length crank
- Bottom Bracket: FSA TH-7420ST Cartridge Bearing
- Pedals: Not included
- Saddle: Merida Comp SL; V-mount
- Seat Post: Merida Comp CC; 27.2mm diameter; 12mm lay back
