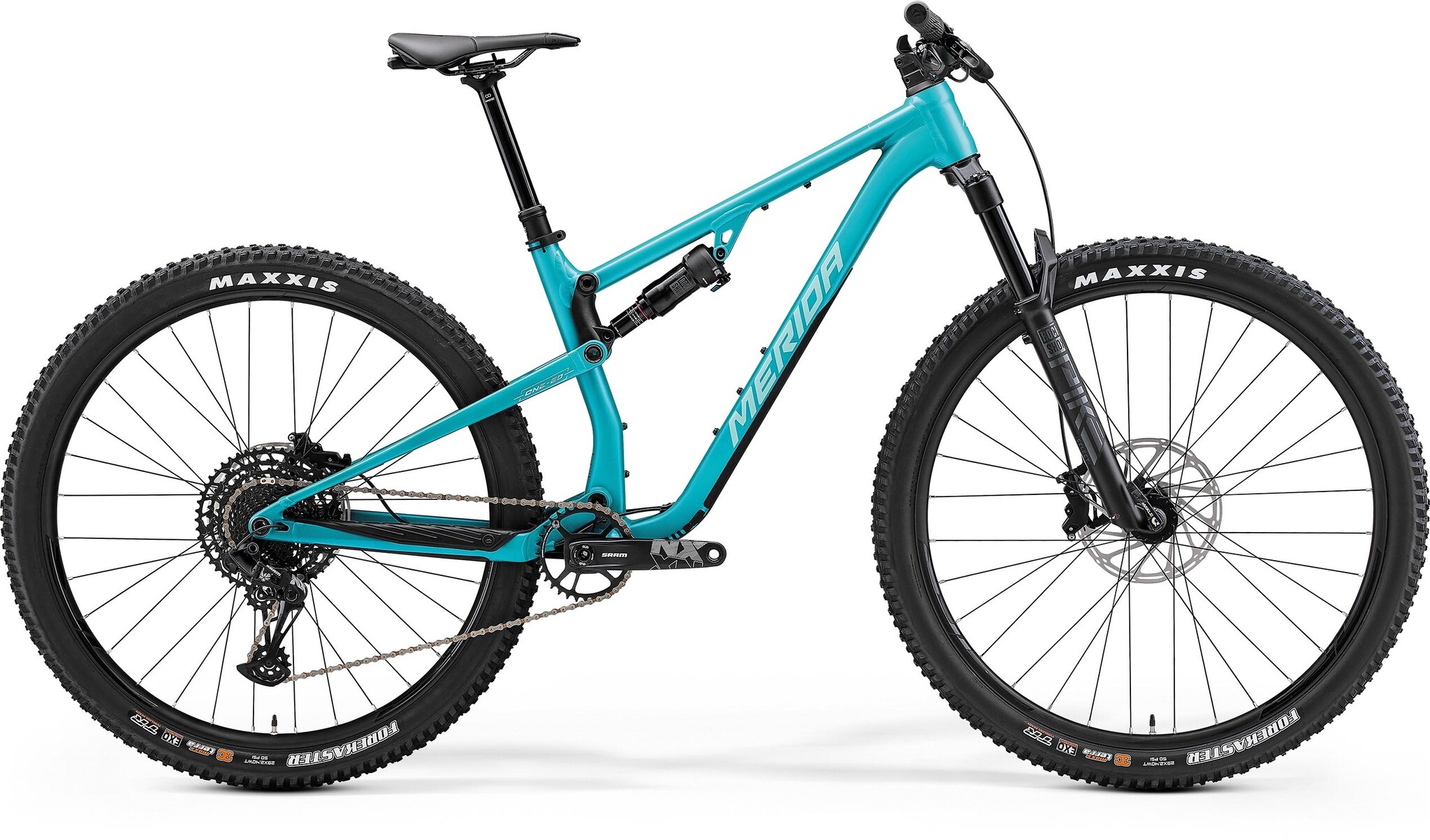

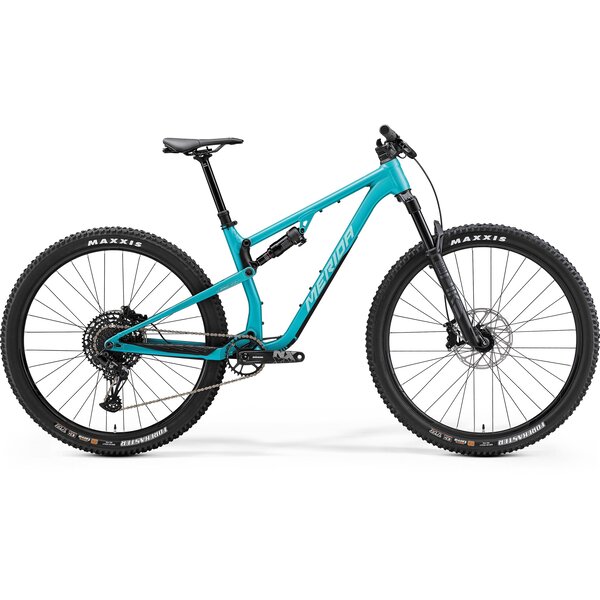

Merida One Twenty 700 Mountain Bike My24

Information

The One-Twenty is a hugely capable do everything bike, happy on day long XC rides or sessioning technical trails. At its heart is the same frame concept that Bike Radar / MBUK gave Merida double honours when they crowned the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year. The One-Twenty uses the same LITE aluminium frame as the One-Forty 700 with 130mm of suspension travel at both ends and adjusted geometry appropriate to the all rounder usage. Key numbers are a 66 degree head tube angle and 78.5 degree seat angle, The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up. Wire Port cable routing plus reliable threaded bottom bracket round out the package

• Frame: Lite Aluminium, Progressive trail geometry,agilometer sizing system, rattle free internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, max tyre size - 2.5"
• Rear Shock: RockShox Deluxe Select+; lockout
• Fork: RockShox PIKE Select; Air; 130mm ; Tapered; 44mm fork offset; platform; 29x2.X" max WHS
• Headset: Acros ICR Merida external neck; Upper and lower IPS sealing
• Stem: Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes
• Handlebar: Merida Expert TR II; aluminium; 780mm wide; 18mm rise
• Grip: Merida Comp EC
• Brake Type: Hydraulic disc
• Front Brake: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
• Rear Brake: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
• Tyres: Maxxis Forekaster; 29" x 2.4"; Kevlar bead, folding; TR EXO 3C MaxxTerra
• Wheel Size: 29"
• Rim: Merida Expert TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included)
• Front Hub: Novatec SL-Team D041SB-B15; 110x15mm; 32 spokes; 6 bolt
• Rear Hub: Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
• Speeds: 12
• Rear Derailleur: SRAM NX Eagle
• Shift Levers: SRAM NX
• Chain: SRAM SX Eagle
• Cassette: SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
• Chainset: SRAM NX Eagle DUB; 32 tooth chainset. Crank length: 170mm (XS,S), 175mm (M,L,XL)
• Bottom Bracket: SRAM DUB BSA 73mm wide
• Pedals: Not included
• Saddle: Proxim W400 STN with V-mount adapter; including Merida minitool
• Seat Post: Merida Expert TR II; 34.9mm diameter; 0mm lay back; XS/S: 150mm seat post travel - M: 170mm seat post travel - L/XL: 200mm seat post travel
