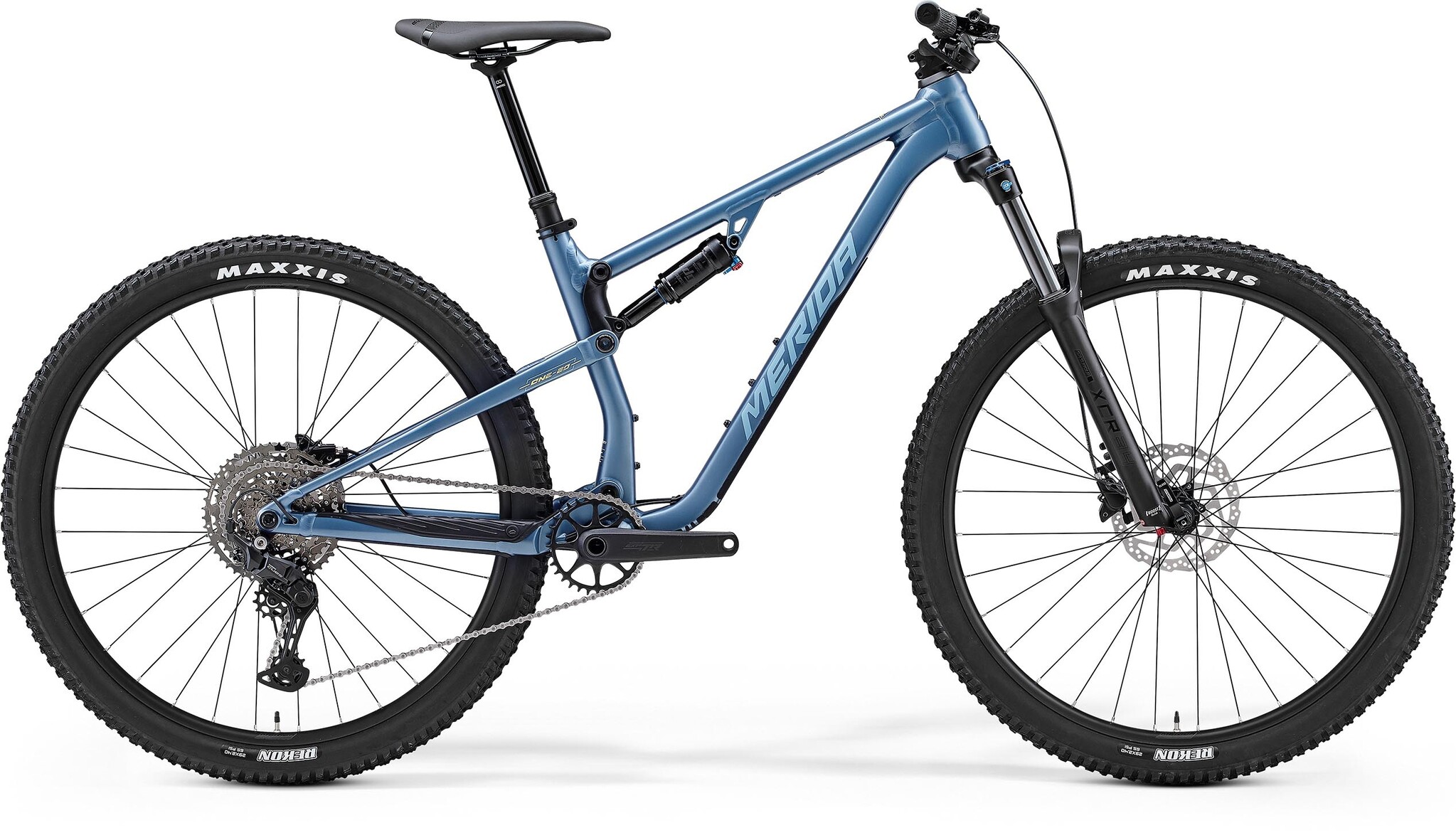

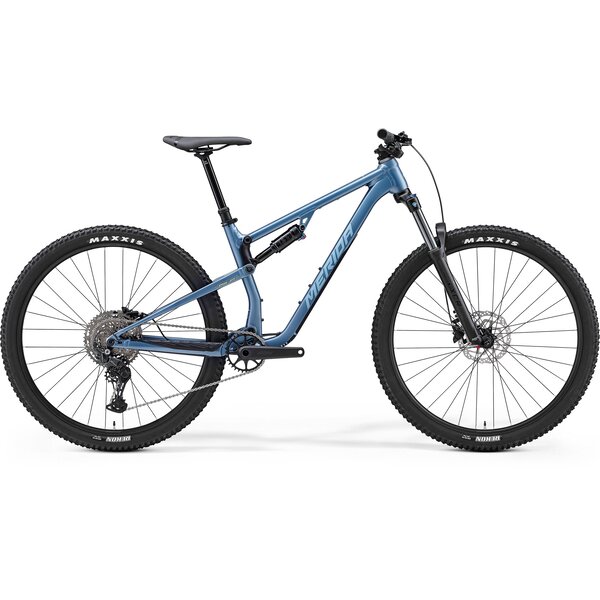

Merida One Twenty 300 Mountain Bike My24

Information

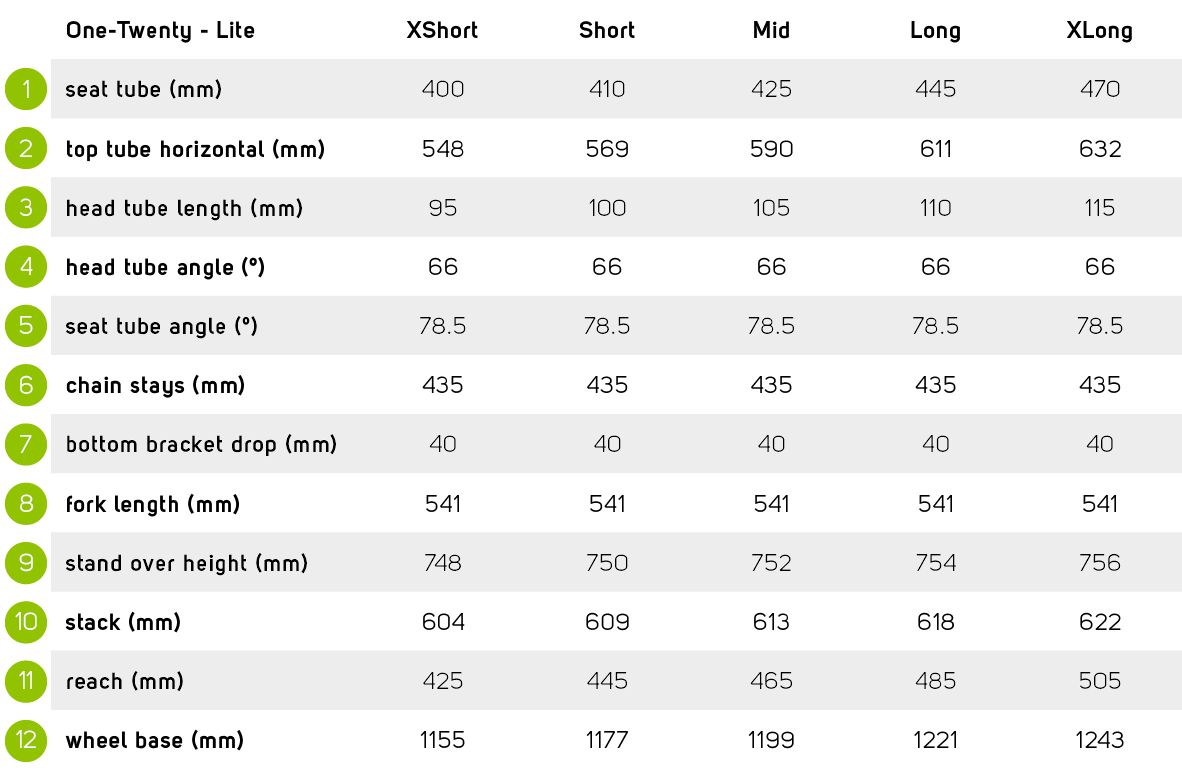

The One-Twenty is a hugely capable do everything bike, happy on day long XC rides or sessioning technical trails. At its heart is the same frame concept that Bike Radar / MBUK gave Merida double honours when they crowned the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year. The One-Twenty uses the same LITE aluminium frame as the One-Forty 700 with 130mm of suspension travel at both ends and adjusted geometry appropriate to the all rounder usage. Key numbers are a 66 degree head tube angle and 78.5 degree seat angle, The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up. Wire Port cable routing plus reliable threaded bottom bracket round out the package

• Frame: Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
• Rear Shock: SR Suntour Edge Plus 2CR; lockout
• Fork: Suntour XCR34 2CR; Air; 130mm travel; Tapered; lockout; 51mm fork offset; Max tyre size: 29" x 2.4"
• Headset: Acros ICR Merida external neck; Upper and lower IPS sealing
• Stem: Merida Expert TR; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes
• Handlebar: Merida Comp TR; aluminium; 780mm wide; 20mm rise
• Grip: Merida Comp EC
• Brake Type: Hydraulic disc
• Front Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
• Rear Brake: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
• Tyres: Maxxis Rekon; 29" x 2.4"; wire bead
• Wheel Size: 29"
• Rim: Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready
• Front Hub: Shimano TC500-B; 110x15mm; 32 spokes; Centerlock
• Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key
• Speeds: 10
• Rear Derailleur: Shimano CUES U6000; GS
• Shift Levers: Shimano SL-MT500-IL dropper lever and Shimano CUES U6000
• Chain: Shimano LG500
• Cassette: Shimano LG400; 11-48 teeth; 10 speed
• Chainset: Merida Expert TR; 32 tooth chainset. Crank length: 170mm (XS,S), 175mm (M,L,XL)
• Pedals: Not included
• Saddle: Merida Comp SL with V-mount
• Seat Post: Merida Expert TR II; 34.9mm diameter; 0mm lay back; XS/S: 150mm seat post travel - M: 170mm seat post travel - L/XL: 200mm seat post travel
